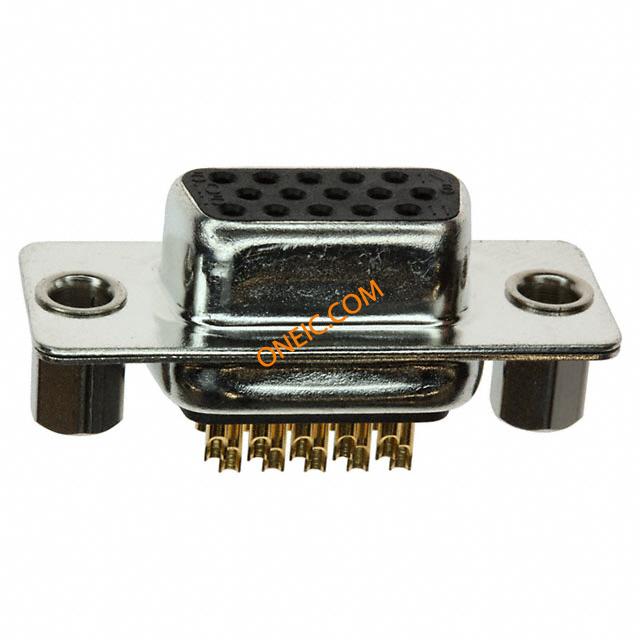

180-M15-203L021
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD Fem Sol Cup Machined Nickel CN2 CONN DB15 FMAL HD SLD CUP NICKEL |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 90 | Factory Pack Quantity | 90 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Black | Pitch | 2.29 mm |
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Brass | Connector Style | D-Sub, High Density |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Features | Shielded |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
