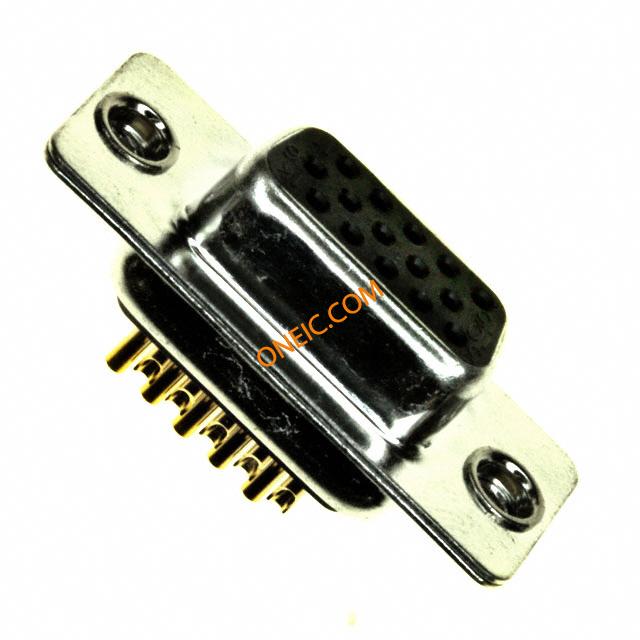

180-M15-203L011
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD Fem Sol Cup Machined Nickel CN1 CONN DB15 FMAL HD SLD CUP NICKEL |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 90 | Factory Pack Quantity | 90 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Number of Rows | 3 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Contact Material | Gold | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Female | Series | 180 |
| Features | Shielded | ||
Environmental
| Temperature Range | - 55 C to + 105 C | Operating Temperature | -55°C ~ 105°C |
