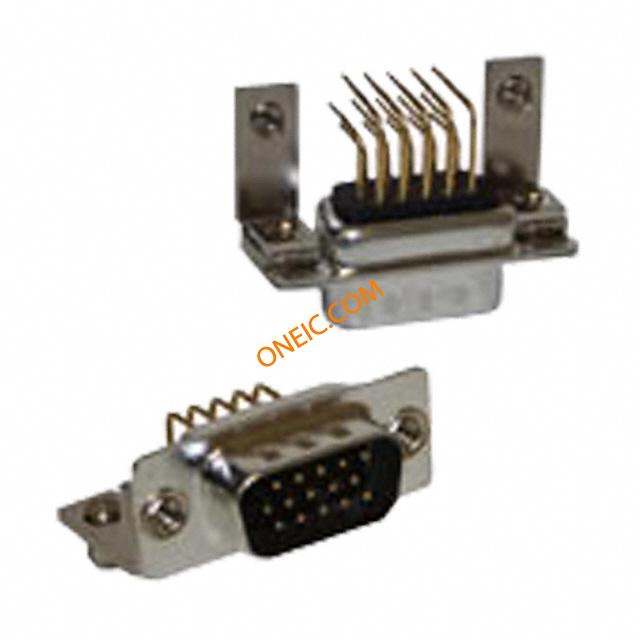

181-M15-213R141
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD Fem Vert Dip Machin Nickl W/Bdlck CONN DB15 FMAL HD SLD R/A NICKEL HD DSUB, SOCKET, R/A, THT, 15WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Pitch | 2.29 mm |
| Weight | 0.01 | Packaging | Tray |
| Shell Size | :DE | Termination | Solder |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Shell Material | Brass | Connector Style | D-Sub, High Density |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | :M-Series |
| Features | Board Lock, Shielded | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -55°C ~ 105°C |
