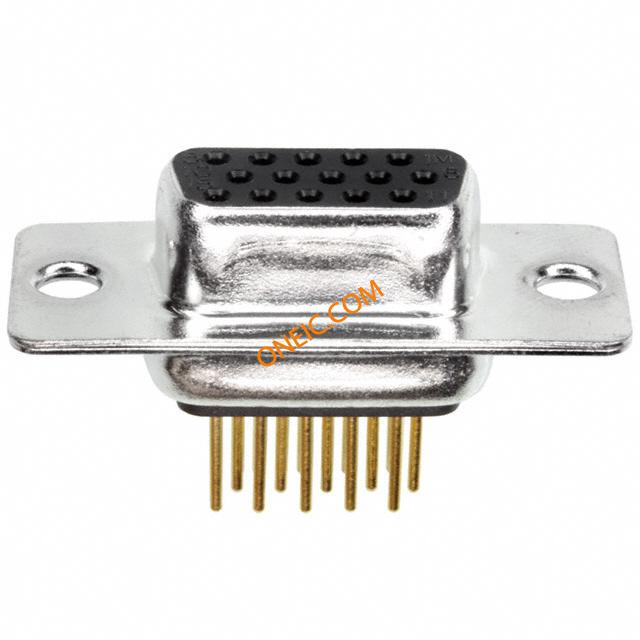

180-M15-213R001
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD Fem Vert Dip Machined Nickel CONN DB15 FMAL HD SLD DIP NICKEL HD DSUB, SOCKET, THT, 15WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Weight | 0.0055 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Material - Body | :Steel |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Female | Series | :M-Series |
| Features | Shielded | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -55°C ~ 105°C |
