45750-1112
| Manufacturer | |
| Description | Headers & Wire Housings MF PLUS HCS CRIMP TE RM. FEM 18-20 GA TIN female terminal, 18-20AWG, tin, loose Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, 18-20AWG, MINI-FIT HCS MF PLUS HCS CRIMP TERM. FEM 18-20 GA TIN MFPLUSHCSCRIMPTERM.FEM18-20GATIN Crimp socket 13 A Female 20...18 AWG, 45750-1112, Molex Molex Mini-Fit Plus 系列 母 压接接线端子, 压接, 镀锡触点 |
| Category |
Business
| Tradename | Mini-Fit HCS | Part # Aliases | 0457501112 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 8000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600 V | Contact Resistance | :10mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 13 A |
Mechanical
| Length | 14.83 mm | Weight | 0.00015 |
| Packaging | Bag | Insulation | Not Insulated |
| Wire Gauge | 20-18 | Termination | Crimp |
| Contact Size | :18 | Contact Finish | Tin |
| Contact Material | Copper, Nickel, Silicon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Contact Termination | :Crimp |
| Wire Gauge or Range - AWG | :20AWG | ||
Product Info
| Gender | Female | Series | 45750 |
| Product Type | Contacts | For Use With/Related Products | :5557 Jr., 30067 TPA, 42474 BMI Panel Mount, 43760, 44516 BMI Panel Mount Slide-N-Lock |
Environmental
| Mating Cycles | :75 | Operating Temperature | :105°C |
Documents & Media
Similar Parts
63819-0900
molex
Connector Accessories Hand Crimp Tool Crimpers MOLEX CRIMP TOOL Hand Tool MiniFit 5556/58 16-28 AWG Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG CRIMP TOOL, MINI FIT, 16-24AWG CRIMP TOOL; 24-18awg Crimping pliers, 63819-0900, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于24 → 16 AWG 线规格
45750-1111
Molex
Headers & Wire Housings MF PLUS HCS CRIMP TE Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Molex Mini-Fit Plus 系列 母 压接接线端子, 压接, 镀锡触点
39-01-2100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
39-01-2080
Molex Connector Corporation
CONN RECEPT 8POS DUAL 8 way receptacle,Mini-Fit Jr Headers & Wire Housings 8 CKT RCPT HOUSING Conn Housing RCP 8 POS 4.2mm Crimp ST Bag RECEPTACLE, 8WAY, CRIMP, MINI-FIT PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 母 压接连接器外壳
39-01-2065
Molex Connector Corporation
CONN RECEPT 6POS DUAL 6 way receptacle,Mini-Fit Jr,dual row Headers & Wire Housings 6 CKT RCPT HOUSING Conn Housing F 6 POS 4.2mm Crimp ST Cable Mount Bag RECEPTACLE, MINI-FIT, DUAL ROW, 6WAY Housing, Receptacle; PA Polyamide (Nylon) 6/6; 2; Female; 0.165 in.; UL 94V-0 Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路 直 母 压接连接器外壳
39-01-2060
Molex
6 way receptacle,Mini-Fit Jr Headers & Wire Housings 6 CKT RCPT HOUSING Conn Housing RCP 6 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 6WAY, CRIMP RECEPTACLE HOUSING; 94V-2; 6 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路 直 母 压接连接器外壳
39-01-2120
Molex
12 way receptacle,Mini-Fit Jr Headers & Wire Housings 12 CKT RCPT HOUSING Conn Housing RCP 12 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 12WAY RECEPTACLE HOUSING; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 母 压接连接器外壳
39-01-3028
Molex
Housing 4.20mm Dual row receptacle,2w Headers & Wire Housings RECEPT 2P 94V-0 side tabs Conn Housing RCP 2 POS Crimp ST Cable Mount Bag HOUSING, RCPT , DUAL ROW, 2WAY, CRIMP Conn; Rect; Socket Hsg; 4.20mm Pitch; 2Cir; Dual; Mini-Fit Jr; Nylon Crimp housing Pitch4.2 mm Poles 2 x 1 Mini-Fit Jr, 39-01-3028, Molex Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 2 路 直 母 电缆安装 压接连接器外壳

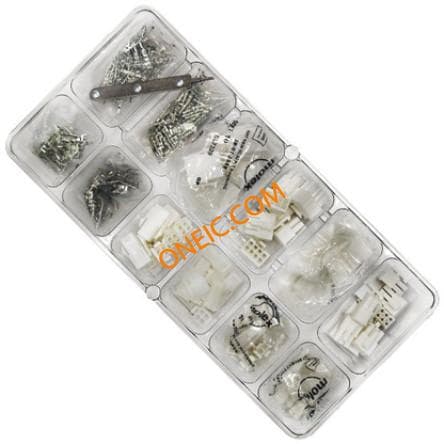

76650-3012
