39-01-2080
| Manufacturer | |
| Description | CONN RECEPT 8POS DUAL 8 way receptacle,Mini-Fit Jr Headers & Wire Housings 8 CKT RCPT HOUSING Conn Housing RCP 8 POS 4.2mm Crimp ST Bag RECEPTACLE, 8WAY, CRIMP, MINI-FIT PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039012080 5557-08R |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 3500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Dielectric Strength | :1500V/m |
| Current Rating (Max) | 13 A | ||
Mechanical
| Color | :Natural | Depth | 19.6mm |
| Pitch | 4.2mm | Width | 15.1mm |
| Length | 18mm | Weight | 0.0172 |
| Material | :Clear nylon | Body Material | :PA Polyamide (Nylon) |
| Mounting Type | Straight | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Number of Positions | :8 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | Female | Series | 5557 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Mini-Fit Jr. Receptacle | ||
Documents & Media
Similar Parts

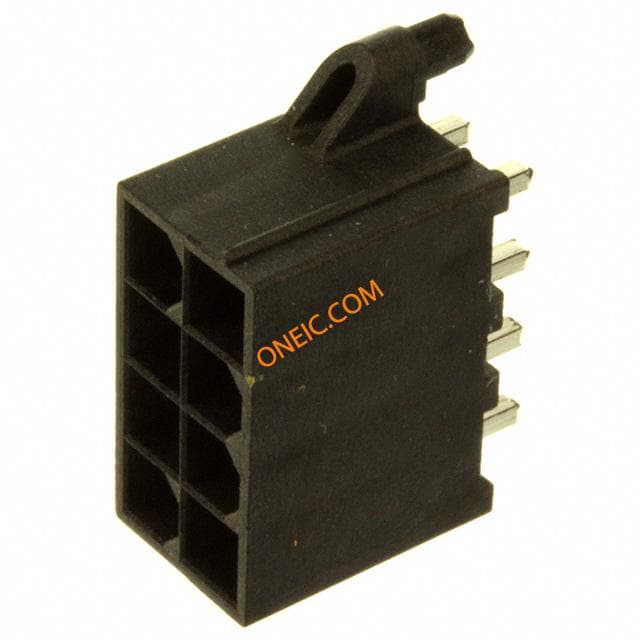

46207-0008
molex
Conn Wire to Board HDR 8 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 8POS 4.2MM VERT TIN Molex 46207 Series 4.2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MINIFIT RTC HDR 8P DR V TIN .062 Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Tray Molex MINI-FIT JR. 系列 4.2mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
39-00-0079
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,4.2mm,female,16 AWG,reel Headers & Wire Housings SOCKET 16 AWG REEL TERMINAL, 16AWG, MINI-FIT CONTACT, CRIMP, SOCKET, 16AWG, MI CONTACT, CRIMP, RECEPTACLE, 16AWG, REEL Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
39-30-0080
molex
Conn Wire to Board HDR 8 POS 4.2mm Solder RA Thru-Hole Bag 4.20mm,housing,MiniFit,plug,90°,DR,8w Headers & Wire Housings 8 CKT R/A HEADER Conn Power HDR 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Bag HEADER, RIGHT ANGLE, DUAL ROW, 8 WAY Nylon Header; 600 V; 8; 2; 0.165 in.; 1500 VAC; 7 A; 10 milliohms (Min.); Brass Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直角 公 通孔 压接连接器外壳

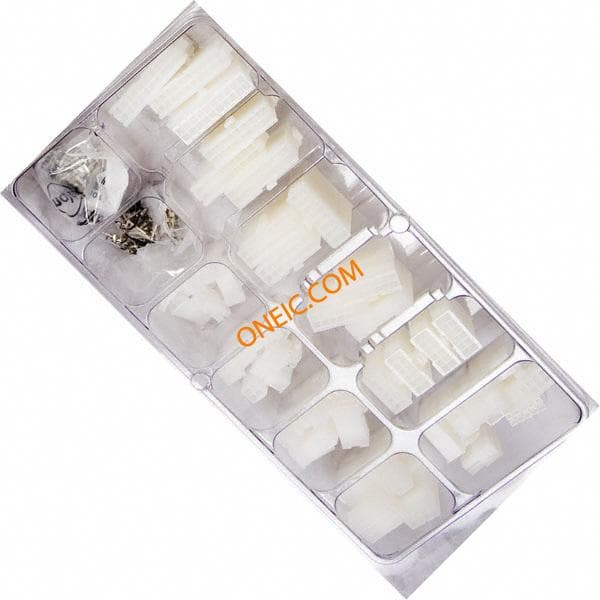

76650-0017
molex
Free Hanging Plug And Receptacle, 3-9 A 250V KIT CONN MINI-FIT JR 4.20MM Headers & Wire Housings MINI-FIT JR CONN KIT .062 PLG/REC 282PCS MINI-FIT JR. PWR CONNECTOR KIT FREE HANGING PLUG & RECEPT, 3-9 A 250V
46015-0803
molex
Conn Wire to Board HDR 8 POS 4.2mm Solder ST Thru-Hole Tray Molex 46015 Series 4.2mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MF+ HCS VERT HDR DR 8CKT V-0 PEG TIN 4.20mm Pitch Mini-Fit® Plus HCS Header, Dual Row, Vertical, 8 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, ... 4.20mm Pitch Mini-Fit® Plus HCS Header, Dual Row, Vertical, 8 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-0, Tin (Sn) 1.27µm Over Nickel (Ni) Plating HEADER, MINI-FIT HCS, 8WAY Male header Pitch4.2 mm Poles 2 x 4 Mini-Fit® Plus HCS, 46015-0803, Molex Molex Mini-Fit Plus 系列 4.2mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
39-01-3089
molex
Conn Housing M 8 POS 4.2mm Crimp ST Cable Mount Bag 4.20mm,housing,MiniFit,plug,nylon,DR,8w Headers & Wire Housings 8 CKT PLUG HOUSING PLUG AND SOCKET CONNECTOR HOUSING PLUG HOUSING-FREE HANGING; 94V-0; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 公 压接连接器外壳
76650-0163
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT

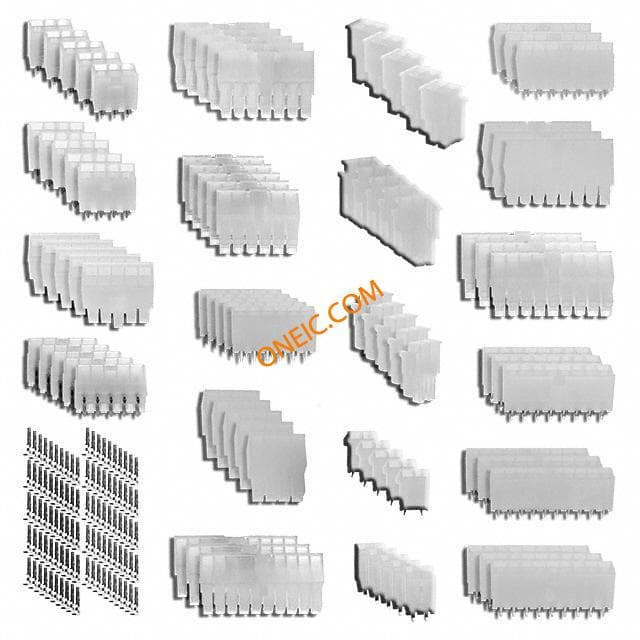

76650-0015
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR KIT WTB COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:182 MINI-FIT JR. PWR CONNECTOR KIT VERT HEADER & RECEPT
1586493-8
TE Connectivity / AMP
Headers & Wire Housings 08P DUAC 94V0 W/PEG WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 8POS VERT PCB TIN Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

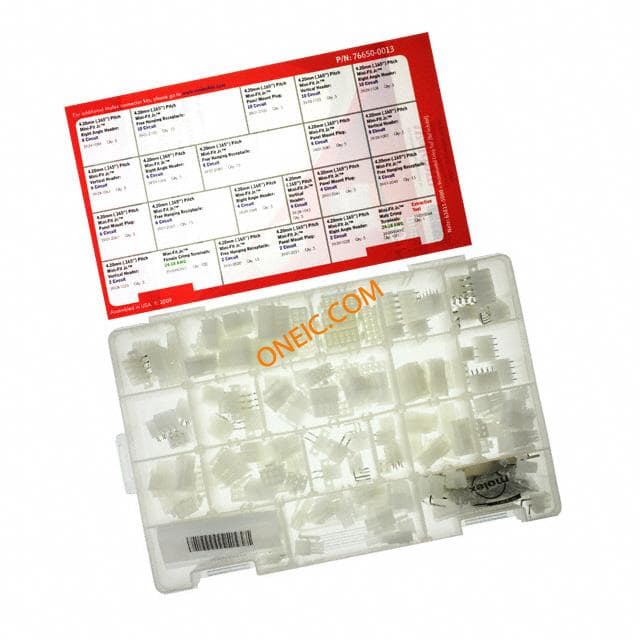

76650-0013
