39-01-3048
| Manufacturer | |
| Description | Housing 4.20mm Dual row receptacle,4w Headers & Wire Housings 4 CKT RCPT HOUSING Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag HOUSING, RCPT , DUAL ROW, 4WAY, CRIMP MINIFITJRRCPTDRV0SIDETABS4CKT Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039013048 5557-04R1-210 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 6500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 12 A, 8 A |
Mechanical
| Pitch | 4.2mm | Length | 11.6mm |
| Weight | 0.00112 | Material | :Nylon |
| Wire Gauge | 20-16 | Mounting Type | Straight |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Natural |
| Number of Contacts | 4 | Number of Positions | :4 |
Product Info
| Gender | Female | Series | 5557 |
| CAD Drawing | 3D CAD Model | Manufacturer | Mini-Fit Jr./5557 Series |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | Mini-Fit Jr. Receptacle |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
46015-0403
molex
Conn Wire to Board HDR 4 POS 4.2mm Solder ST Thru-Hole Tray Molex 46015 Series 4.2mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MF+ HCS VERT HDR DR 4CKT V-0 PEG TIN 4.20mm Pitch Mini-Fit® Plus HCS Header, Dual Row, Vertical, 4 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, ... 4.20mm Pitch Mini-Fit® Plus HCS Header, Dual Row, Vertical, 4 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-0, Tin (Sn) 1.27µm Over Nickel (Ni) Plating HEADER, MINI-FIT HCS, 4WAY Male header Pitch4.2 mm Poles 2 x 2 Mini-Fit® Plus HCS, 46015-0403, Molex Molex Mini-Fit Plus 系列 4.2mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
39-00-0078
molex
Contact SKT Crimp ST Cable Mount Bag Standard receptacle contact,16 awg Headers & Wire Housings SOCKET 16 AWG BULK CRIMP SOCKET, 16AWG, PK100 CONTACT, SOCKET, 16AWG, CRIMP Mini-Fit Crimp Terminal 5556, 16 AWG, Bag, Brass, Tin (Sn) Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
39-30-0040
Molex Connector Corporation
CONN HEADER 4POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 4 Way 2 Row Right Angle PCB Header, Solder Termination, 8A Headers & Wire Housings 4 CKT R/A HEADER Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Bag HEADER, MINI-FIT, R/A, DUAL ROW, 4WAY Conn; Rect; Header; 4.20mm; PCB; 4 Cir; Dual; Rt Angle; MiniFit Jr; w/Peg; Tin Molex MINI-FIT JR. 系列 4路 4.2mm节距 (2排) 直角 PCB 针座 , 焊接端接, 8A, 通孔
39301040
MOLEX
HEADER, MINI-FIT, DUAL ROW, R/A, 4 WAY 04P MINI-FIT HEAD 2R W PEGS 90°

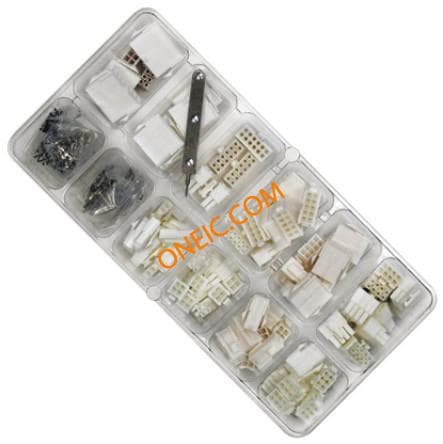

76650-3011
Molex
Mini-Fit Jr connector kit UL94V-0 WtW

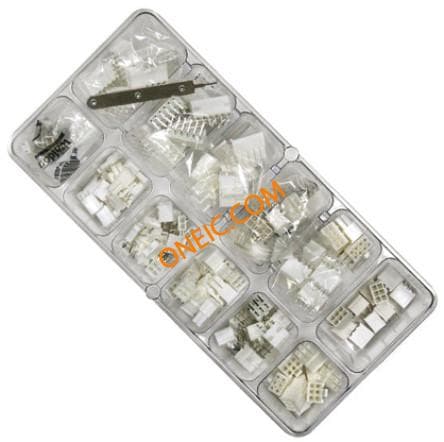

76650-3009
