39-01-2100
| Manufacturer | |
| Description | Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039012100 5557-10R |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-2 |
Electrical
| Voltage Rating | 600 V | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Dielectric Strength | :1500V/m |
| Current Rating (Max) | 13 A | ||
Mechanical
| Color | :Natural | Depth | 19.6mm |
| Pitch | 4.2 mm | Width | 15.1mm |
| Length | 22.2mm | Weight | 0.002 |
| Material | :Clear nylon | Body Material | :PA Polyamide (Nylon) |
| Mounting Type | Straight | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 10 | Number of Positions | :10 |
Product Info
| Type | Housing | Gender | RCP |
| Series | 5557 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | Mini-Fit Jr. Receptacle |
Documents & Media
Similar Parts
46018-1541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Mini-Fit® High Cycle female Crimp terminal, 18-20 AWG Reeled
39-00-0079
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,4.2mm,female,16 AWG,reel Headers & Wire Housings SOCKET 16 AWG REEL TERMINAL, 16AWG, MINI-FIT CONTACT, CRIMP, SOCKET, 16AWG, MI CONTACT, CRIMP, RECEPTACLE, 16AWG, REEL Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
46018-2541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CRIMP SKT, MF PLUS HMC, 22-24 AWG Mini-Fit® High Cycle female Crimp terminal, 22-24 AWG Reeled
76650-0163
molex

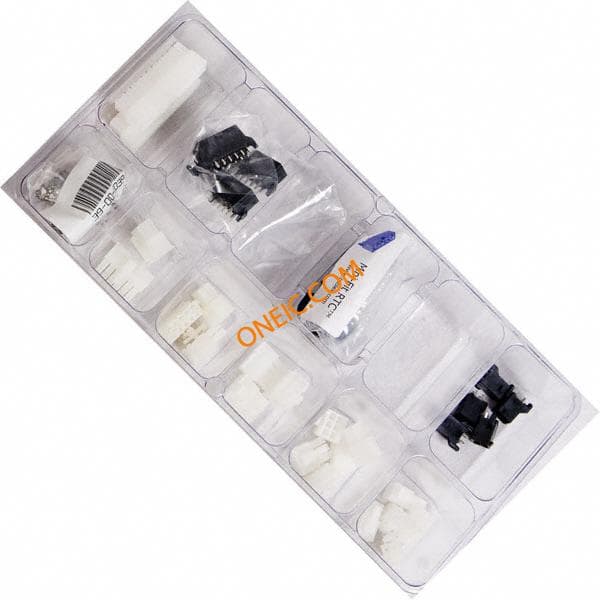

COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT
76650-0015
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR KIT WTB COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:182 MINI-FIT JR. PWR CONNECTOR KIT VERT HEADER & RECEPT
39-01-2100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
1-794954-0
te connectivity / amp
Conn Housing RCP 10 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 10POS FREE HANGING 10 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 10P Conn Housing RCP 10 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE HOUSING, 94V-2, 10WAY Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Female crimp housing Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-794954-0, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳 10P RCPT VAL-U-LOK V2
76650-0013
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR DELUX KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, ... Kit Description:Vertical and Right Angle Header Plug and ReceptacleKit Category:Wire to Wire and Wire to BoardSolution:PowerPackaging:Tackle Box: 11" by 7.25"Num. Pieces:351 MINI-FIT JR. DELUXE PWR CONNECTOR KIT VERT & RT ANGLE HEADER PLUG & RECEPT
1-1586041-0
te connectivity / amp

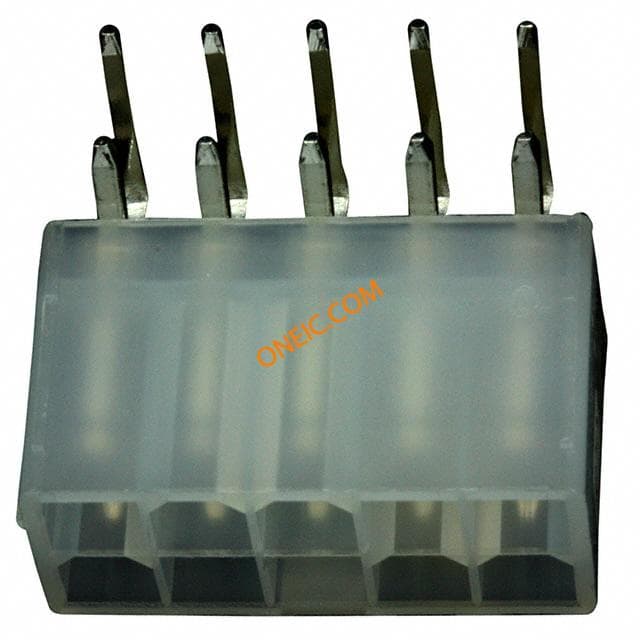

Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 10POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 10P Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 10UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,10POS,DUALROW,UL94V-2,W/OPEGS Male connector 90° Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-1586041-0, TE Connectivity 10P VAL-U-LOK R/A HDR V2
