39-01-2120
| Manufacturer | |
| Description | 12 way receptacle,Mini-Fit Jr Headers & Wire Housings 12 CKT RCPT HOUSING Conn Housing RCP 12 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 12WAY RECEPTACLE HOUSING; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039012120 5557-12R |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Dielectric Strength | :1500V/m |
| Current Rating (Max) | 13 A | ||
Mechanical
| Depth | 19.6mm | Pitch | 4.2mm |
| Width | 15.1mm | Length | 26.4mm |
| Weight | 0.0247 | Material | :Clear nylon |
| Mounting Type | Straight | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Number of Positions | :12 |
Product Info
| Gender | Female | Series | 5557 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Mini-Fit Jr. Receptacle | ||
Documents & Media
Similar Parts
46018-1541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Mini-Fit® High Cycle female Crimp terminal, 18-20 AWG Reeled
76650-0163
molex

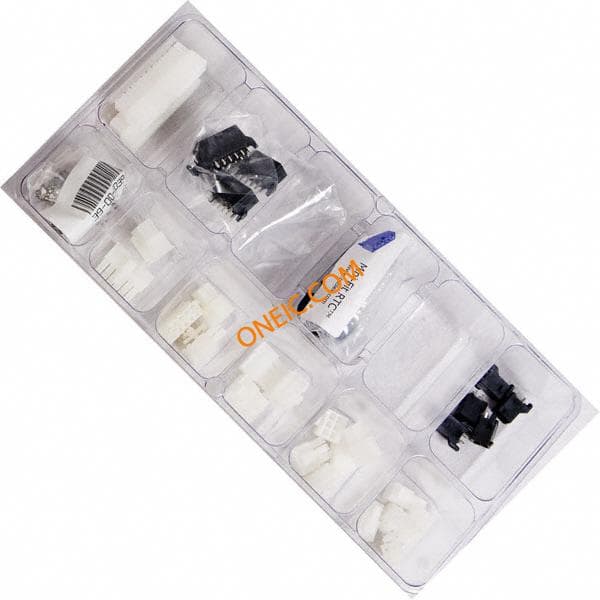

COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT
39-01-2126
Molex Connector Corporation
CONN PLUG 12POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, DUAL ROW, PNL MT, 12WAY PLUG HOUSING-PANEL MOUNT; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-30-0120
Molex Connector Corporation
CONN HEADER 12POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 6A Headers & Wire Housings 12 CKT R/A HEADER Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag HEADER, MINI-FIT, R/A, DUAL ROW, 12WAY Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 6A , 通孔
39-28-8120
Molex Connector Corporation
CONN HEADER 12POS 4.2MM VERT TIN Molex 5566 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 6A Headers & Wire Housings 12 CKT VERT HEADER Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag HEADER, MINI-FIT, DUAL ROW, 12WAY Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 6A , 通孔
46207-0012
Molex Connector Corporation

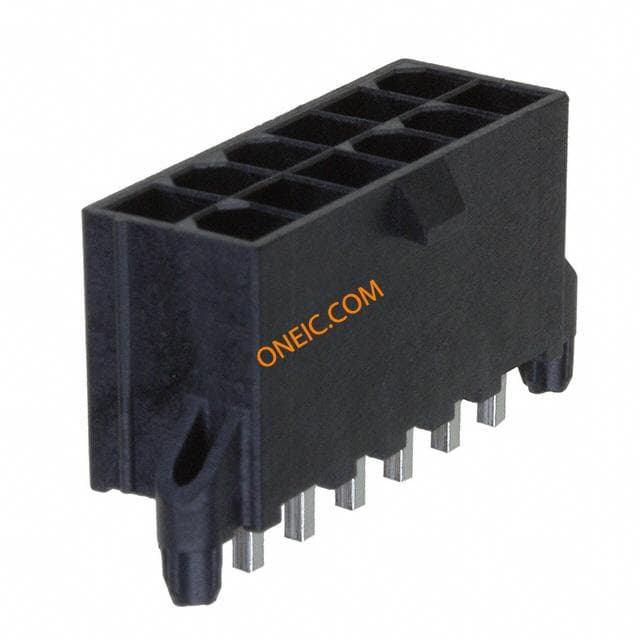

CONN HEADER 12POS 4.2MM VERT TIN Molex 46207 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MINIFIT RTC HDR 12P DR V TIN .062 Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
46015-1203
Molex
Molex 46015 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 11A Headers & Wire Housings MF+ HCS VERT HDR DR 12CKT V-0 PEG TIN Male header Pitch4.2 mm Poles 2 x 6 Mini-Fit® Plus HCS, 46015-1203, Molex Molex Mini-Fit Plus 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 11A , 通孔
76650-3009
Molex
Mini-Fit Jr connector kit UL94V-0 WTB KIT, MINI-FIT JR, 4.2MM, 251PCS Molex MINI-FIT JR. 系列 线对板套件 , 内含插座、通孔直角管座、通孔垂直管座 x 251
39-01-2120
Molex
12 way receptacle,Mini-Fit Jr Headers & Wire Housings 12 CKT RCPT HOUSING Conn Housing RCP 12 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 12WAY RECEPTACLE HOUSING; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 母 压接连接器外壳
76650-3001
Molex

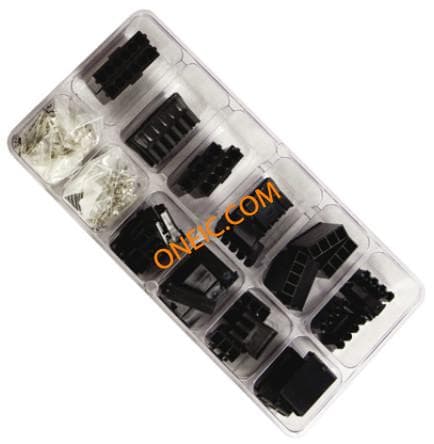

Mini-Fit Sr. Power Connector Kit Design kit Mini-Fit Sr, 76650-3001, Molex Molex MINI-FIT SR. 系列 连接器套件
