90327-0320
| Manufacturer | |
| Description | CONN RECEPT IDT 20POS 1.27MM TIN 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT SN Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 20WAY Female connector 20P, 90327-0320, Molex Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903270320 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90327 Series | Voltage Rating | 250 V |
| Contact Resistance | :10mohm | Voltage - Breakdown | :750V |
| Current Rating (Max) | 1.2A | Contact Rating (Current) | :1.2A |
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Width | :24.13mm | Weight | 0.0115 |
| Material | :Polyester | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Number of Rows | 2 |
| Material Finish | :- | Contact Material | Phosphor Bronze |
| Housing Material | PET | Cable Termination | IDC |
| Termination Style | IDC | Color - Connectors | :White |
| Number of Contacts | 20 | Contact Termination | :IDC / IDT |
| Number of Positions | 20 | Contact Finish Thickness | 78.7µin (2.00µm) |
| Wire Gauge or Range - AWG | :28AWG | 1st Connector Mounting Type | :Cable |
Product Info
| Gender | Female | Series | 90327 |
| Features | Feed Through | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
0903250020
molex
Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 20POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 20; tinned; 1.2A
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex

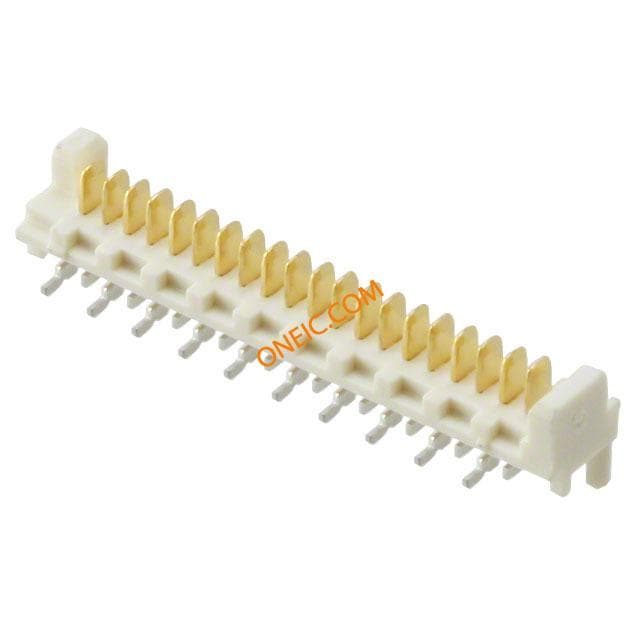

Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
0908143820
molex

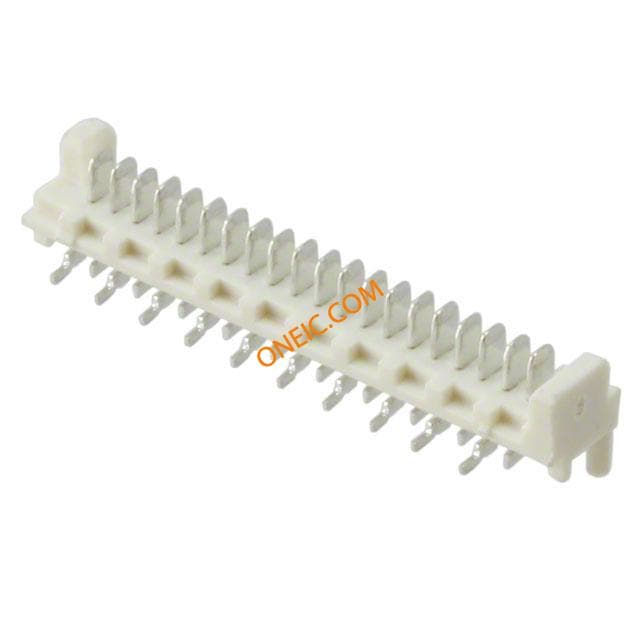

Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20PS 1.27MM SMD GOLD
70247-2051
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
70247-2052
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex
70246-2002
molex

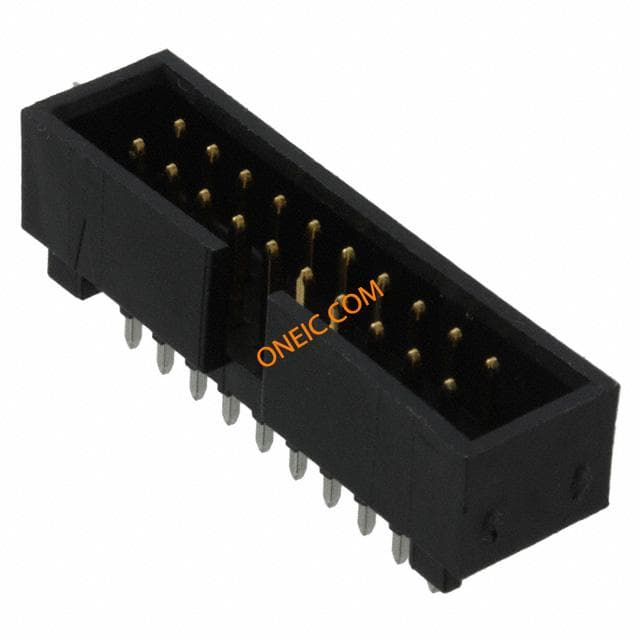

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 20POS .100 VERT GOLD Headers & Wire Housings 20CKT SHRD HDR
0908140820
Molex
Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20POS 1.27MM SMD TIN
90325-9020
molex

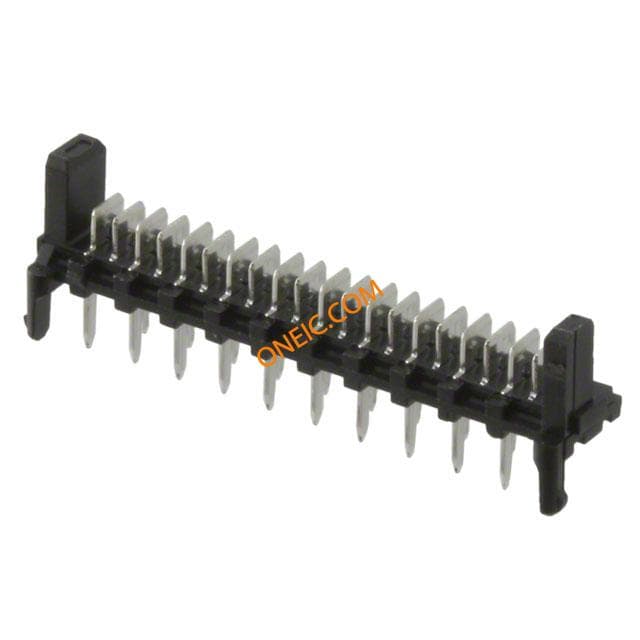

Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 20POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 20P HDR SN R/A LP W/PCB PEGS
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584
90325-7020
Molex Connector Corporation

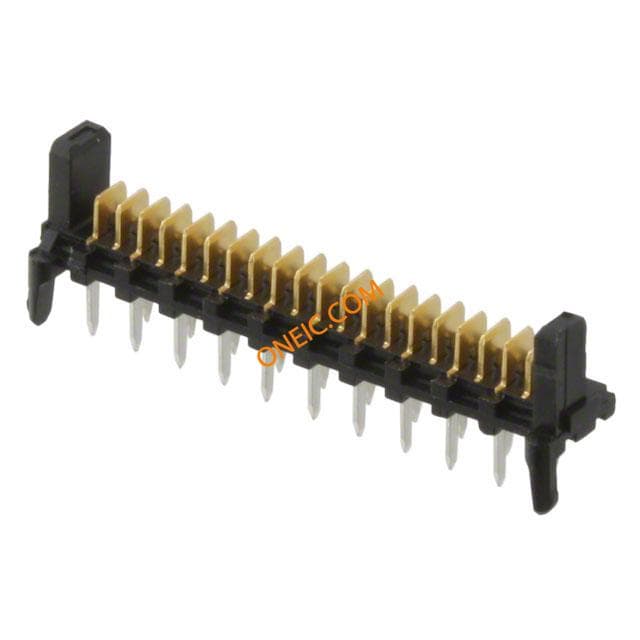

CONN HEADER 20PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 20P HDR AU R/A LP W/PCB PEGS
70246-2001
Molex Connector Corporation

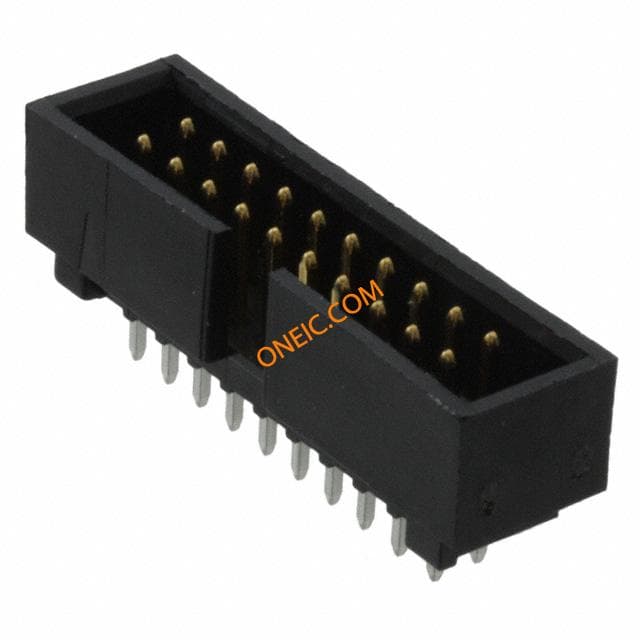

CONN HEADER 20POS .100 VERT GOLD Molex 70246 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 2.5A Headers & Wire Housings 20CKT SHRD HDR Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray PCB header 2 x 10P, 70246-2001, Molex Molex C-Grid 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 2.5A , 通孔
