70247-2051
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating |
| Category |
Business
| Tradename | C-Grid | Part # Aliases | 0702472051 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 576 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Through Hole | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 70247 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0903270384
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
0903270386
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
90327-3320
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 20POS 1.27MM GOLD 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器
15-44-3210
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 20POS .100 VERT PCB
15-45-1310
Molex
Headers & Wire Housings PCB CONN DUAL 20P CONN RECEPT 20POS .100 VERT PCB
39-51-2203
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
15-44-4510
Molex
Headers & Wire Housings Obsolete CONN RECEPT 20POS .100 VERT PCB
39-51-2204
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
0903273384
Molex
Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0022552202
Molex
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 20POS .100
0015445820
Molex

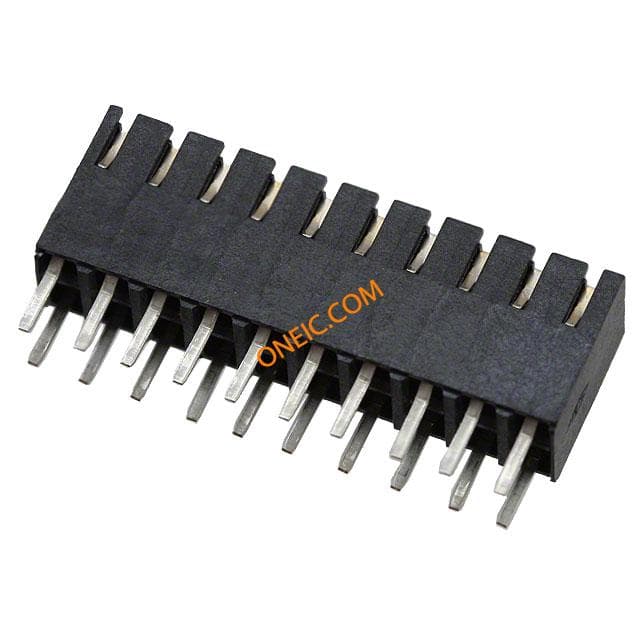

Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Tray RCPT VERT GOLD 20CKT T/H
