0908143820
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20PS 1.27MM SMD GOLD |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 | Current Rating (Max) | 1.2/Contact |
| Voltage - Input (Min) | 250VDC|250VAC | ||
Mechanical
| Color | Natural | Depth | 6.9 |
| Pitch | 0.050" (1.27mm) | Height | 5.15 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Blade Pin | Housing Color | Beige |
| Mounting Type | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon 4/6 |
| Length - Overall | 29.18 | 1st Contact Gender | HDR |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Length - Mating | 0.085" (2.15mm) | Contact Finish Thickness | 24µin (0.60µm) |
Product Info
| Type | Ribbon Cable Connector | Features | Board Guide |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0903270384
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
0903270386
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT

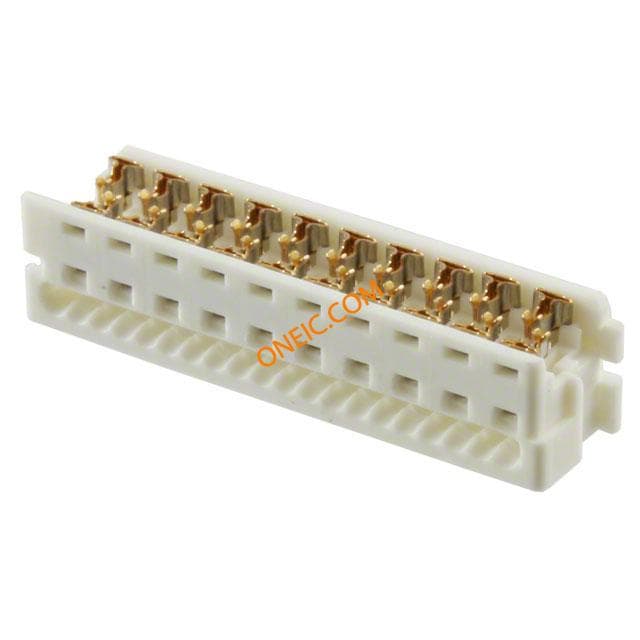

90327-3320
