70247-2052
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY |
| Category |
Business
| Tradename | C-Grid | Part # Aliases | 0702472052 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 72 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - C-Grid 70247 Series | Voltage Rating | 250 V |
| Current Rating (Max) | 2.5 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.001 | Packaging | Tray |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 20 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 20 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 70247 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0903270384
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
0903270386
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
90327-3320
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 20POS 1.27MM GOLD 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器
15-44-3210
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 20POS .100 VERT PCB
15-45-1310
Molex
Headers & Wire Housings PCB CONN DUAL 20P CONN RECEPT 20POS .100 VERT PCB
39-51-2203
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
15-44-4510
Molex
Headers & Wire Housings Obsolete CONN RECEPT 20POS .100 VERT PCB
39-51-2204
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
0903273384
Molex
Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0022552202
Molex
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 20POS .100

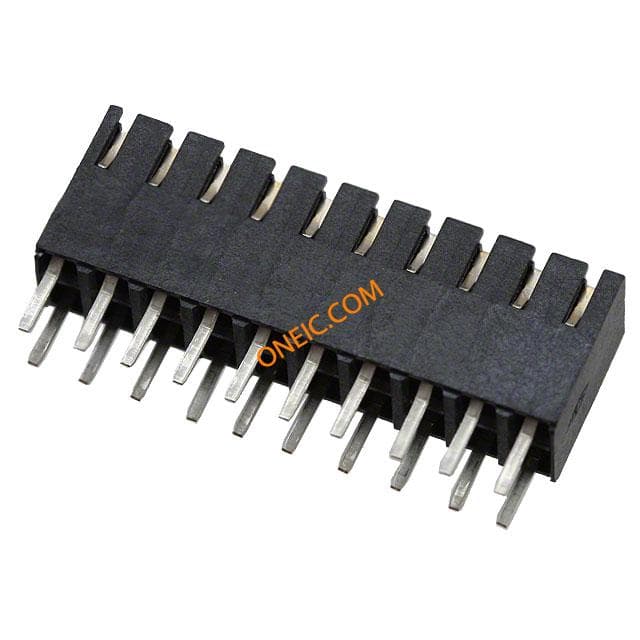

0015445820
