90325-0020
| Manufacturer | |
| Description | Header 1.27mm, RA, low pro,20w,pcb peg Headers & Wire Housings PICOFLEX 20P HDR LOPRO SN Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Bag HEADER, PICOFLEX, 20WAY Straight header 20P, 90325-0020, Molex Molex PICOFLEX 系列 20路 1.27mm节距 通孔 公 IDC 连接器 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Picoflex | Part # Aliases | 0903250020 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 1200 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90325 Series | Voltage Rating | 250 V |
| Voltage - Working | :250V | Contact Resistance | :10mohm |
| Voltage - Breakdown | :750V | Current Rating (Max) | 1.2A |
Mechanical
| Pitch | 1.27mm | Width | :24.13mm |
| Weight | 0.0078 | Material | :Polyester |
| Wire Gauge | :26AWG | Termination | Through Hole |
| Lead Spacing | :1.27mm | Mounting Type | Straight |
| Contact Finish | Tin over Nickel | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | PBT |
| Termination Style | Through Hole | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Mounting Panel Thickness | :27.73mm | Wire Gauge or Range - AWG | :28AWG |
Product Info
| Type | Unshrouded | Gender | Male |
| Series | 90325 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
PDF Document
Similar Parts
92315-2010
Molex
Cable Assemblies 20CKT PF-50 IDT-IDT 0.10M LENGTH Ribbon Cables / IDC Cables 20CKT PF-50 IDT-IDT 0.10M LENGTH CABLE ASSEMBLY, FLAT, 20WAY, 100MM
$27.1800
Details

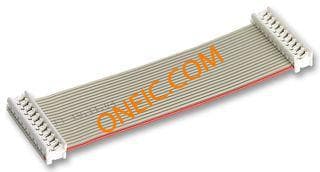

92315-2015
