15-06-0140
| Manufacturer | |
| Description | CONN RECEPT 14POS W/PANEL MOUNT 14w D/R BMI receptacle housing Headers & Wire Housings RECPT DUAL ROW 14POS w/panel mount ears Conn Housing RCP 14 POS 4.2mm Crimp ST Bag HOUSING, 4.20MM, 14WAY MINIFIT JR BMI PMRCPT 14 pos with panelmount ears MINIFITJRBMIPMRCPT14poswithpanelmountears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015060140 42474-1411 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Number of Outputs | 14 | Current Rating (Max) | 11 A, 6 A |
Mechanical
| Color | Natural | Depth | 19.6mm |
| Pitch | 0.165" (4.20mm) | Width | 17.3mm |
| Length | 61.2mm | Weight | 0.054 |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 2 |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 14 |
| Contact Termination | Crimp | Number of Positions | 14 |
Product Info
| Note | Contacts Not Provided | Type | Receptacle Panel Mount |
| Gender | Female | Series | 42474 |
| CAD Drawing | 3D CAD Model | Manufacturer | Mini-Fit BMI |
| Product Type | Receptacles / Sockets - Housings | Number of Circuits | 14 |
| For Use With/Related Products | Mini-Fit BMI Receptacle | ||
Documents & Media
Similar Parts
0039000186
molex
Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece
0039000183
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD
0442810006
molex
Conn Wire to Board PL 14 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0015286141
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN VERT HEADER 14POS DUAL
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
15-24-6146
Molex
Headers & Wire Housings HEADER 94V-2 538-15-24-6046 CONN HEADER 14POS 4.2MM VERT TIN Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray
39-00-0055
Molex
Headers & Wire Housings SOCKET 18-24AWG REEL CONN TERM FEMALE 18-24AWG GOLD
0039000182
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039000155
Molex
Contact SKT Crimp ST Cable Mount
39-00-0154
molex

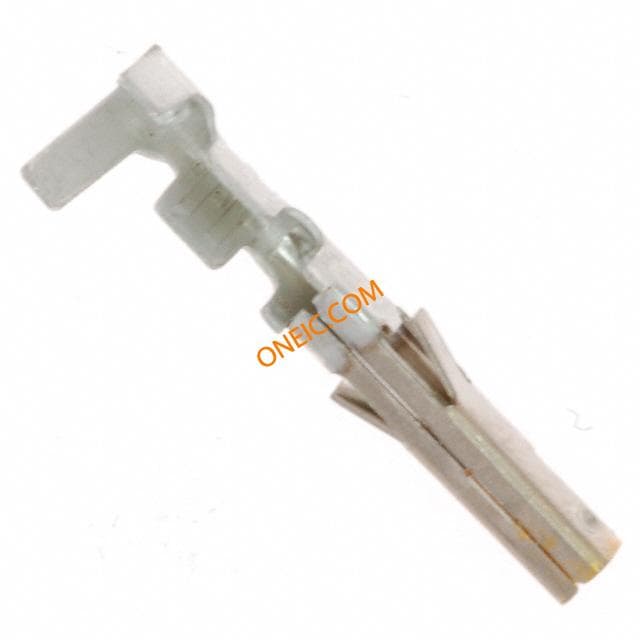

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG
