0039000213
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN |
| Category |
Business
| Other Names | WM3117CT | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 9 |
| Voltage - Supply (Min) | 600VDC/600VAC | ||
Mechanical
| Depth | 3.6 mm | Pitch | Not Required mm |
| Height | 4.5 mm | Packaging | Reel |
| Wire Gauge | 18-24 AWG | Shield Type | No |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Bright Tin Over Nickel | Mounting Style | Cable |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 14.7 mm | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Power | Gender | SKT |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0011030044
molex
Connector Accessories Mini-Fit JR Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACTION MINI-FIT JR
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0039012160
molex
Conn Housing RCP 16 POS 4.2mm Crimp ST Bag CONN RECEPT 16POS DUAL
0439740002
Molex, LLC
. 0439740002 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. from now!

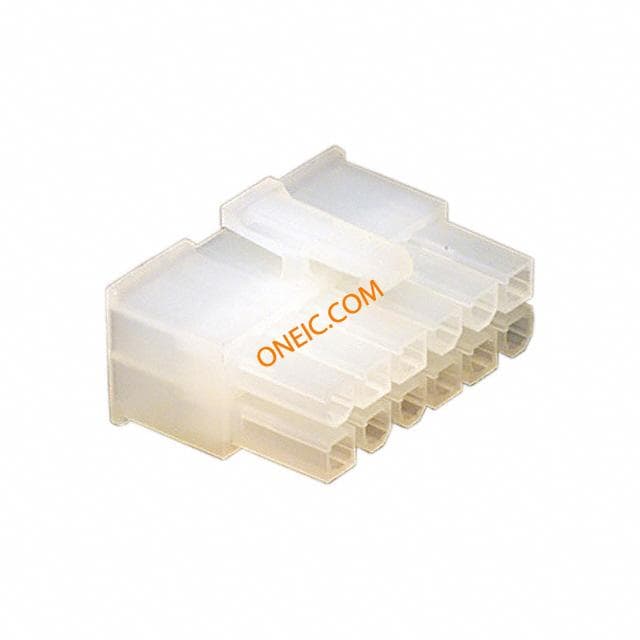

0039012125
molex
Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL
0439740005
Molex, LLC
. 0439740005 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. from now!

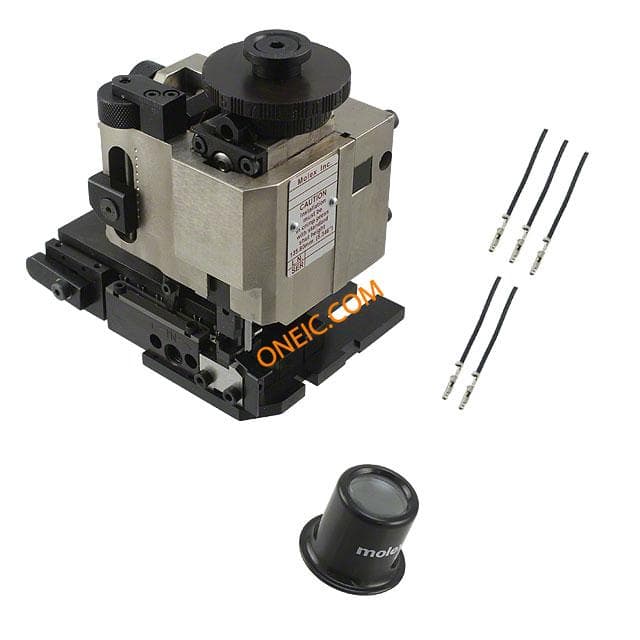

0639015600
molex
FINE ADJUST APPLICATOR FineAdjust Applicator For Insulation OD 1.90-2.30mm - 18-24 AWG TOOL APPLICATOR 18-24AWG CRIMP
0639002600
molex
Connector Accessories Crimp Applicator Tool FineAdjust Applicator FINE ADJUST APPLICATOR
0639102900
molex
T2 Terminator Tooling Die T2 TERMINATOR ASSEMBLY

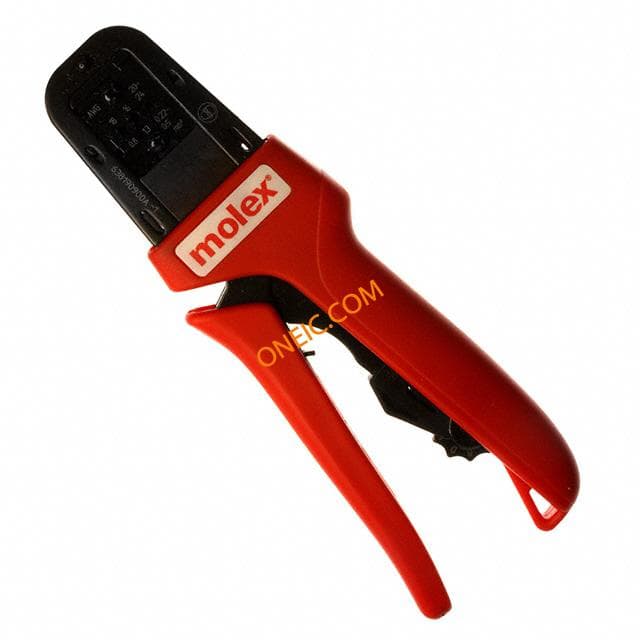

0638190900
Molex
Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG TOOL HAND CRIMP 16-24AWG Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,2÷0,8mm2,0,5÷0,8mm2,1,3mm2
0639102600
Molex
T2 Terminator For insulation OD 2.50-2.95mm - 18-24 AWG T2 TERMINATOR ASSEMBLY

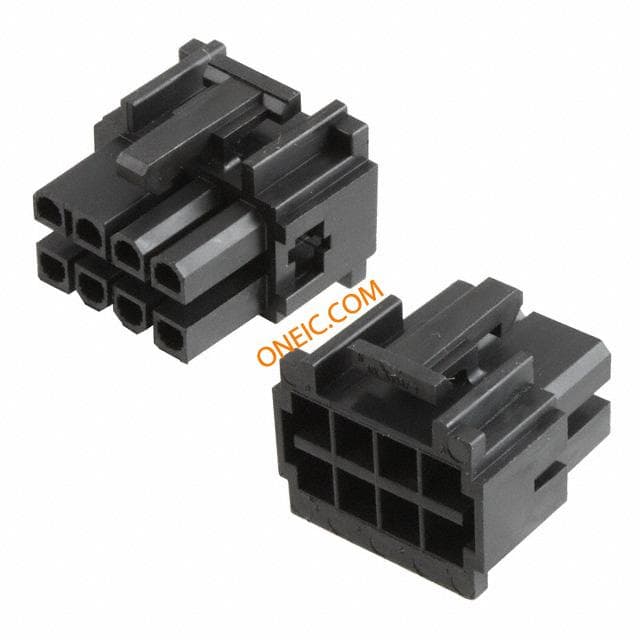

15-97-5081
