0442810006
| Manufacturer | |
| Description | Conn Wire to Board PL 14 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2.5/Contact | Voltage - Input (Min) | 600V |
Mechanical
| Color | Black | Pitch | 4.2 mm |
| Packaging | Bag | Wire Type | Discrete |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Piston | Mounting Type | Through Hole |
| Connector Type | Plug | Contact Finish | Gold |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Nylon 4/6 |
| Cable Termination | Solder | Number of Contacts | 14 |
| Number of Positions | 14 | ||
Product Info
| Type | Wire to Board | Gender | PL |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 105 | ||
Documents & Media
Similar Parts
0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag
0050362293
Molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Cable Mount Bulk CONN MINI FIT JR RCPT 14POS DL
15-06-0140
Molex Connector Corporation
CONN RECEPT 14POS W/PANEL MOUNT 14w D/R BMI receptacle housing Headers & Wire Housings RECPT DUAL ROW 14POS w/panel mount ears Conn Housing RCP 14 POS 4.2mm Crimp ST Bag HOUSING, 4.20MM, 14WAY MINIFIT JR BMI PMRCPT 14 pos with panelmount ears MINIFITJRBMIPMRCPT14poswithpanelmountears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 母 压接连接器外壳

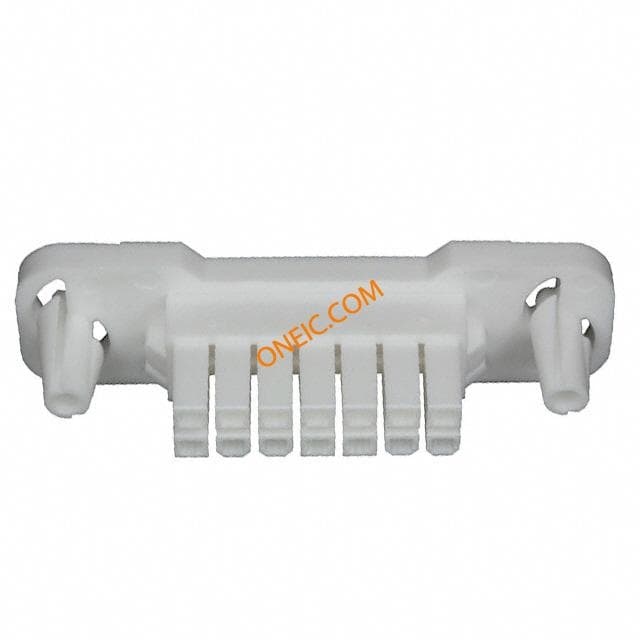

15-06-0141
