15-06-0145
| Manufacturer | |
| Description | CONN PLUG 14POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 14POS w/panel mount ears Conn Housing PL 14 POS 4.2mm Crimp ST Bag |
| Category |
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015060145 42475-1411 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 6 A, 9 A | Connector - Voltage Input | Male |
Mechanical
| Color | Natural | Pitch | 0.165" (4.20mm) |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Male Pin | Mounting Type | Panel Mount, Snap-In |
| Connector Type | Plug | Number of Rows | 2 |
| Housing Material | Nylon | Number of Contacts | 14 |
| Contact Termination | Crimp | Number of Positions | 14 |
Product Info
| Note | Contacts Not Provided | Type | Plug Housing |
| Series | 42475 | Product Type | Wire Housings |
| Application Specifics | Power, Wire-to-Wire, Wire-to-Board | ||
Documents & Media
Similar Parts
0015248152
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN RCPT 14POS VERT DUAL
0039000121
molex
Contact PIN Crimp ST Cable Mount Bag MINIFIT TERM CRP MALE L BS TIN
0039000219
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD
0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag
0039000061
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
39-00-0224
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 16AWG GOLD CRIMP Headers & Wire Housings CRIMP TERMINAL 16 AWG
0460123241
Molex
CONTACT PIN CRIMP ST CABLE MOUNT REEL MF PLUS HCS CRIMP TERM MALE
0460121242
Molex, LLC
. 0460121242 - Pin Contact Gold 18-20 AWG Crimp from Molex. from now!
0039000049
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-28AWG TIN
0460121142
Molex
Contact PIN Crimp ST Cable Mount Bag MF PLUS HCS CRIMP TERM MALE
0015247140
Molex
Conn Power RCP 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0039000128
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BZ TIN
0424741441
Molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
15-24-7141
Molex Connector Corporation
CONN HEADER 14POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 14P DUAL ROW

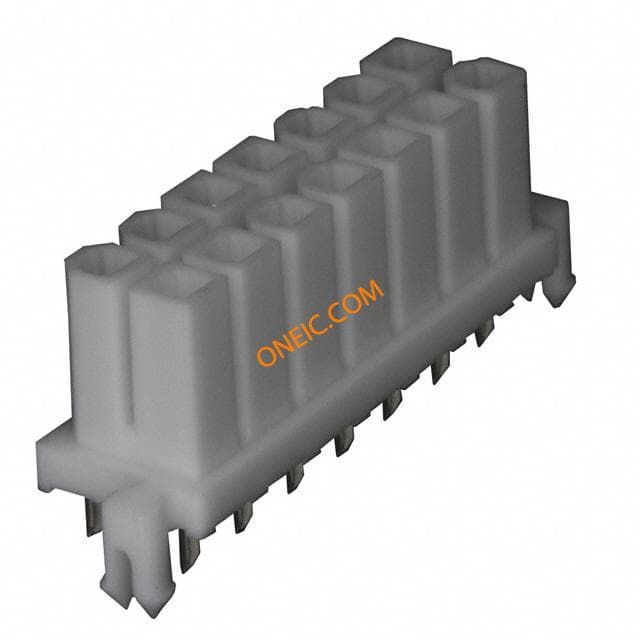

15-24-7143
