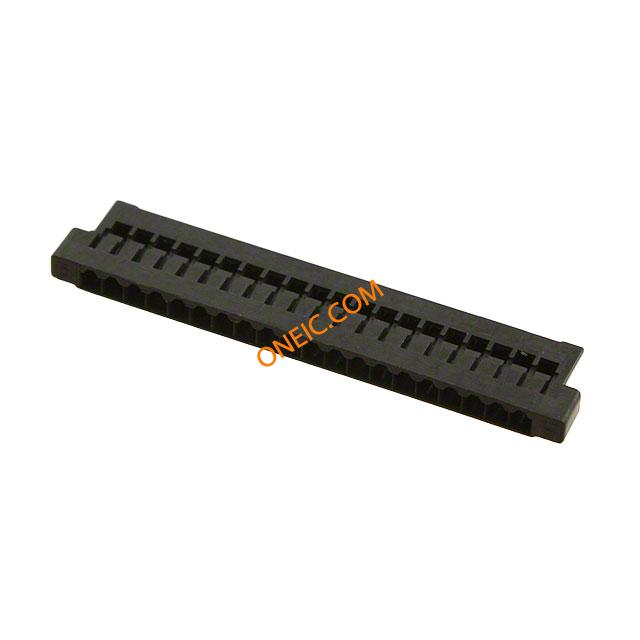

FI-S20S
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 1.25MM PCB-FLEX/WIRE CONN PLUG 1.25MM 20POS CBL MNT FFC & FPC Connectors 1.25MM PCB-FLEX/WIRE PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS 20 WAY HOUSING |
| Category |
Business
| Product Category | FFC & FPC Connectors | Standard Package | 1,000 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Bulk | Cable Exit | LowProfile |
| Termination | Screw | Contact Type | Female Socket |
| Pitch - Post | FEMALE | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug |
| Fastening Type | Friction Lock | Number of Rows | 1 |
| Housing Material | Nylon | Length - Overall | 28.5mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1.25mm |
| Termination Style | SMD | Number of Contacts | 20 |
| Contact Termination | Crimp | Number of Positions | 20 |
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI | Features | LCDCompatible,Shielded |
| Manufacturer | FISeries | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
Similar Parts
FI-SE20ME
JAE Electronics
FFC & FPC Connectors 20P PLUG SINGLE ROW SHIELD CONN PLUG 1.25MM 20POS CBL MNT PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS FLEX SINGLE ROW SHIELDED 20P leadfree

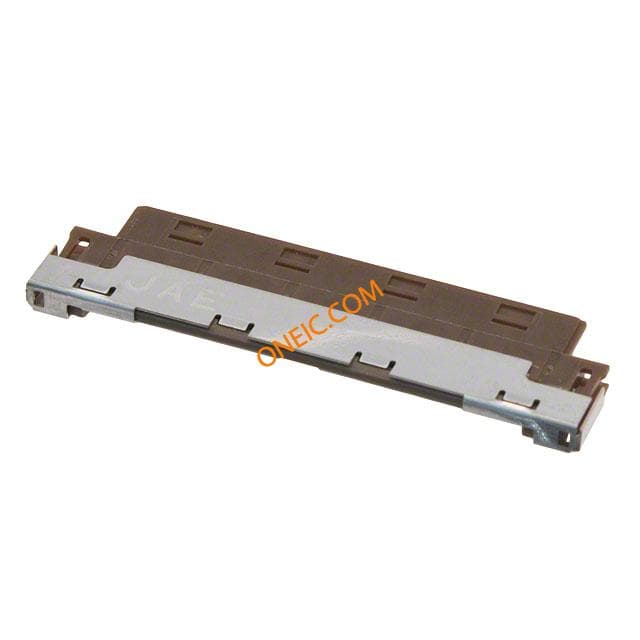

FI-SE20MRE
JAE Electronics
FFCおよびFPC コネクタ 20p FPC plug CONN PLUG 1.25MM 20POS FPC FFC & FPC Connectors 20p FPC plug 20W,1.25MM,LVDSCBLS/PLG 20P FFC CONNECTOR 1.25MM

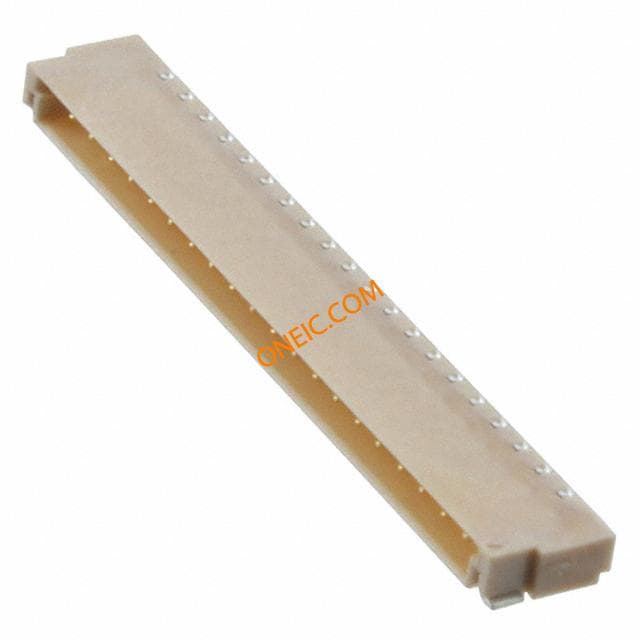

FI-S20P-HFE-E1500
JAE Electronics
FFCおよびFPC コネクタ 20p PCB to Cable LCD Compatible CONN RCPT 1.25MM 20POS SMD R/A FFC & FPC Connectors 20p PCB to Cable LCD Compatible 20 WAY RECEPTACLE 1,25 MM SMT

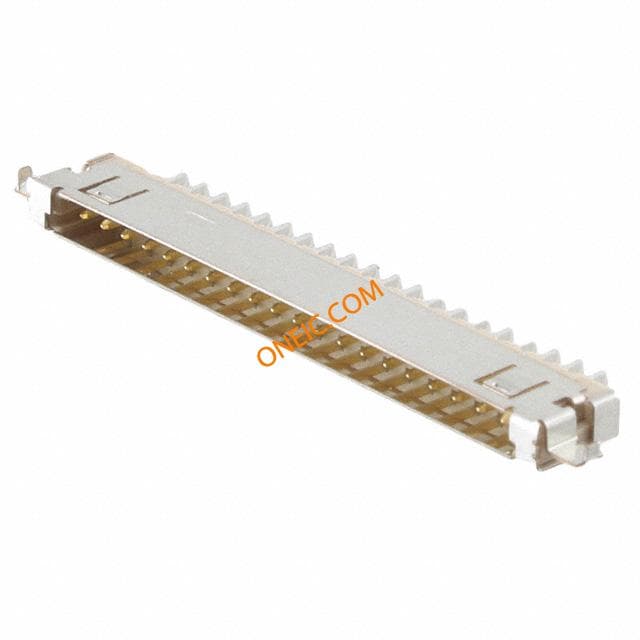

FI-SEB20P-HF13E
JAE Electronics
FFCおよびFPC コネクタ 20p PCB to Cable LCD Compatible CONN RCPT 1.25MM 20POS SMD R/A FFC & FPC Connectors 20p PCB to Cable LCD Compatible PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS 20P FEMALE BOARD SIDE SMT R/A

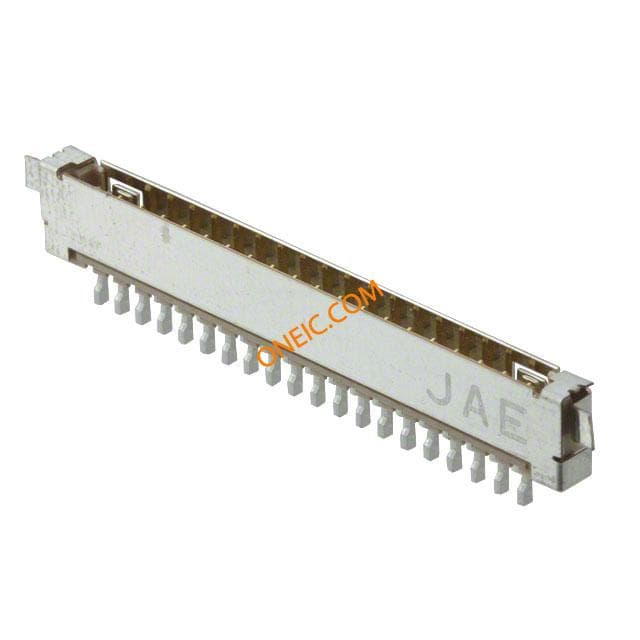

FI-SEB20P-HFE
JAE Electronics
FFC & FPC Connectors 1.25MM 20P RECPT CONN RCPT 1.25MM 20POS SMD R/A PCB TO CABLE RECEPTACLE- LCD COMPATIBLE; 1.25MM PITCH; 20 CONTACTS PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS 20P RECEPT 1,25MM SMT 90° GOLD

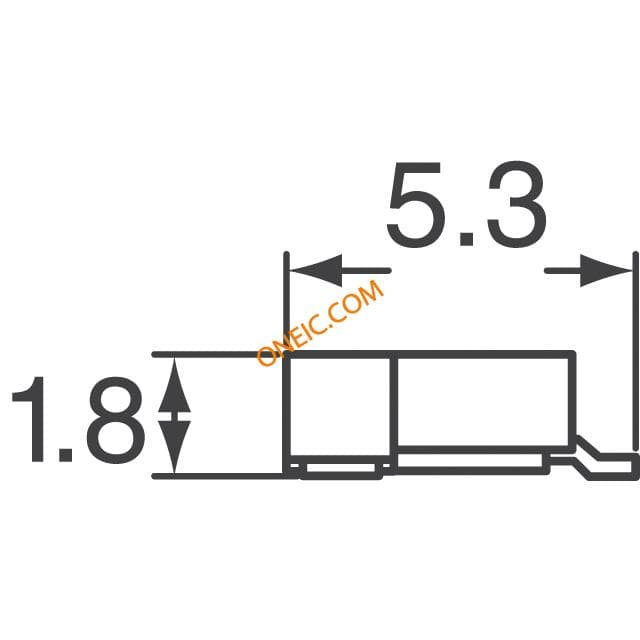

FI-S20P-HFE
JAE Electronics
FFC & FPC Connectors 1.25MM 20P RECEPT CONN RCPT 1.25MM 20POS SMD R/A PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20contacts 20 WAY 90° HEADER 1,25MM

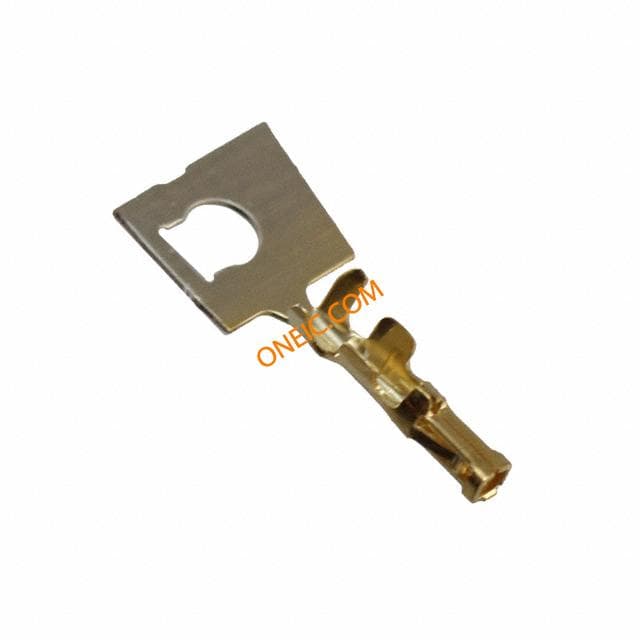

FI-C3-A1-15000
JAE Electronics
FFC & FPC Connectors Cable Side Contact FI Series Crimp CONN SOCKET CRIMP 28-32AWG GOLD Contact;CableSide;PCBtoCable;FISeries;GoldoverNickel PCBtoCable-CableSideContacts(Stripof1000) PCBtoCable-FISeriesCableSideContact(SoldinReelof15,000) FEMALE CRIMP CONTACTS AWG 28-32

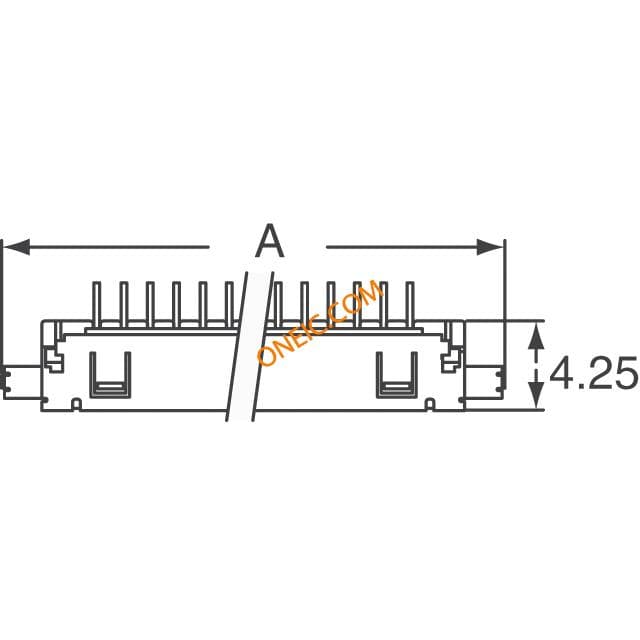

FI-SEB20P-HF10E
