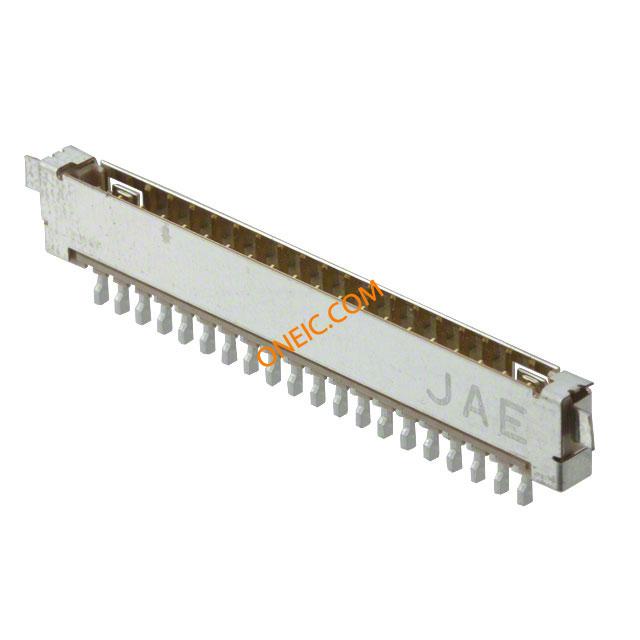

FI-SEB20P-HFE
| Manufacturer | |
| Description | FFC & FPC Connectors 1.25MM 20P RECPT CONN RCPT 1.25MM 20POS SMD R/A PCB TO CABLE RECEPTACLE- LCD COMPATIBLE; 1.25MM PITCH; 20 CONTACTS PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS 20P RECEPT 1,25MM SMT 90° GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Beige | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 2.4mm |
| Pitch - Post | MALE | Mounting Type | Board Edge, Cutout |
| Angle of Throw | Right | Connector Type | Receptacle |
| Contact Finish | Gold | Fastening Type | Friction Lock |
| Housing Finish | Tin | Number of Rows | 1 |
| Contact Material | Tin Alloy over Nickel | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 31.9mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Layout, Typical | Side Contact | ||
Product Info
| Type | CableSocket | Gender | Female |
| Series | FI | Features | Solder Retention |
| Manufacturer | FISeries | Product Type | Board Mount |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40to+80°C | ||
