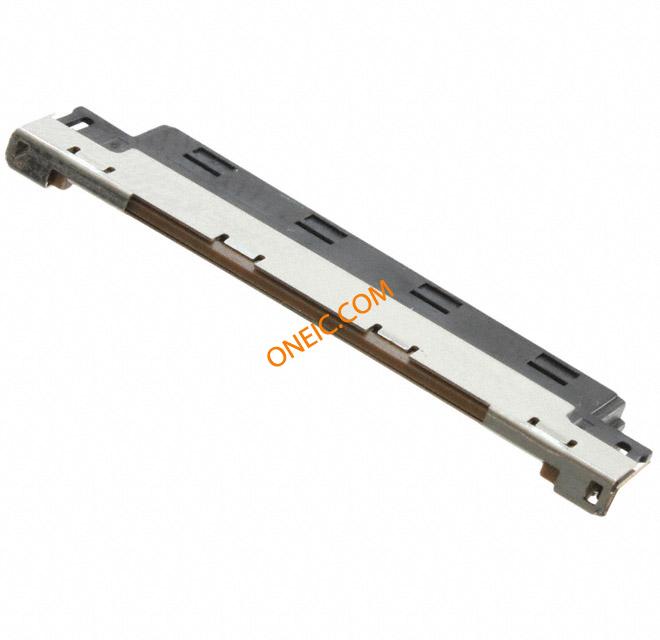

FI-SE20ME
| Manufacturer | |
| Description | FFC & FPC Connectors 20P PLUG SINGLE ROW SHIELD CONN PLUG 1.25MM 20POS CBL MNT PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS FLEX SINGLE ROW SHIELDED 20P leadfree |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | Leadfree | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 1.25 mm |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Termination | Crimp |
| Contact Type | 1.25 mm | Pitch - Post | FEMALE |
| Mounting Type | Vertical | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |

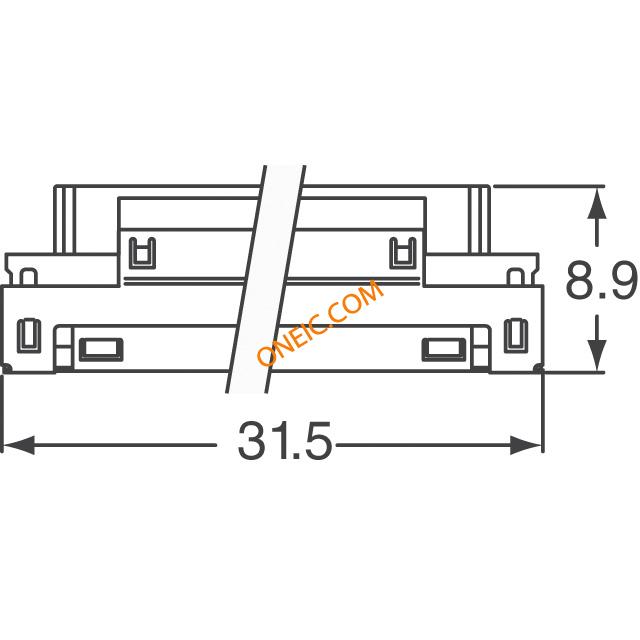

| Length - Overall | 31.5mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| FFC, FCB Thickness | 0.14mm | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Finish Thickness | 3.9µin (0.10µm) |
| Contact Material - Plating | GOLD | ||
Product Info
| Type | CablePlug | Series | FI |
| Features | Zero Insertion Force (ZIF) | Terminstyle | THT |
| Manufacturer | FISeries | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40°C ~ 80°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

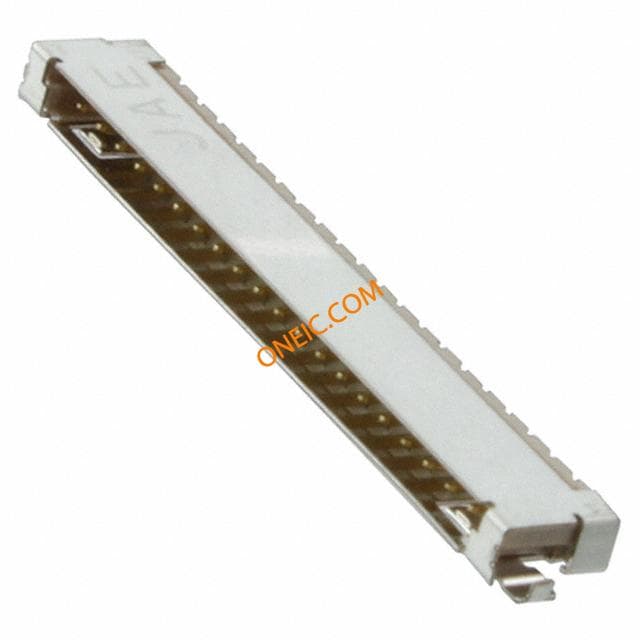

FI-SE20P-HFE
JAE Electronics
FFCおよびFPC コネクタ 20P R/A RCPT SMT 1.25MM PITCH CONN RCPT 1.25MM 20POS SMD R/A FFC & FPC Connectors 20P R/A RCPT SMT 1.25MM PITCH PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS RIGHT ANGLE HEADER 20P
$21.4863
Details

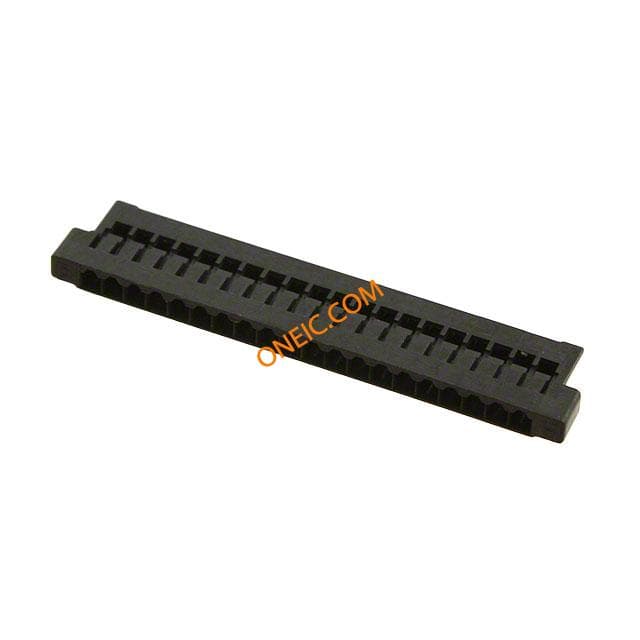

FI-S20S
