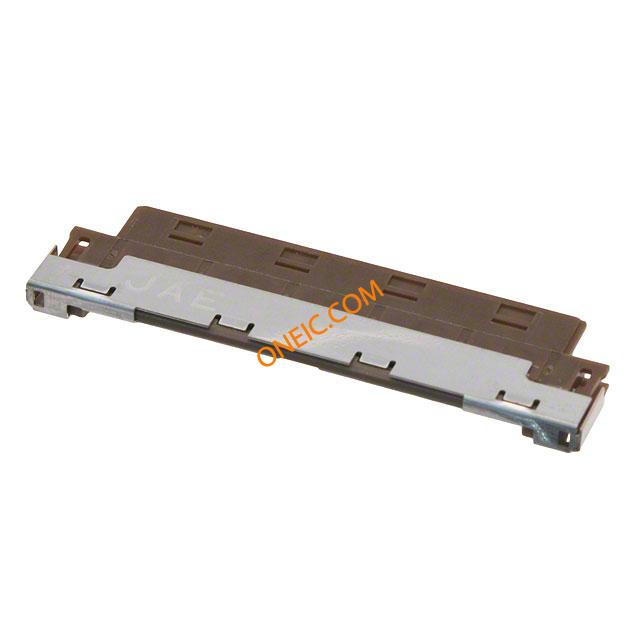

FI-SE20MRE
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 20p FPC plug CONN PLUG 1.25MM 20POS FPC FFC & FPC Connectors 20p FPC plug 20W,1.25MM,LVDSCBLS/PLG 20P FFC CONNECTOR 1.25MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Termination | Crimp |
| Contact Type | 1.25 mm | Pitch - Post | FEMALE |
| Mounting Type | Vertical | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 01 | Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | FFC, FCB Thickness | 0.14mm |
| Number of Contacts | 20 | Number of Positions | 20 |
| Switch Actuation Level | ZIF | Contact Finish Thickness | 3.9µin (0.10µm) |
| Contact Material - Plating | GOLD | ||
Product Info
| Series | FI | Features | Zero Insertion Force (ZIF) |
| Product Type | Free Hanging | ||
Environmental
| Operating Temperature | -40°C ~ 80°C | ||
