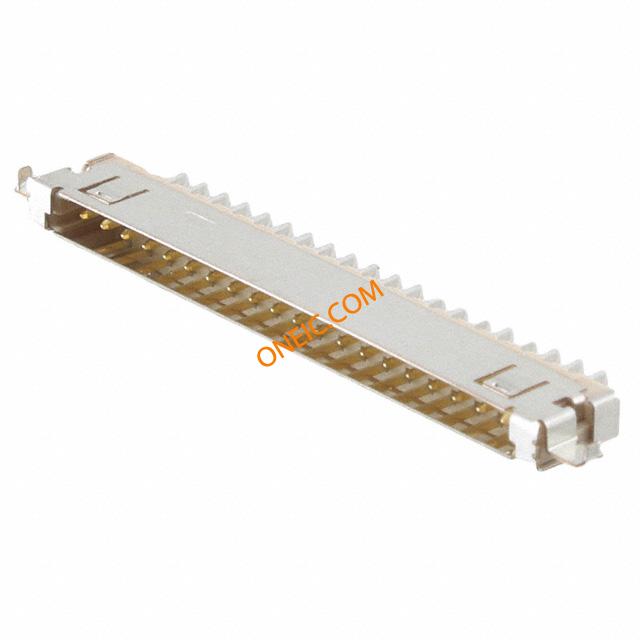

FI-SEB20P-HF13E
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 20p PCB to Cable LCD Compatible CONN RCPT 1.25MM 20POS SMD R/A FFC & FPC Connectors 20p PCB to Cable LCD Compatible PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,20CONTACTS 20P FEMALE BOARD SIDE SMT R/A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Beige | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 2.4mm |
| Pitch - Post | FEMALE | Mounting Type | Board Edge, Cutout |
| Angle of Throw | Right | Connector Type | Receptacle |
| Contact Finish | Gold | Fastening Type | Friction Lock |
| Housing Finish | Tin | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene Sulfide (PPS) |
| Length - Overall | 32.26mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Material - Plating | R/A |
Product Info
| Type | CableSocket | Gender | Female |
| Series | FI | Features | Solder Retention |
| Terminstyle | SMT | Manufacturer | FISeries |
| Product Type | Board Mount | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
