09693100055
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 5P MALE SHELL 5W5 5 SPECIAL CNTS DSUB MA 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 M D-SubMixedConnector5W5M Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插头 |
| Category |
Business
| Part # Aliases | 0055 09 09-69-310-0055 310 69 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Depth | 12.4mm | Width | 12.5mm |
| Length | 53mm | Packaging | Bulk |
| Shell Size | B | Orientation | 直 |
| Contact Type | Coax or Power | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Housing Material | Steel |
| Size / Dimension | 53 x 12.5 x 12.4mm | Termination Style | Solder |
| Number of Contacts | 5 | Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 5 (Coax or Power) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 5W5 | Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
09693000055
HARTING
D-Sub Mixed Contact Connectors 5P FML SHELL 5W5 5 SIGNAL THRU HOLE DSUB FE 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 F D-SubMixedConnector5W5F Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插座
09692817140
HARTING
D-Sub Mixed Contact Connectors MALE COAX CNT 50 OHM SLDR/CRIMP RG174U D SUB MIXED MA S CRIMP COAX 50 O
09692817230
HARTING
D-Sub Contacts MALE COAX CNT 75 OHM SLDR/CRIMP RG179/187 MALE COAXIAL CONTACT , 75 OHMS , STRAIGHT CABLE TERMINATION D SUB MIXED MA S CRIMP COAX 75 H
09692825230
HARTING
D-Sub Contacts DSUB ML STR CRIMP CONT 75 OHMS COAX DSUB MA STR CRIMP CONTACT COAX Harting D-Sub Mixed系列 公 压接 同轴 D-Sub 连接器同轴触点, 镀金 触点, 24 AWG、26 AWG、28 AWG、30 AWG 0969
09692827421
HARTING

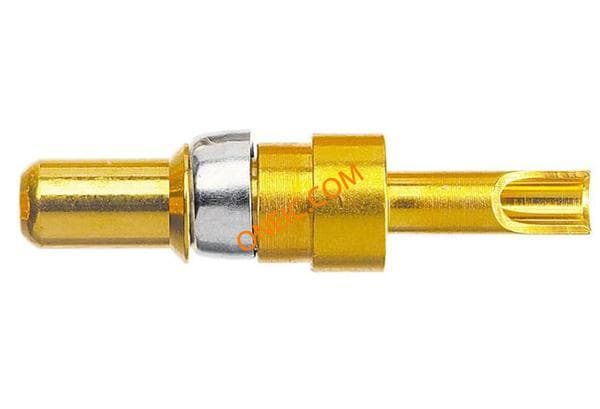

D-Sub Mixed Contact Connectors D SUB MIXED MA 20A CR POWER CONTACT PL3 DSUB MIX MA 20A POWER CONTACT D-Sub High current Crimp 20A M 12-14AWG D-SubHighcurrentCrimp20AM12-14AWG Harting 公 压接 功率 D-Sub 连接器电源触点, 14 → 12 AWG
09692817141
HARTING
D-Sub Mixed Contact Connectors MALE COAX CNT 50 OHM SLDR/CRIMP RG178U D SUB MIXED MA S CRIMP COAX 50 O
09692815423
HARTING

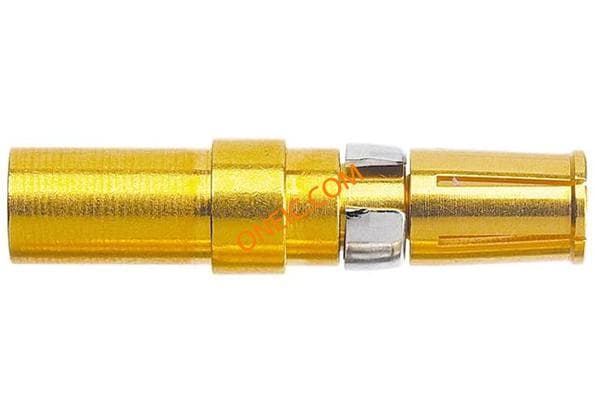

D-Sub Contacts DSUB MA STR 40A PWR SOLDER CONTACT DSUB MA STR SOLDER CONT 40A PWR
09692827230
HARTING
D-Sub Contacts D SUB MIXED ML CR/CR S COAX 75 OHMS PL3 D SUB MIXED MA S CR CR COAX 75 O
09692827420
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED ML 10A CRIMP POWER CONT PL3 Contact PIN Crimp ST Cable Mount DSUB MIX MA 10A CRIMP POWER CONT D-Sub High current Crimp 10A M 16-20AWG D-SubHighcurrentCrimp10AM16-20AWG Harting 公 压接 功率 D-Sub 连接器电源触点, 镀金 触点, 20 → 16 AWG
09692817420
HARTING
D-Sub Mixed Contact Connectors D SUB MIXED ML 10A PL3 SOLD.POW.CONT DSUB MIX MA 10A PL3 SLD PWR CONT D-Sub High current solder 10A M 16-20AWG D-SubHighcurrentsolder10AM16-20AWG Harting 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 20 → 16 AWG
09692815140
HARTING
D-Sub Contacts DSUB MA STR 50 OHMS SOLDER CONTACT COAX DSUB MA STR SOLDER CONTACT COAX
09692815230
HARTING
D-Sub Contacts DSUB MA STR 75 OHMS SOLDER CONTACT COAX DSUB MA STR SOLDER CONTACT COAX Harting Han Contacts 系列 公插 触点 , 适用于电缆 RG 179 BU，187 AU
09696812550
HARTING
D-Sub Contacts DSUB MA RIGHT ANG HI VOLTAGE CONTACT DSUB MA RIGHT ANG HIGH VOLTAGE C
09692827140
HARTING
D-Sub Contacts D SUB MIXED ML CR/CR S COAX 50 OHMS PL3 D SUB MIXED MA S CR CR COAX 50 O
09692817233
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED ML SOLDER CRIMP COAX 75 OHMS D SUB MIXED MA SOLDER CRIMP COAX
09692815420
HARTING
D-Sub Contacts D SUB MIXED ML 10A S4 SOLD.POW.CONTACT D-Sub Mixed Contact Connectors D SUB MIXED ML 10A S4 SOLD.POW.CONTACT DSUB MIXED MA 10A SLD PWR CONT
09692812550
HARTING

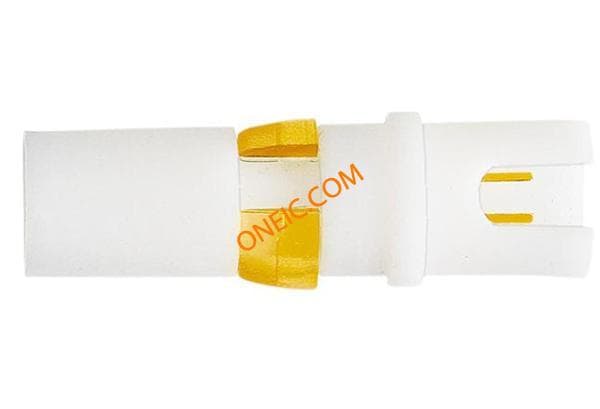

D-Sub Contacts DSUB MA STR HIGH VOLT CONT Contact PIN Solder Cup ST Cable Mount DSUB MA STR HIGH VOLTAGE CONTACT D-Sub Mixed High voltage AWG 24-20 M D-SubMixedHighvoltageAWG24-20M Harting 公 焊接 高电压 D-Sub 连接器电源触点, 镀金 触点, 24 → 20 AWG
