点击放大查看

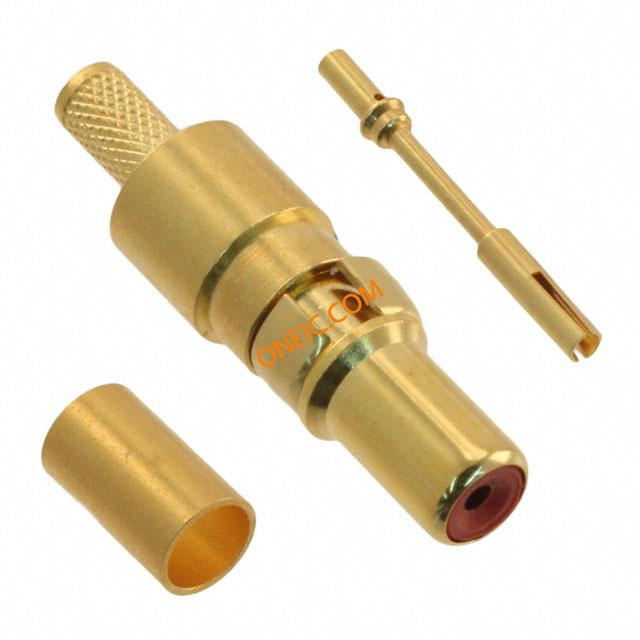

09692825230
| Manufacturer | |
| Description | D-Sub Contacts DSUB ML STR CRIMP CONT 75 OHMS COAX DSUB MA STR CRIMP CONTACT COAX Harting D-Sub Mixed系列 公 压接 同轴 D-Sub 连接器同轴触点, 镀金 触点, 24 AWG、26 AWG、28 AWG、30 AWG 0969 |
| Category |
Business
| Part # Aliases | 09 09-69-282-5230 282 5230 69 | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Length | 22.45mm | Packaging | Bulk |
| Wire Gauge | Coaxial Cable | Contact Form | Machined |
| Contact Type | Male Pin | Connector Type | 公插 |
| Contact Finish | Gold | Termination Rows | 压接 |
| 1st Contact Gender | Pin (Male) | Termination Finish | Gold |
| Contact Termination | Crimp | Contact Finish Thickness | 51.2µin (1.30µm) Inner, 31.5µin (0.80µm) Outer |
| Wire Gauge or Range - mm2 | 24 AWG、26 AWG、28 AWG、30 AWG | Termination Finish Thickness | 51.2µin (1.30µm) Inner, 8µin (0.20µm) Outer |
Product Info
| Type | Coaxial | Series | D-Sub Mixed |
| Base Product Number | 0969 | ||
