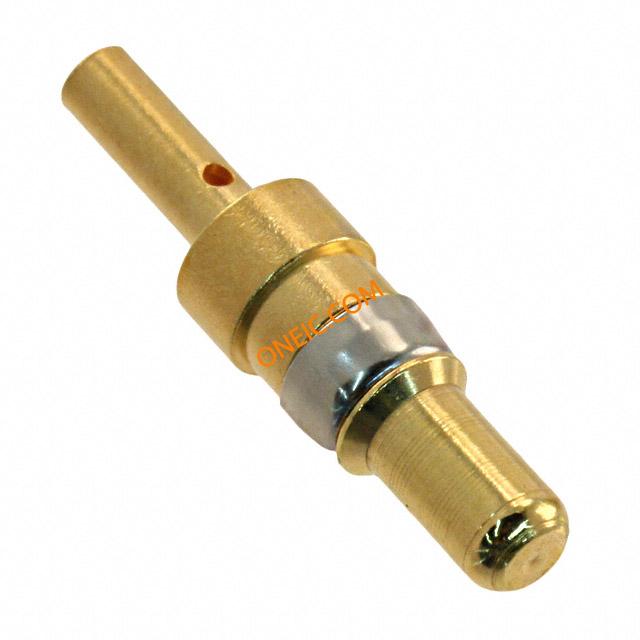

09692827420
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors DSUB MIXED ML 10A CRIMP POWER CONT PL3 Contact PIN Crimp ST Cable Mount DSUB MIX MA 10A CRIMP POWER CONT D-Sub High current Crimp 10A M 16-20AWG D-SubHighcurrentCrimp10AM16-20AWG Harting 公 压接 功率 D-Sub 连接器电源触点, 镀金 触点, 20 → 16 AWG |
| Category |
Business
| Part # Aliases | 09 09-69-282-7420 282 69 7420 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 1 | Current Rating (Max) | 10 A |
Mechanical
| Depth | 5.5 | Height | 5.5 |
| Length | 23mm | Packaging | Bulk |
| Wire Gauge | 16-20 AWG | Shield Type | No |
| Termination | Crimp | Contact Form | Machined |
| Contact Type | Power | Mounting Type | Straight |
| Connector Type | Connector D-Subminiature | Contact Finish | Gold |
| Mounting Style | Wire | Contact Material | Copper Alloy |
| Length - Overall | 23 | Termination Rows | 压接 |
| Termination Style | Crimp | Number of Contacts | 1 |
| Termination Finish | Gold | Contact Termination | Crimp |
| Contact Finish Thickness | 8µin (0.20µm) | Wire Gauge or Range - mm2 | 20 → 16 AWG |
| Termination Finish Thickness | 8µin (0.20µm) | ||
Product Info
| Type | Power | Gender | Male |
Environmental
| Operating Temperature | 155 | ||
