09693000055
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 5P FML SHELL 5W5 5 SIGNAL THRU HOLE DSUB FE 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 F D-SubMixedConnector5W5F Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插座 |
| Category |
Business
| Part # Aliases | 0055 09 09-69-300-0055 300 69 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Depth | 12.6mm | Width | 12.5mm |
| Length | 53mm | Packaging | Bulk |
| Shell Size | B | Orientation | 直 |
| Contact Type | Coax or Power | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Receptacle for Female Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Housing Material | Steel |
| Size / Dimension | 53 x 12.5 x 12.6mm | Termination Style | Solder |
| Number of Contacts | 5 | Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 5 (Coax or Power) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 5W5 | Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
Product Info
| Note | Contacts Not Provided | Gender | Female |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
09691817421
HARTING
D-Sub Contacts FEMALE CONTACT 20 AMPS SOLDER DSUB MIXED FE 20 A S POWER CONT D-Sub High current solder 20A F 12-14AWG D-SubHighcurrentsolder20AF12-14AWG Harting 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 14 → 12 AWG
09693100055
HARTING
D-Sub Mixed Contact Connectors 5P MALE SHELL 5W5 5 SPECIAL CNTS DSUB MA 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 M D-SubMixedConnector5W5M Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插头
09691817140
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG174 D SUB MIXED FE S CRIMP COAX 50 O Harting D-Sub Mixed系列 母 压接，焊接 同轴 D-Sub 连接器同轴触点, 镀金 触点 0969
09691817141
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG178 D SUB MIXED FE S CRIMP COAX 50 O
09691825421
HARTING

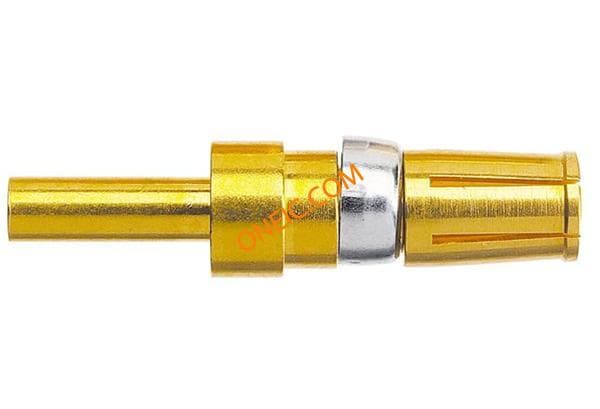

D-Sub Contacts DSUB FE STR CRIMP CONTACT 20A POWER DSUB FE STR CRIMP CONT 20A POWER D-SUB crimp contact 20A D-SUBcrimpcontact20A Harting 母 压接 功率 D-Sub 连接器电源触点, 镀金 触点, 14 → 12 AWG
