点击放大查看

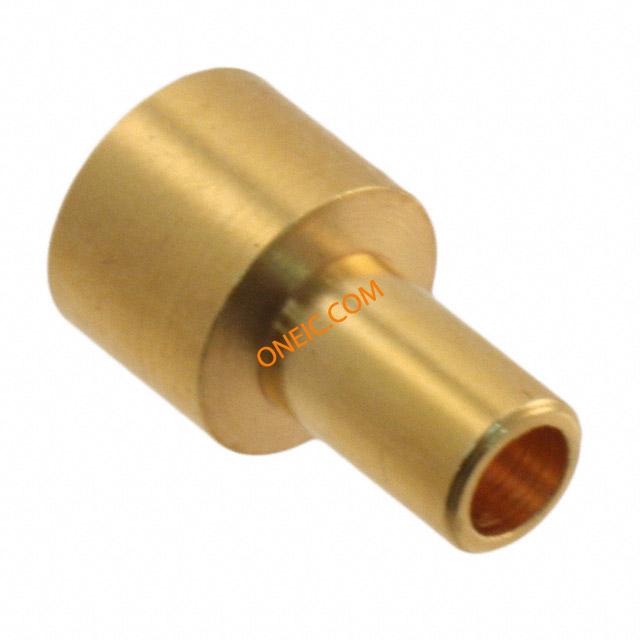

09692815141
| Manufacturer | |
| Description | D-Sub Contacts DSUB MA STR 50 OHMS SOLDER CONTACT COAX DSUB MA STR SOLDER CONTACT COAX Harting D-Sub Mixed系列 公 压接，焊接 同轴 D-Sub 连接器同轴触点, 镀金 触点 0969 |
| Category |
Business
| Part # Aliases | 09 09-69-281-5141 281 5141 69 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Length | 22.5mm | Packaging | Bulk |
| Wire Gauge | Coaxial Cable | Contact Form | Machined |
| Contact Type | Male Pin | Connector Type | 公插 |
| Contact Finish | Gold | Termination Rows | 压接，焊接 |
| 1st Contact Gender | Pin (Male) | Termination Finish | Gold |
| Contact Termination | Crimp, Solder | Contact Finish Thickness | 51.2µin (1.30µm) Inner, 31.5µin (0.80µm) Outer |
| Termination Finish Thickness | 51.2µin (1.30µm) Inner, 8µin (0.20µm) Outer | ||
Product Info
| Type | Coaxial | Series | D-Sub Mixed |
| Base Product Number | 0969 | ||
