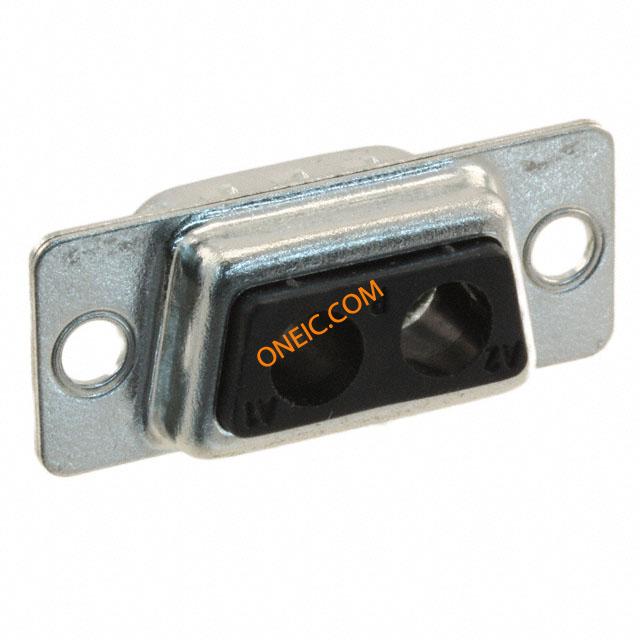

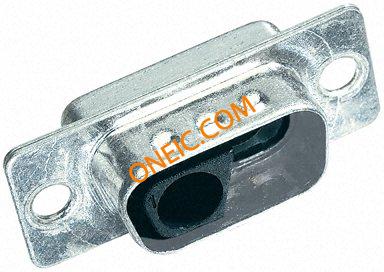

09691100022
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors D SUB MA 2W2C WITHOUT CON Conn Housing PL 2 POS 6.86mm Crimp ST DSUB MA 2W2C WITHOUT CONTACT D-Sub Mixed Connector 2W2C M D-SubMixedConnector2W2CM Special D-Sub; PIN:2(2+0); male; w/o special terminals Harting 电缆安装 2（功率/同轴） 路 混合焊接 D-sub 连接器 插头 |
| Category |
Business
| Part # Aliases | 0022 09 09-69-110-0022 110 69 | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Connector - Voltage Input | w/o special terminals | ||
Mechanical
| Depth | 12.4mm | Pitch | 6.86mm |
| Width | 12.5mm | Height | 12.5 mm |
| Length | 30.8mm | Weight | 5.62 g |
| Packaging | Bulk | Insulation | Insulated |
| Shell Size | E | Orientation | 直 |
| Contact Type | Coax or Power | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 1 | Shell Material | Metal |
| Connector Style | D-Sub, Combo | Housing Material | Metal |
| Length - Overall | 30.8 | Package Quantity | 30 |
| Size / Dimension | 30.8 x 12.5 x 12.4mm | Number of Contacts | 2 |
| Dielectric Material | Polyester, Glass Filled | Insulation Material | Polybutylene Terephthalate |
| Number of Positions | 2 (Coax or Power) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 2W2 | Shell Size, Connector Layout | 1 (DE, E) - 2V2, 2W2C |
Product Info
| Spg | 30 | Note | Contacts Not Provided |
| Type | Housing | Gender | Male |
| Series | 9 | Features | Grounding Indents |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
