点击放大查看

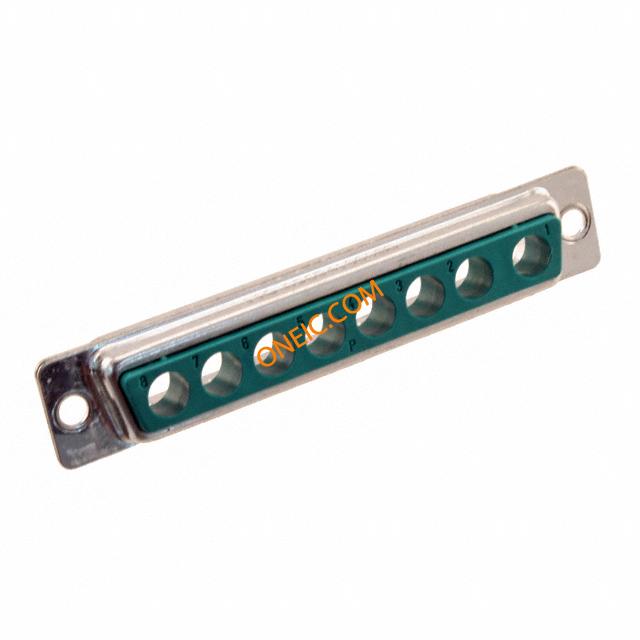

09694100088
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors 8P MALE SHELL 8W8 8 SPECIAL CNTS DSUB MA 8W8 SHELL W/O CONTACTS D-Sub Mixed Connector 8W8 M D-SubMixedConnector8W8M Harting 电缆安装 8（功率/同轴） 路 混合焊接 D-sub 连接器 插头 |
| Category |
Business
| Part # Aliases | 0088 09 09-69-410-0088 410 69 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Depth | 12.4mm | Width | 12.5mm |
| Length | 69.3mm | Packaging | Bulk |
| Shell Size | C | Orientation | 直 |
| Contact Type | Coax or Power | Mounting Type | Straight |
| Connector Type | Plug for Male Contacts | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Style | D-Sub, Combo | Housing Material | Steel |
| Size / Dimension | 69.3 x 12.5 x 12.4mm | Number of Contacts | 8 |
| Dielectric Material | Polyester, Glass Filled | Number of Positions | 8 (Coax or Power) |
| Shell Material, Finish | Steel, Tin Plated | Contact Layout, Typical | 8W8 |
| Shell Size, Connector Layout | 4 (DC, C) - 8W8 | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
