09692100033
| Manufacturer | |
| Description | D-Sub Mixed Contact Connectors DSUB MA 3W3 SHELL W/O CONTACTS Conn Housing M 3 POS 6.86mm ST Panel Mount DSUB MA 3W3 SHELL W/O CONTACTS Harting D-Sub Mixed 系列 电缆安装 3 路 焊接 D-sub 连接器 插头 |
| Category |
Business
| Part # Aliases | 0033 09 09-69-210-0033 210 69 | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Depth | 12.4 mm | Pitch | 6.86 mm |
| Height | 12.5 mm | Length | 39.1mm |
| Packaging | Bulk | Shell Size | A |
| Orientation | 直 | Contact Type | Coax or Power |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Plug for Male Contacts | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 1 | Connector Style | D-Sub, Combo |
| Housing Material | Polyester | Length - Overall | 39.1 mm |
| Number of Contacts | 3 | Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 3 (Coax or Power) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 3W3 | Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | M | Series | D-Sub Mixed |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
09692817140
HARTING
D-Sub Mixed Contact Connectors MALE COAX CNT 50 OHM SLDR/CRIMP RG174U D SUB MIXED MA S CRIMP COAX 50 O
09692817230
HARTING
D-Sub Contacts MALE COAX CNT 75 OHM SLDR/CRIMP RG179/187 MALE COAXIAL CONTACT , 75 OHMS , STRAIGHT CABLE TERMINATION D SUB MIXED MA S CRIMP COAX 75 H
09692825423
HARTING

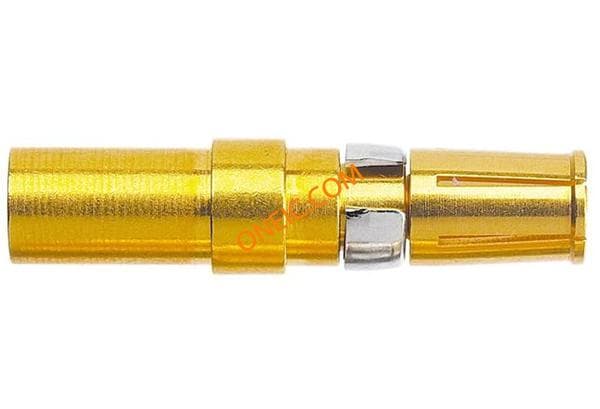

D-Sub Contacts Contact pin d-sub 40A DSUB MA STR CRIMP CONT 40A POWER

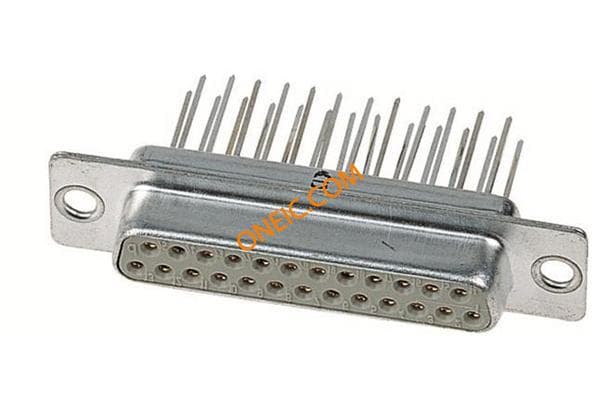

09692000033
HARTING
D-Sub Mixed Contact Connectors 3W3 FEMALE SHELL 3 SPECIAL CNTS Conn Housing F 3 POS 6.86mm ST Panel Mount DSUB FE 3W3 SHELL W/O CONTACTS Harting D-Sub Mixed 系列 电缆安装 3 路 焊接 D-sub 连接器 插座
09692817143
HARTING
D-Sub Mixed Contact Connectors DSUB MALE CRMP/SLDR CONTACTS 50OHMS COAX D SUB MIXED MA SOLDER CRIMP COAX
09692825422
HARTING

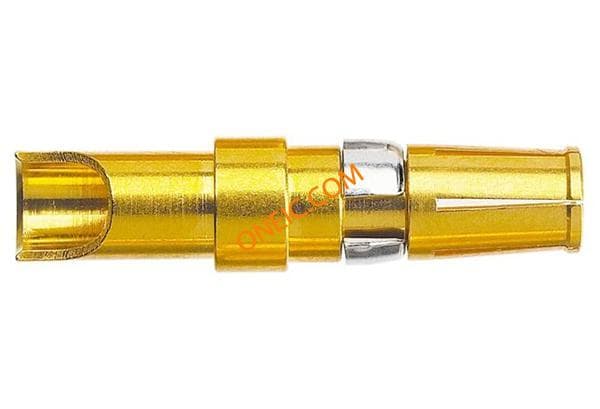

D-Sub Contacts DSUB MA STR 30A PWR CRIMP CONTACT DSUB MA STR CRIMP CONT 30A POWER
