点击放大查看

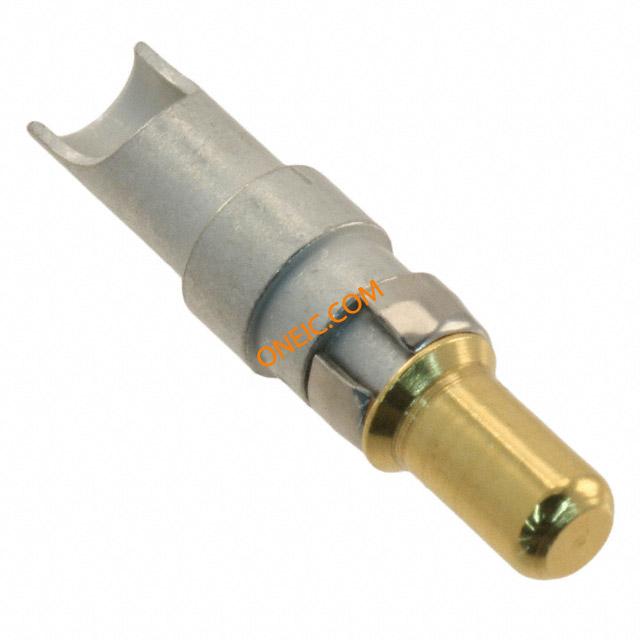

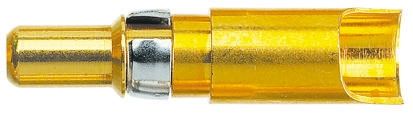

09692817422
| Manufacturer | |
| Description | D-Sub Contacts MALE CONTACT 30 AMP SOLDER Contact PIN Solder Cup ST Cable Mount DSUB MIXED MA 30A PWR CONTACT D-Sub High current solder 30A M 10-12AWG D-SubHighcurrentsolder30AM10-12AWG Harting 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 12 → 10 AWG |
| Category |
Business
| Part # Aliases | 09 09-69-281-7422 281 69 7422 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 1 | Current Rating (Max) | 30 A |
Mechanical
| Depth | 5.5 | Height | 5.5 |
| Length | 23mm | Packaging | Bulk |
| Wire Gauge | 12-10 | Shield Type | No |
| Termination | Solder Cup | Contact Form | Machined |
| Contact Type | Power | Mounting Type | Cable Mount |
| Connector Type | Connector D-Subminiature | Contact Finish | Gold |
| Contact Material | Copper Alloy | Length - Overall | 23 |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Termination Finish | Gold |
| Contact Termination | Solder Cup | Contact Finish Thickness | 31.5µin (0.80µm) |
| Wire Gauge or Range - mm2 | 12 → 10 AWG | Termination Finish Thickness | 8µin (0.20µm) |
Product Info
| Type | Power | Gender | PIN |
Environmental
| Operating Temperature | 155 | ||
Documents & Media
Similar Parts
09693100055
HARTING
D-Sub Mixed Contact Connectors 5P MALE SHELL 5W5 5 SPECIAL CNTS DSUB MA 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 M D-SubMixedConnector5W5M Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插头

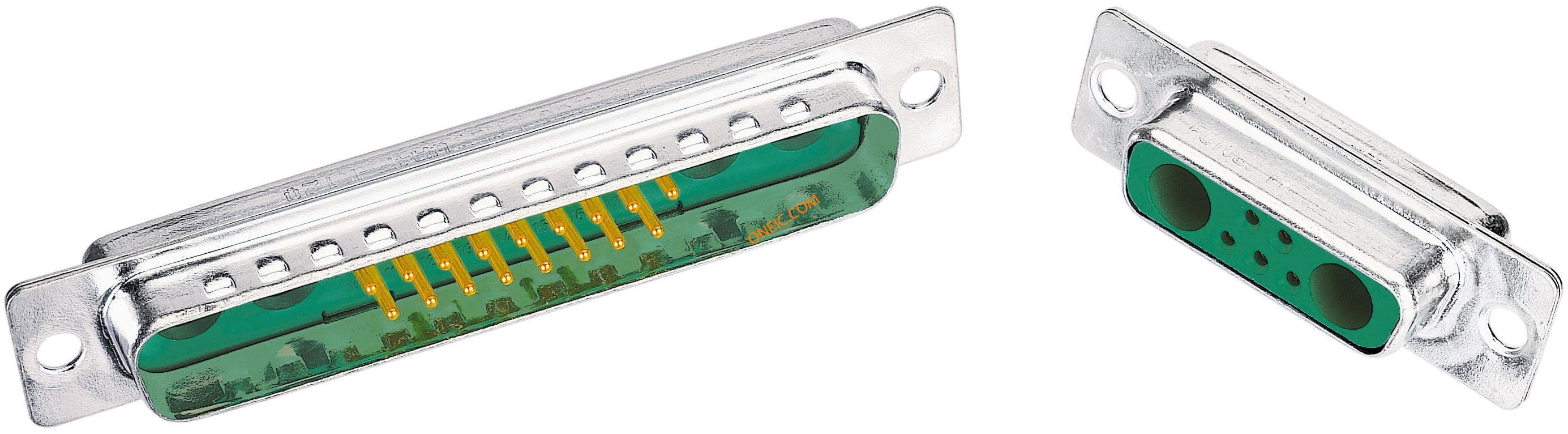

09691100022
