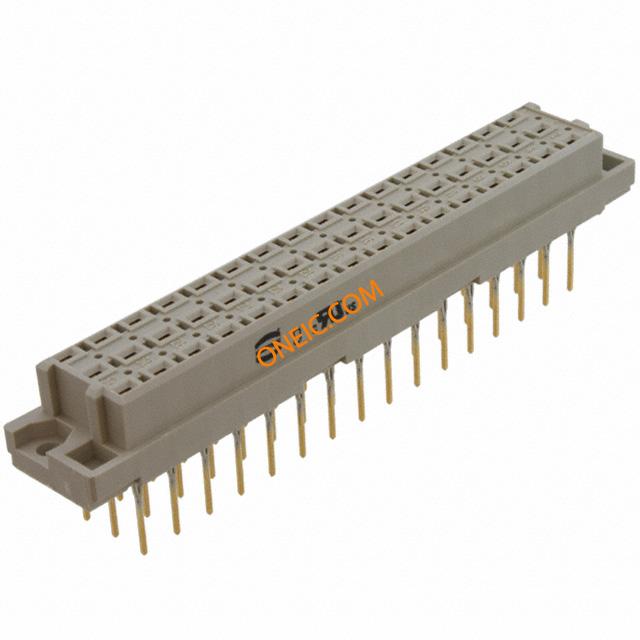

09052486851
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-POWER E048FP-11,5C1-2 Conn Backplane F 48 POS 5.08mm Press Fit ST Thru-Hole DIN-POWER E048FP-11,5C1-2 |
| Category |
Business
| Part # Aliases | 05 09 09-05-248-6851 248 6851 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 6 A | ||
Mechanical
| Depth | 15.6 | Pitch | 0.200" (5.08mm) |
| Height | 11.55 | Packaging | Bulk |
| Termination | Press Fit | Mounting Type | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Length - Overall | 90 |
| Termination Style | Press In | Number of Contacts | 48 |
| Number of Positions | 48 (Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | Backplane | Style | E |
| Gender | F | Product Type | Receptacles |
| Number of Positions Loaded | All | ||
Environmental
| Level, Class | 2 | Operating Temperature | - 40 C to + 105 C |
Similar Parts
09051486931
HARTING
DIN 41612 Connectors 48P MALE ANGLE PCB Conn Backplane M 48 POS 2.54mm Solder RA Thru-Hole DIN-POWER E048MS-3,0C1-2 Socket; DIN 41612,type E; male; PIN:48; a+c+e; THT; angled 90° Harting 09 05 系列 48 路 2.54mm 节距, E型, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接

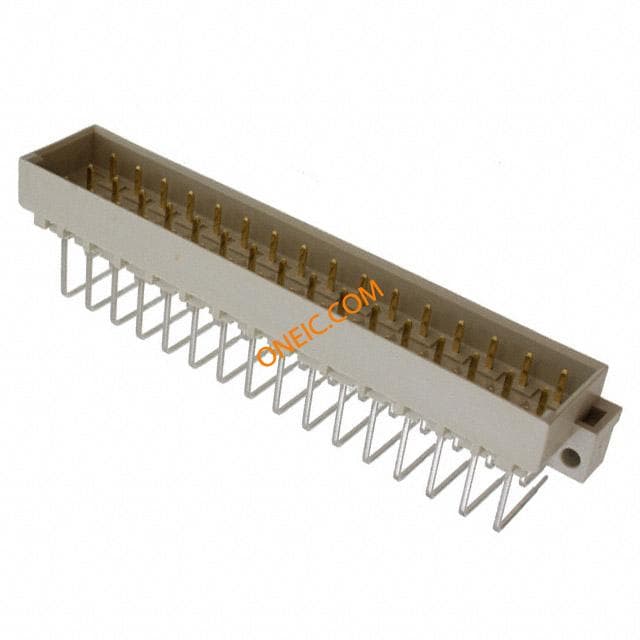

09051486921
Harting Technology Group
Conn Shrouded Header M 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 48P 6A MALE R/A SLDR DIN-POWER E048MS-3,0C1-2 Connector DIN-Power solder 48-way m DINConnector;48;6A(Max.);5.08mm(Row);Male;AngledSolderPin;3mm Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e, 直角 DIN 41612 插头, 焊接端接

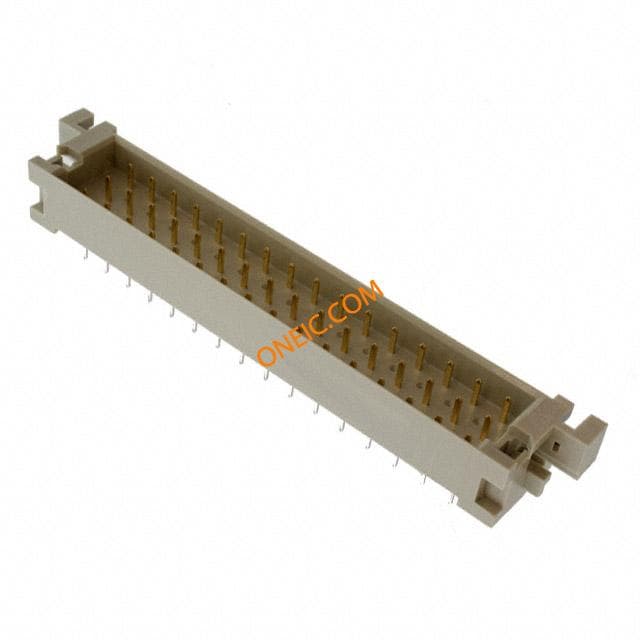

09050486924
Harting Technology Group
Gds A-E 48 Pin InterfaceI Level 2 DIN 41612 Connectors DIN-POWER SHELL DIN-POWER E048MS-4,0C1-2 DIN-PowerE048MS-4,0C1-2 Harting DIN 41612 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 e/c/a 直向 DIN 41612 插头, 焊接端接

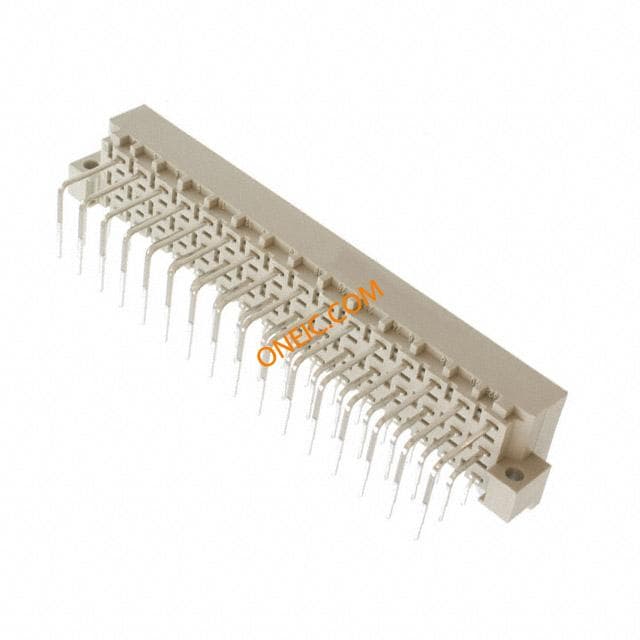

09051482921
