09051486931
| Manufacturer | |
| Description | DIN 41612 Connectors 48P MALE ANGLE PCB Conn Backplane M 48 POS 2.54mm Solder RA Thru-Hole DIN-POWER E048MS-3,0C1-2 Socket; DIN 41612,type E; male; PIN:48; a+c+e; THT; angled 90° Harting 09 05 系列 48 路 2.54mm 节距, E型, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 05 09 09-05-148-6931 148 6931 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 6 A |
Mechanical
| Depth | 17.72 | Pitch | 2.54 mm |
| Height | 16.1 | Weight | 0.02 kg |
| Packaging | Bulk | Orientation | angled 90° |
| Termination | Solder | Lead Spacing | len. 3mm |
| Mounting Type | Right | Connector Type | Header, Male Pins |
| Contact Finish | Gold | Number of Rows | 3 |
| Contact Material | 铜合金 | Housing Material | 热塑性 |
| Length - Overall | 93.95 | Package Quantity | 15 |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Termination Style | Solder | Number of Contacts | 48 |
| Number of Positions | 48 (Power) | Material - Insulation | Thermoplastic, Glass Filled |
| 1st Connector Mounting Feature | a+c+e | ||
Product Info
| Spg | 15 | Type | Backplane |
| Style | E | Gender | M |
| Series | 09 05 | Number of Units | 1 |
| Outlet Types and Quantity | A/c | Number of Positions Loaded | All |
Environmental
| Level, Class | 2 | Operating Temperature | +125°C |
Similar Parts
09052486832
HARTING

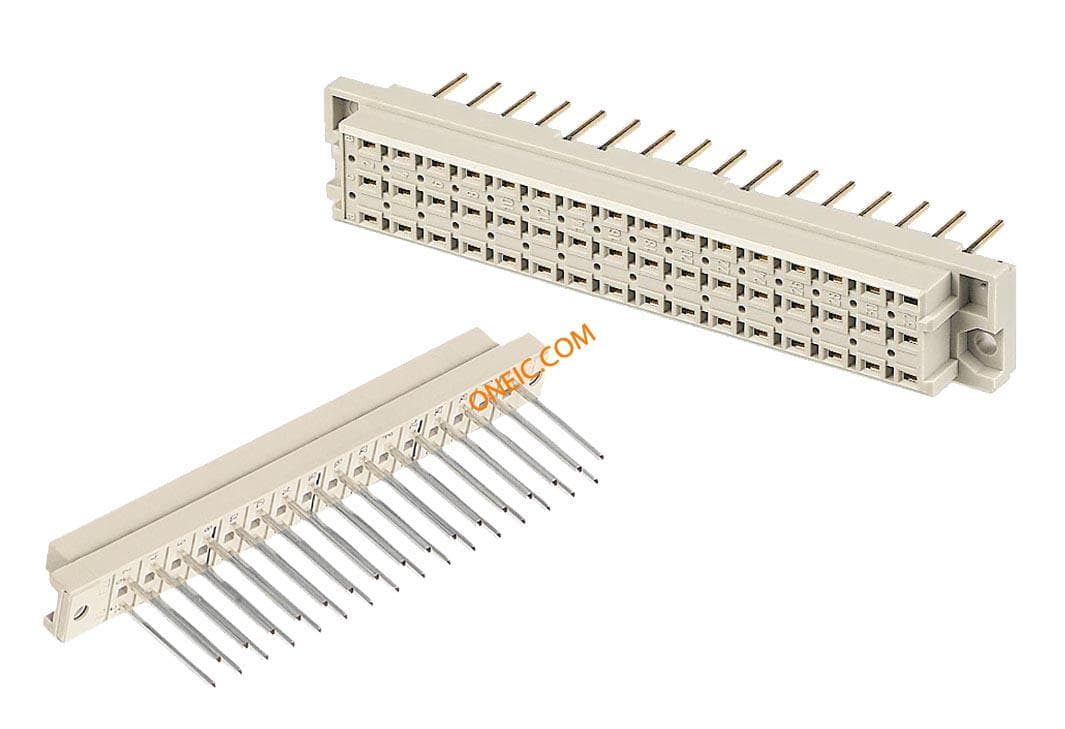

DIN 41612 Connectors DIN-POWER E048FS-2,9C1-2 TYPE E FEMALE CONNECTOR SOLDER 2,9 48POL DIN-POWER E048FS-2,9C1-2 DIN-PowerE048FS-2,9C1-2
09052486823
HARTING

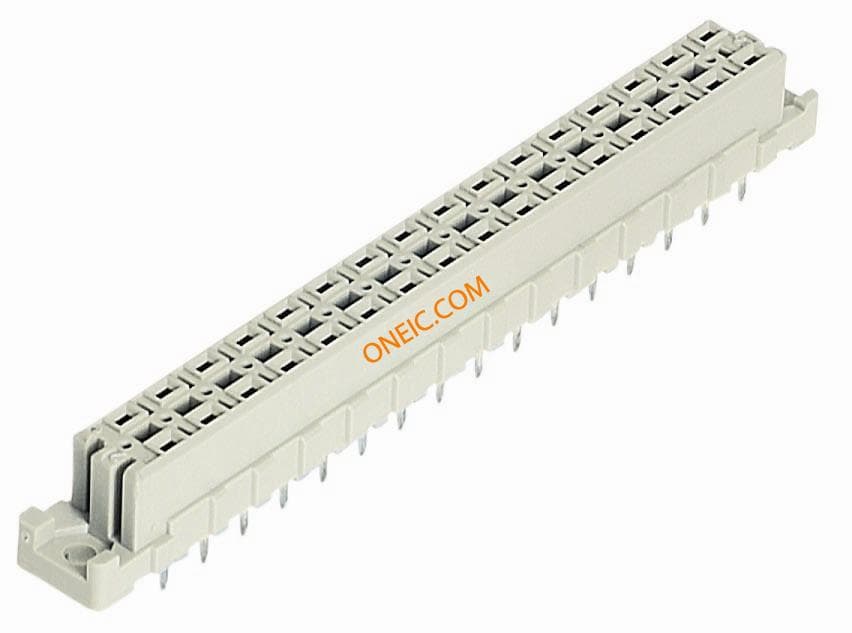

DIN 41612 Connectors DIN-POWER E048FL-8,0C1-2 Conn DIN 41612 F 48 POS 5.08mm Solder Lug ST Panel Mount DIN-POWER E048FL-8,0C1-2
09052486851
HARTING

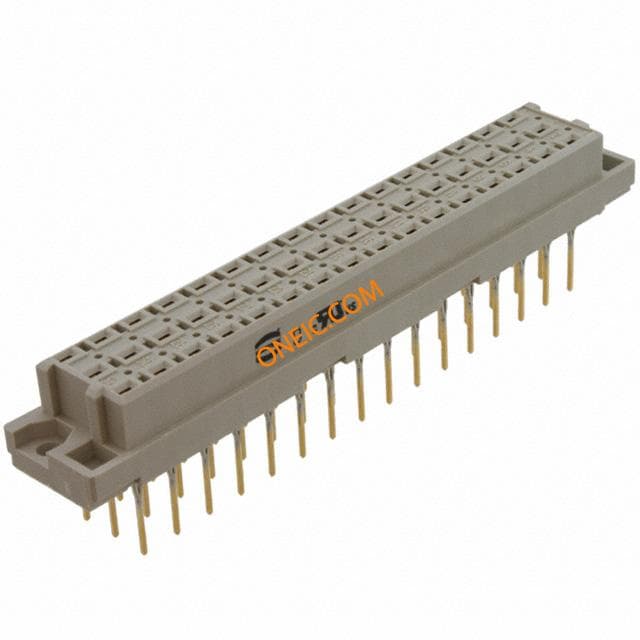

DIN 41612 Connectors DIN-POWER E048FP-11,5C1-2 Conn Backplane F 48 POS 5.08mm Press Fit ST Thru-Hole DIN-POWER E048FP-11,5C1-2
09052486831
Harting Technology Group

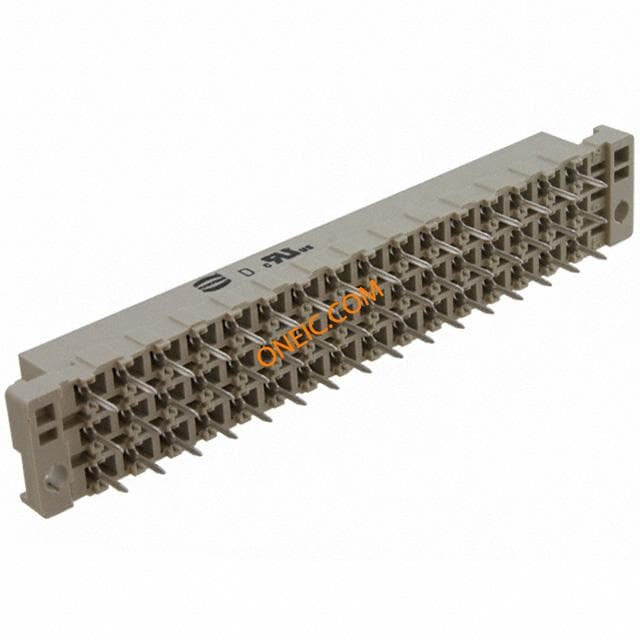

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER E048FS-4,5C1-2 Connector DIN-Power solder 48-way f ConnectorDIN-Powersolder48-wayf Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e 直向 DIN 41612 插座, 焊接端接
