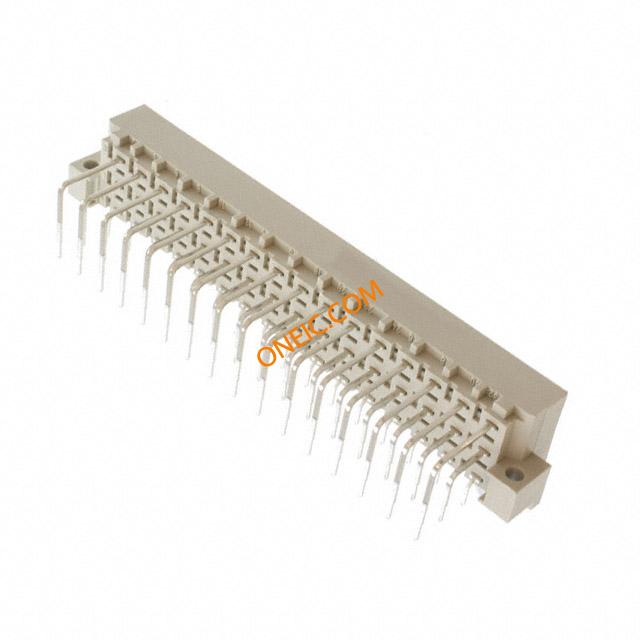

点击放大查看
09051482921
| Manufacturer | |
| Description | DIN-POWER E048MS-3,0C1-1 DIN 41612 Connectors DINPWRE048MS-3,0C1-1 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 05 系列 48 路 5.08mm 节距, E型 C1等级, 3 行 a/c/e, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 05 09 09-05-148-2921 148 2921 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 6A |
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Male Pins |
| Contact Finish | Gold | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Rows | a/b/c | Termination Style | Solder |
| Number of Contacts | 48 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | E | Style | E |
| Gender | Male | Series | 09 05 |
| Class Code | C1 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/c/e |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C1 | Level, Class | 1 |
| Operating Temperature | +125°C | ||
