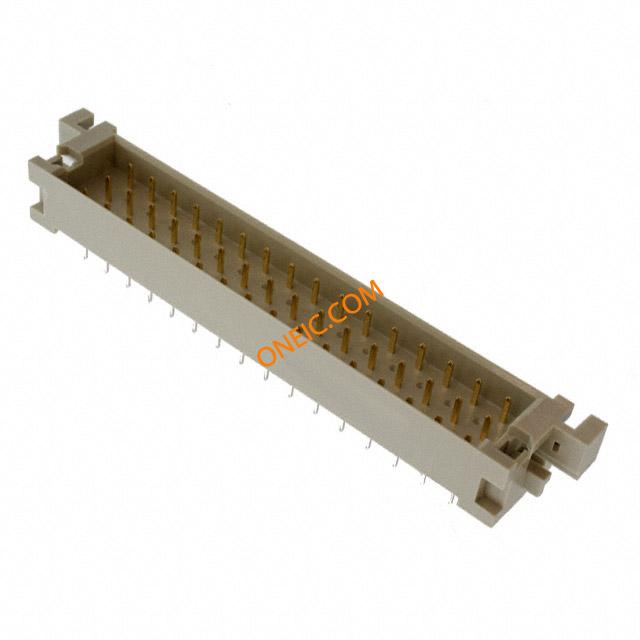

09050486924
| Manufacturer | |
| Description | Gds A-E 48 Pin InterfaceI Level 2 DIN 41612 Connectors DIN-POWER SHELL DIN-POWER E048MS-4,0C1-2 DIN-PowerE048MS-4,0C1-2 Harting DIN 41612 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 e/c/a 直向 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 048 05 09 09-05-048-6924 6924 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 6A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Length - Tail | 4 mm | Mounting Type | Panel Mount; Through Hole |
| Connector Type | Header, Male Pins | Contact Finish | Gold |
| Number of Rows | 3 | Termination Rows | 焊接 |
| Termination Style | Solder Pin | Number of Contacts | 48 |
| Number of Positions | 48 (Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | E | Style | E |
| Series | DIN 41612 | Product Type | Plugs |
| Outlet Types and Quantity | E/c/a | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
Similar Parts
09052486832
HARTING
DIN 41612 Connectors DIN-POWER E048FS-2,9C1-2 TYPE E FEMALE CONNECTOR SOLDER 2,9 48POL DIN-POWER E048FS-2,9C1-2 DIN-PowerE048FS-2,9C1-2
09052486823
HARTING
DIN 41612 Connectors DIN-POWER E048FL-8,0C1-2 Conn DIN 41612 F 48 POS 5.08mm Solder Lug ST Panel Mount DIN-POWER E048FL-8,0C1-2
09052486851
HARTING
DIN 41612 Connectors DIN-POWER E048FP-11,5C1-2 Conn Backplane F 48 POS 5.08mm Press Fit ST Thru-Hole DIN-POWER E048FP-11,5C1-2
09052486831
Harting Technology Group
Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER E048FS-4,5C1-2 Connector DIN-Power solder 48-way f ConnectorDIN-Powersolder48-wayf Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e 直向 DIN 41612 插座, 焊接端接
09020009920
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET RIGHT FixingBracket;Fixing;Male;ShellhousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器

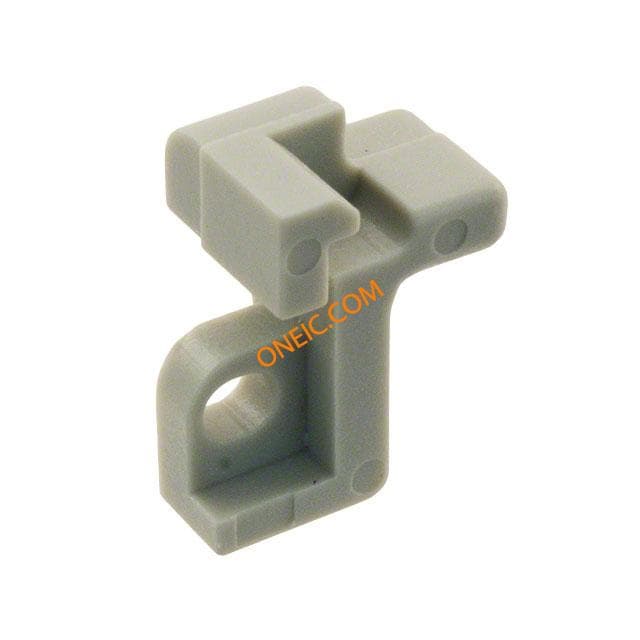

09020009919
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET LEFT FixingBracket;Fixing;Male;ShellHousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器
09052486821
Harting Technology Group
Conn DIN 41612 F 64 POS 3.81mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRE048FW20,0C1-2 DIN-POWER E048FW-20,0C1-2 Connector DIN-Power wrap-post 48-way f ConnectorDIN-Powerwrap-post48-wayf Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e 直向 DIN 41612 插座, 绕线端接

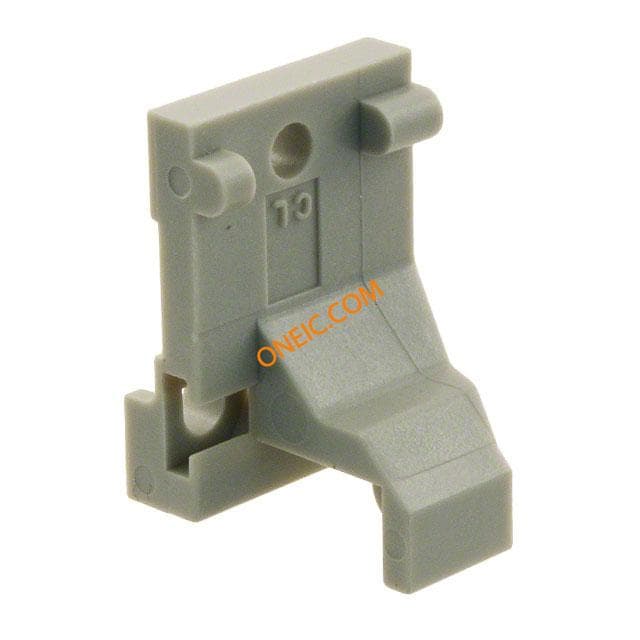

09020009921
