09051486921
| Manufacturer | |

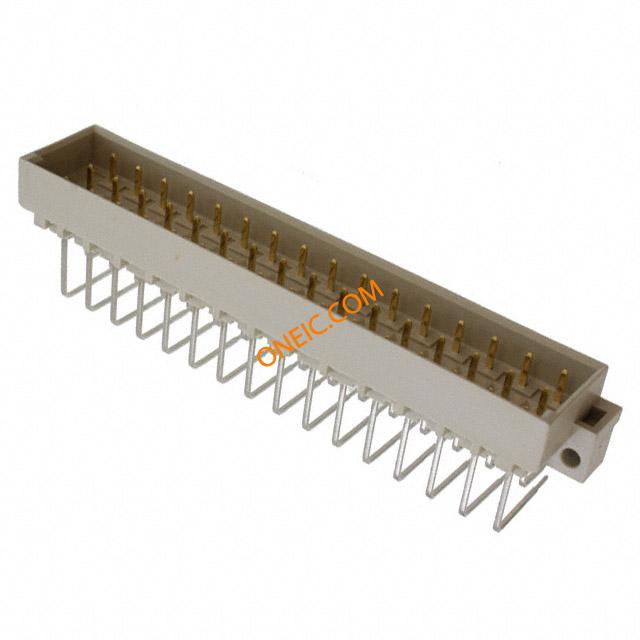

| Description | Conn Shrouded Header M 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 48P 6A MALE R/A SLDR DIN-POWER E048MS-3,0C1-2 Connector DIN-Power solder 48-way m DINConnector;48;6A(Max.);5.08mm(Row);Male;AngledSolderPin;3mm Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 05 09 09-05-148-6921 148 6921 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 6A |
Mechanical
| Depth | 22.8 | Pitch | 0.200" (5.08mm) |
| Height | 16.1 | Length | 3mm |
| Packaging | Bulk | Shell Size | E |
| Orientation | 直角 | Termination | Solder |
| Length - Pin | 3mm | Length - Tail | 3 mm |
| Mounting Type | Right Angle | Angle of Throw | Right |
| Connector Type | Header, Male Pins | Contact Finish | Gold Over Nickel |
| Number of Pins | 48 | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 93.95mm | Primary Material | IDC |
| Termination Rows | a/b/c | Pin Hole Diameter | 5.08mm |
| Termination Style | Solder Pin | Number of Contacts | 48 |
| Number of Positions | 48 (Power) | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 0.05" | ||
Product Info
| Type | Shrouded Header | Style | E |
| Gender | M | Series | 09 05 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Manufacturer | IDC | Outlet Types and Quantity | A/c/e |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Distance | 3.0mm(Min.) |
| Level, Class | 2 | Operating Temperature | +125°C |
