09052486832
| Manufacturer | |

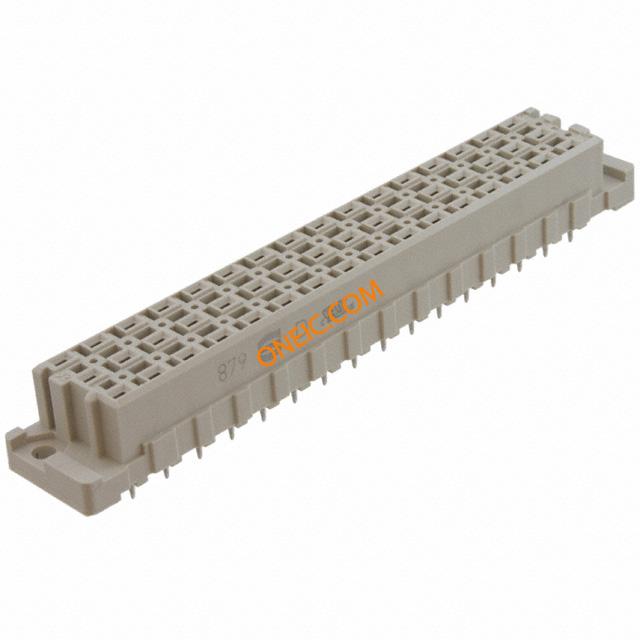

| Description | DIN 41612 Connectors DIN-POWER E048FS-2,9C1-2 TYPE E FEMALE CONNECTOR SOLDER 2,9 48POL DIN-POWER E048FS-2,9C1-2 DIN-PowerE048FS-2,9C1-2 |
| Category |
Business
| Part # Aliases | 05 09 09-05-248-6832 248 6832 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 6 A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Termination | Solder | Mounting Type | Panel Mount; Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 32 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | D | Style | E |
| Product Type | Receptacles | Number of Positions Loaded | All |
Environmental
| Level, Class | 2 | Operating Temperature | - 55 C to + 125 C |
