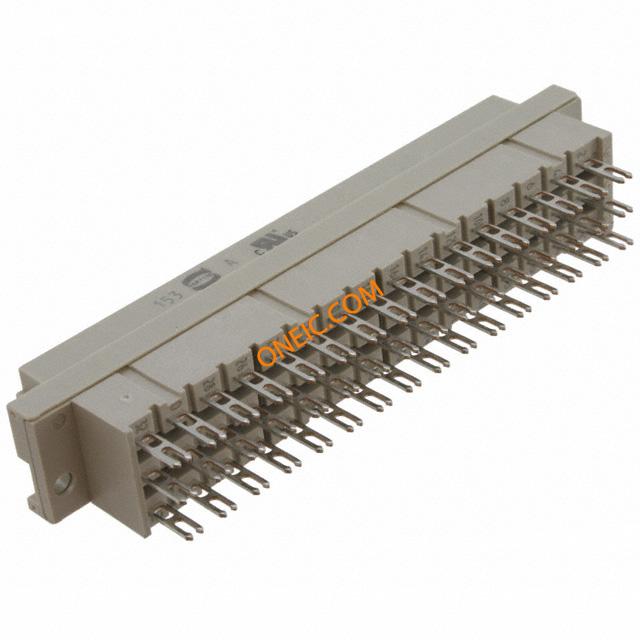

09052486823
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-POWER E048FL-8,0C1-2 Conn DIN 41612 F 48 POS 5.08mm Solder Lug ST Panel Mount DIN-POWER E048FL-8,0C1-2 |
| Category |
Business
| Part # Aliases | 05 09 09-05-248-6823 248 6823 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 15 | Current Rating (Max) | 6 |
Mechanical
| Depth | 28.03 | Pitch | 0.200" (5.08mm) |
| Height | 15.6 | Packaging | Bulk |
| Termination | Solder Lug | Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94.9 |
| Number of Contacts | 48 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | E |
| Gender | F | Number of Positions Loaded | All |
Environmental
| Level, Class | 2 | ||
