09052486821
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 3.81mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRE048FW20,0C1-2 DIN-POWER E048FW-20,0C1-2 Connector DIN-Power wrap-post 48-way f ConnectorDIN-Powerwrap-post48-wayf Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e 直向 DIN 41612 插座, 绕线端接 |
| Category |
Business
| Part # Aliases | 05 09 09-05-248-6821 248 6821 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 6A |
Mechanical
| Depth | 15.6 | Pitch | 0.200" (5.08mm) |
| Height | 11.5 | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94.9 | Termination Rows | a/b/c |
| Number of Contacts | 64 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | E |
| Gender | F | Series | 09 05 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/c/e | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
Similar Parts
09051486931
HARTING
DIN 41612 Connectors 48P MALE ANGLE PCB Conn Backplane M 48 POS 2.54mm Solder RA Thru-Hole DIN-POWER E048MS-3,0C1-2 Socket; DIN 41612,type E; male; PIN:48; a+c+e; THT; angled 90° Harting 09 05 系列 48 路 2.54mm 节距, E型, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接

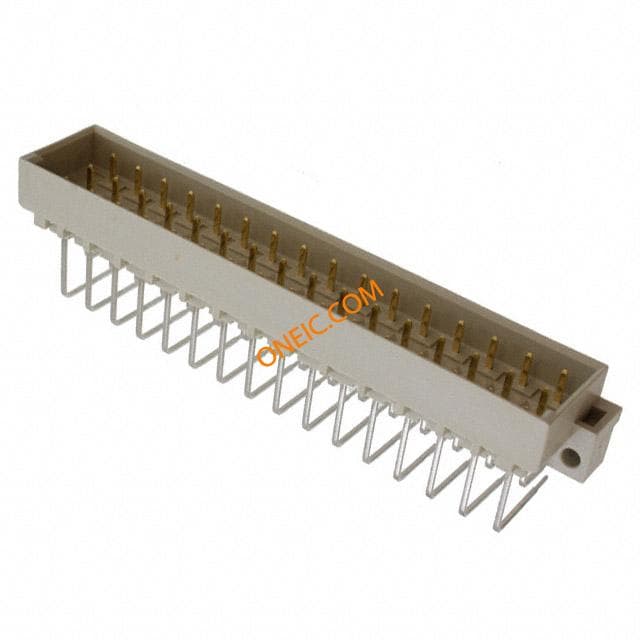

09051486921
Harting Technology Group
Conn Shrouded Header M 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 48P 6A MALE R/A SLDR DIN-POWER E048MS-3,0C1-2 Connector DIN-Power solder 48-way m DINConnector;48;6A(Max.);5.08mm(Row);Male;AngledSolderPin;3mm Harting 09 05 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 a/c/e, 直角 DIN 41612 插头, 焊接端接
09050486924
Harting Technology Group
Gds A-E 48 Pin InterfaceI Level 2 DIN 41612 Connectors DIN-POWER SHELL DIN-POWER E048MS-4,0C1-2 DIN-PowerE048MS-4,0C1-2 Harting DIN 41612 系列 48 路 5.08mm 节距, E型 C2等级, 3 行 e/c/a 直向 DIN 41612 插头, 焊接端接

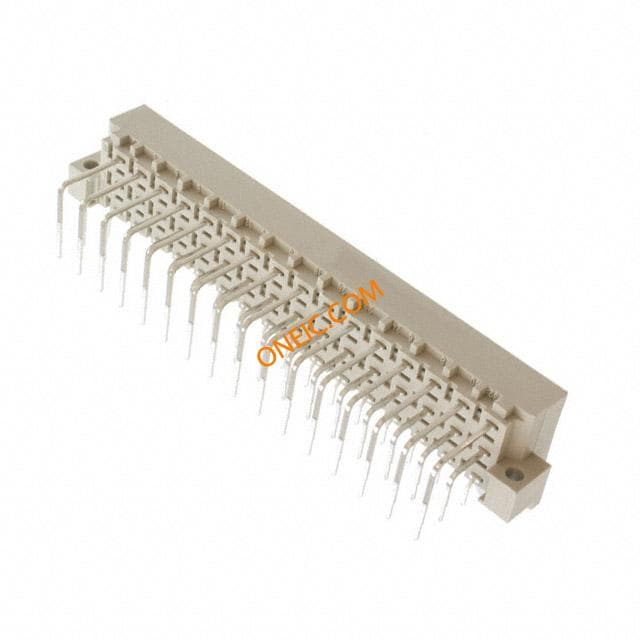

09051482921
