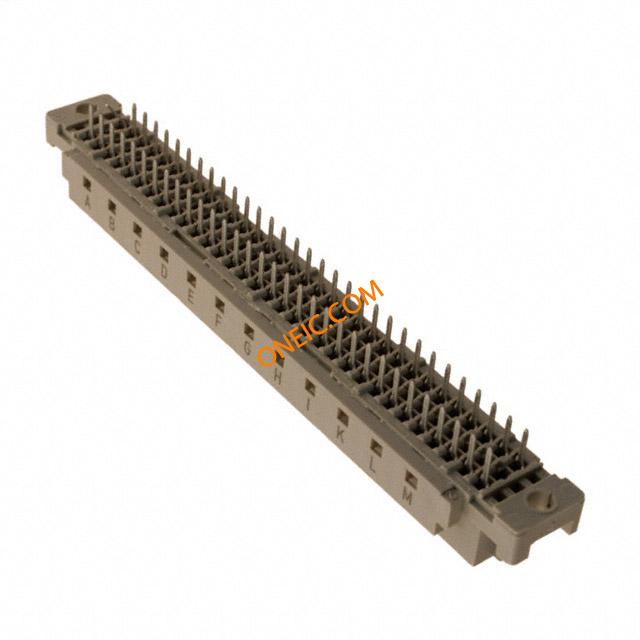

09037646825
| Manufacturer | |
| Description | DIN-SIGNAL C064FS-4,5C1-2-COD DIN 41612 Connectors 64P FML STRT TYPE C Connector DIN-Signal solder 64-way f ConnectorDIN-Signalsolder64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-764-6825 6825 764 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Rows | a/c | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | C | Style | C |
| Gender | Female | Series | 09 03 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/c | Number of Positions Loaded | 64 |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
