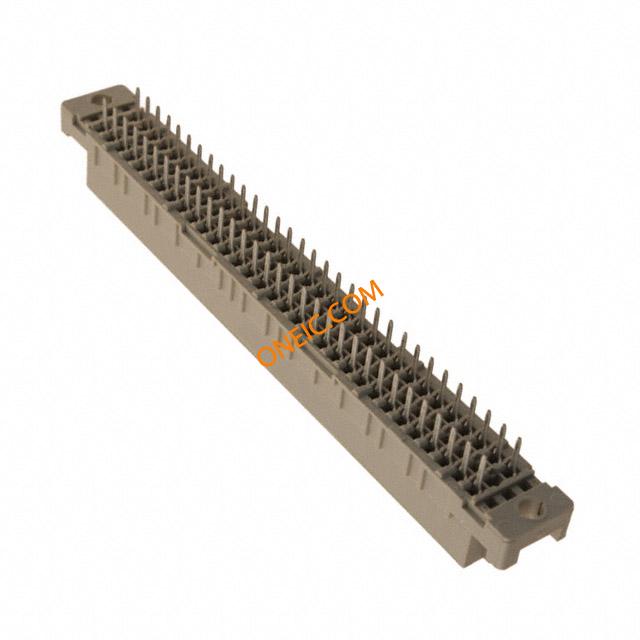

09032646825
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-4,5C1-2 64 way 3 row DIN41612 socket,4mm GdsA-CSeries,StrghtSolderPins-.125PCB(.275Long),Female,64Contacts Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-264-6825 264 6825 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.5 mm | Pitch | 0.100" (2.54mm) |
| Height | 11.6 mm | Weight | 0.02 kg |
| Packaging | Bulk | Shell Size | C |
| Orientation | straight | Termination | Solder |
| Weight (g): | 12.80000 | Lead Spacing | len. 4.5mm |
| Length - Pin | 4.5mm | Length - Tail | 4.5 mm |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94.9 mm | Package Quantity | 20 |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Connector - Cable | plug | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+c | ||
Product Info
| Spg | 20 | Type | DIN 41612 |
| Style | C | Gender | F |
| Features | Backplane | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
