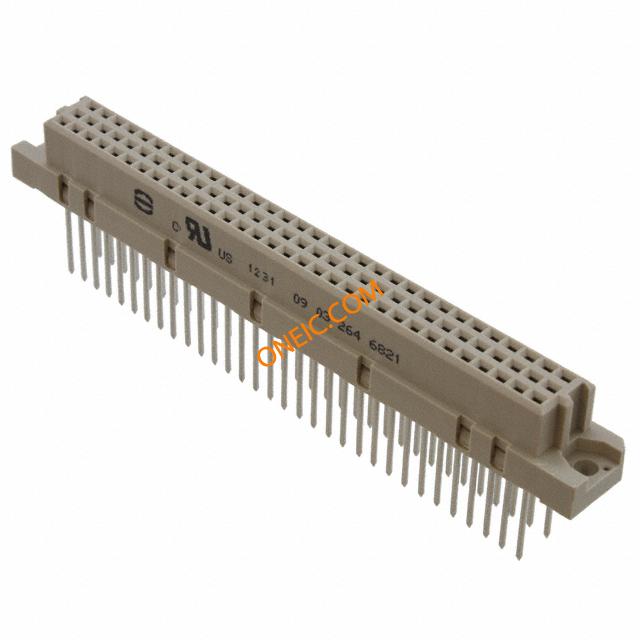

09032646821
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole DIN 41612 Connectors 64P TYPE C FEMALE STRT WRAP POST DIN-SIGNAL C064FW-13,0C1-2 64 way 3 row DIN41612 socket,13mm Plug; DIN 41612,type C; female; PIN:64; a+c; wrapped connections Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 绕线端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-264-6821 264 6821 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.6 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Weight | 0.02 kg |
| Packaging | Bulk | Orientation | straight |
| Termination | Wire Wrap | Lead Spacing | len. 13mm |
| Mounting Type | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Palladium Nickel | Number of Rows | 2 |
| Length - Overall | 95 | Package Quantity | 20 |
| Termination Rows | 绕线 | Connector - Cable | plug |
| Termination Style | Wire Wrap | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Contact Material - Plating | gold plated | 1st Connector Mounting Feature | a+c |
Product Info
| Spg | 20 | Type | DIN 41612 |
| Style | C | Gender | F |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Number of Units | 1 | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
