09032646421
| Manufacturer | |

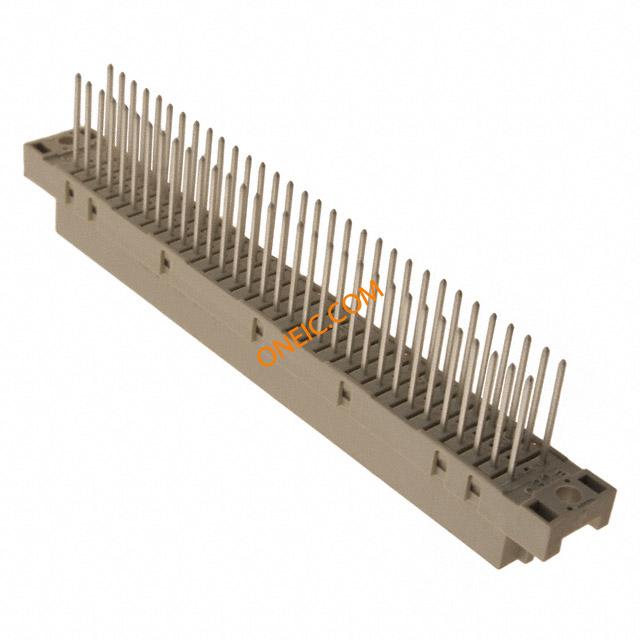

| Description | DIN-SIGNAL C064FS-13,0C1-2 DIN 41612 Connectors 64P FEMALE TYPE C STRT WRAP POSTS Connector Type C solder 64-way f ConnectorTypeCsolder64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-264-6421 264 6421 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Rows | a/c | Termination Style | Solder |
| Number of Contacts | 64 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | C | Style | C |
| Gender | Female | Series | 09 03 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
Similar Parts
09031646921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE R/A SLDR DIN-SIGNAL C064MS-3,0C1-2 64 way 3 row DIN41612 plug,r/a terminals BackPlaneConnector;64;2A(Max.);2.54mm(Row);Male;AngledSolderPin Socket; DIN 41612,type C; male; PIN:64; a+c; THT; angled 90°; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09031647921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE C 2.54MM STANDARD DIN-SIGNAL C064MS-3,0C1-3 64 way 3 row DIN41612 plug,r/a terminals Harting 64 路 2.54mm 节距, C型 C3等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09036646921
Harting Technology Group
Conn Shrouded Header HDR 32 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE C DIN-SIGNAL C064MS-3,0C1-2-COD
09031646922
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P MALE STRT TYPE C 2.54MM STANDARD DIN-SIGNAL C064MS-3,0C1-2 Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Socket; DIN 41612,type C; male; PIN:64; a+c; THT; straight; 2A Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插头, 焊接端接
09031642921
Harting Technology Group
Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE RIGHT ANGLE DIN-SIGNAL C064MS-3,0C1-1 64 way 3 row DIN41612 plug,r/a terminals DIN;BackplaneConnector Harting 64 路 2.54mm 节距, C型 C1等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
09033646921
Harting
DIN-SIGNAL C064MS-3,0C1-2-CLIP DIN 41612 Connectors 64P MALE RA TYPE C Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接

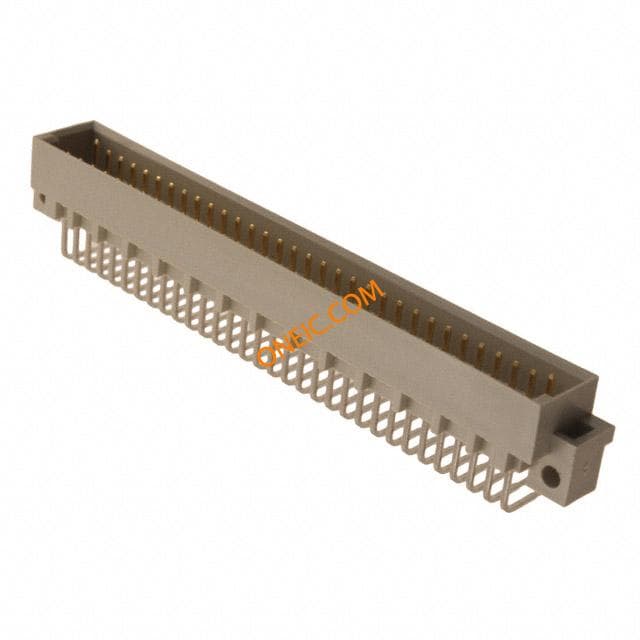

09031646951
