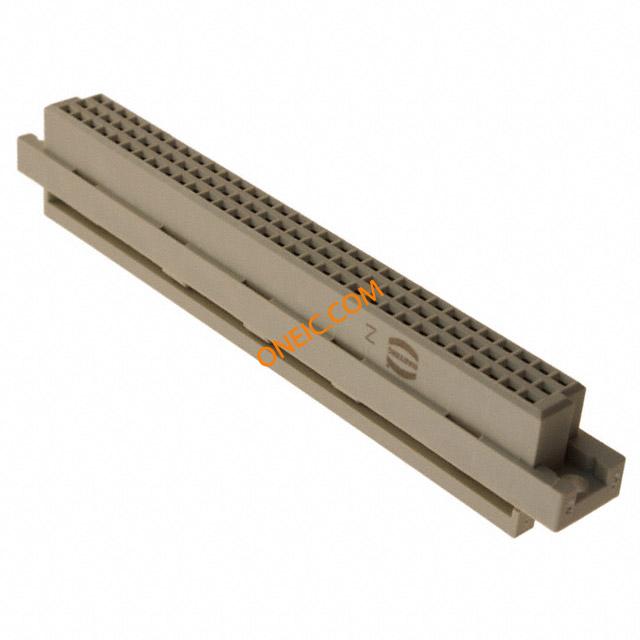

09032647828
| Manufacturer | |
| Description | DIN-SIGNAL C064FD-C1-3 DIN 41612 Connectors 64P FEMALE TYPE C IDC STANDARD Connector DIN-Signal 64-way f ConnectorDIN-Signal64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C3等级, 3 行 a/c, 直角 DIN 41612 插座, IDT端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-264-7828 264 7828 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Wire Gauge | 28 | Orientation | 直角 |
| Termination | IDC | Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Rows | a/c |
| Number of Contacts | 64 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | C | Style | C |
| Gender | Female | Series | 09 03 |
| Class Code | C3 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C3 | Level, Class | 3 |
| Operating Temperature | +125°C | ||
