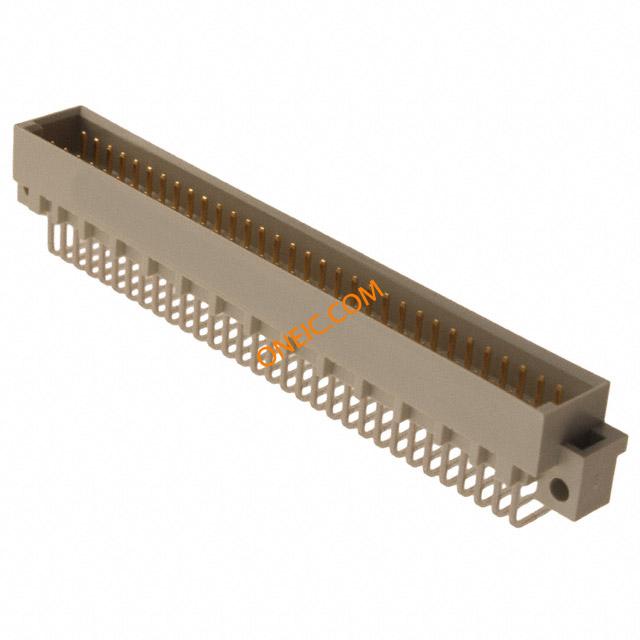

点击放大查看
09031642921
| Manufacturer | |
| Description | Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE RIGHT ANGLE DIN-SIGNAL C064MS-3,0C1-1 64 way 3 row DIN41612 plug,r/a terminals DIN;BackplaneConnector Harting 64 路 2.54mm 节距, C型 C1等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-164-2921 164 2921 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 17.72 | Pitch | 0.100" (2.54mm) |
| Height | 11 | Packaging | Bulk |
| Shell Size | C | Orientation | 直角 |
| Termination | Solder | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Length - Overall | 94mm |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Pin Hole Diameter | 2.54mm | Termination Style | Solder Pin |
| Number of Contacts | 64 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | Mounting Hole Diameter | 2.8mm |
Product Info
| Type | Shrouded Header | Style | C |
| Gender | M | Features | Backplane |
| CAD Drawing | 3D CAD Model | Product Type | Plugs |
| Outlet Types and Quantity | A/c | Number of Positions Loaded | 64 |
Environmental
| Ratings | C1 | Level, Class | 1 |
