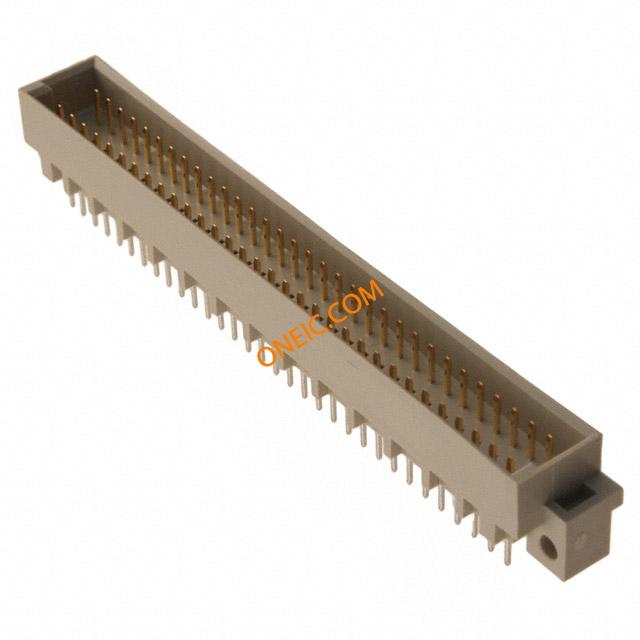

09031646922
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P MALE STRT TYPE C 2.54MM STANDARD DIN-SIGNAL C064MS-3,0C1-2 Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Socket; DIN 41612,type C; male; PIN:64; a+c; THT; straight; 2A Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-164-6922 164 6922 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Pitch | 0.100" (2.54mm) | Height | 11 mm |
| Weight | 0.01 kg | Packaging | Bulk |
| Orientation | straight | Termination | Solder |
| Lead Spacing | len. 3mm | Mounting Type | Straight |
| Connector Type | Header, Male Pins | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 mm | Package Quantity | 10 |
| Termination Rows | a/c | Connector - Cable | socket |
| Termination Style | Solder | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Contact Finish Thickness | Flash | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+c | ||
Product Info
| Spg | 10 | Type | DIN 41612 |
| Style | C | Gender | F |
| Series | 09 03 | Class Code | C2 |
| CAD Drawing | 3D CAD Model | Product Type | Plugs |
| Number of Units | 1 | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | +125°C |
Similar Parts
09032646851
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FPW-13,2C1-2 DIN-SIGNAL C064FPW-13,2C1-2 Connector DIN-Signal press-in 64-way f ConnectorDIN-Signalpress-in64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 按式端接
09032646878
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FW-13,0C1-2 DIN-SIGNAL C064FW-13,0C1-2 Connector DIN-Signal wrap-post 64-way f Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole ConnectorDIN-Signalwrap-post64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 绕线端接
09032646823
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FL-5,2C1-2 Conn DIN 41612 F 64 POS 2.54mm Solder Lug ST Thru-Hole DIN-SIGNAL C064FL-5,2C1-2 Connector DIN-Signal solder 64-way f DIN-SignalC064FL-5,2C1-2 Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接

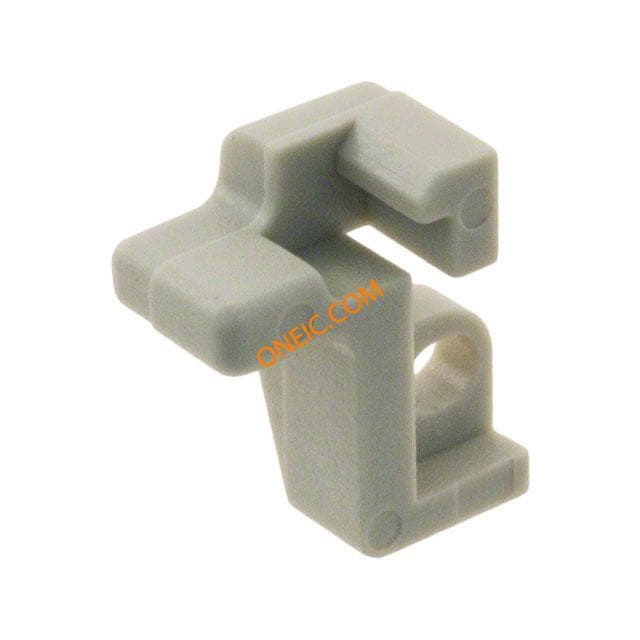

09020009920
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET RIGHT FixingBracket;Fixing;Male;ShellhousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器
09032646825
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-4,5C1-2 64 way 3 row DIN41612 socket,4mm GdsA-CSeries,StrghtSolderPins-.125PCB(.275Long),Female,64Contacts Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接

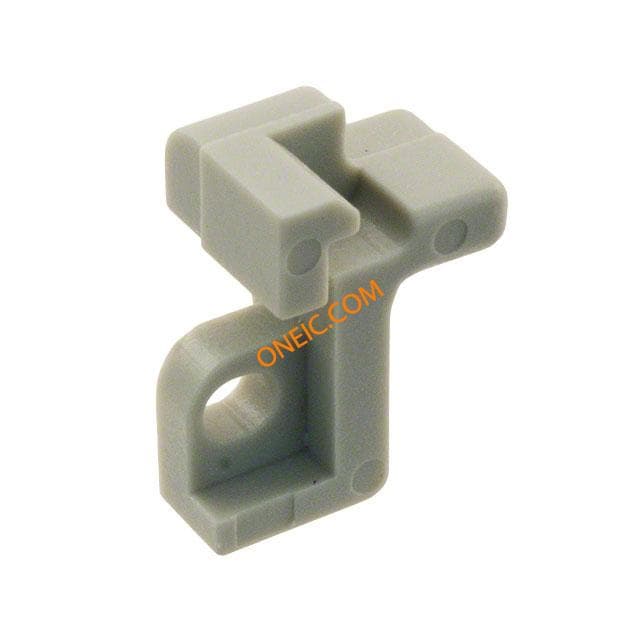

09020009919
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET LEFT FixingBracket;Fixing;Male;ShellHousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器
09032647825
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P FEMALE TYPE C STRT WRAP POSTS DIN-SIGNAL C064FS-4,5C1-3 64 way 3 row DIN41612 socket,4mm Harting 64 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032646861
Harting Technology Group
Conn Backplane F 64 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors C064FPW-13,2C1-2 DIN SIG DIN-SIGNAL C064FPW-13,2C1-2 Connector DIN-Signal press-in 64-way f TYPE C FEMALE CONNECTOR PRESS-IN 132 64 POL . TERMINATION GOLD PLATED ConnectorDIN-Signalpress-in64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 按式端接
09032646821
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole DIN 41612 Connectors 64P TYPE C FEMALE STRT WRAP POST DIN-SIGNAL C064FW-13,0C1-2 64 way 3 row DIN41612 socket,13mm Plug; DIN 41612,type C; female; PIN:64; a+c; wrapped connections Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 绕线端接
09032646824
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-2,9C1-2 Connector DIN-Signal solder 64-way f Connector; Backplane; 2 A; Female; 64; Straight Solder Pin; 94.9 mm Connector;Backplane;2A;Female;64;StraightSolderPin;94.9mm Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接
09032646850
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FP-4,5C1-2 PCB DIN connector Type C 64-pin F PCBCONNECTOR64-PINF Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 按式端接

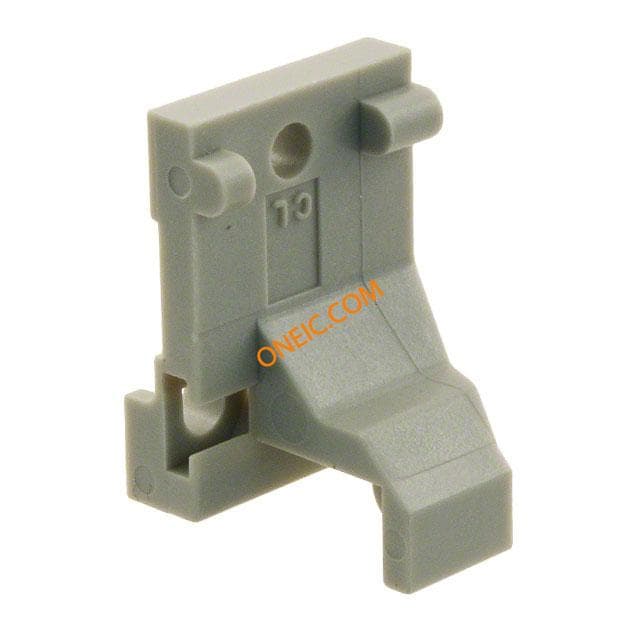

09020009921
Harting
DIN-SIGNAL FIXING BRACKET LEFT DIN 41612 Connectors LEFT FIXING BRKT TYPE M STANDARD

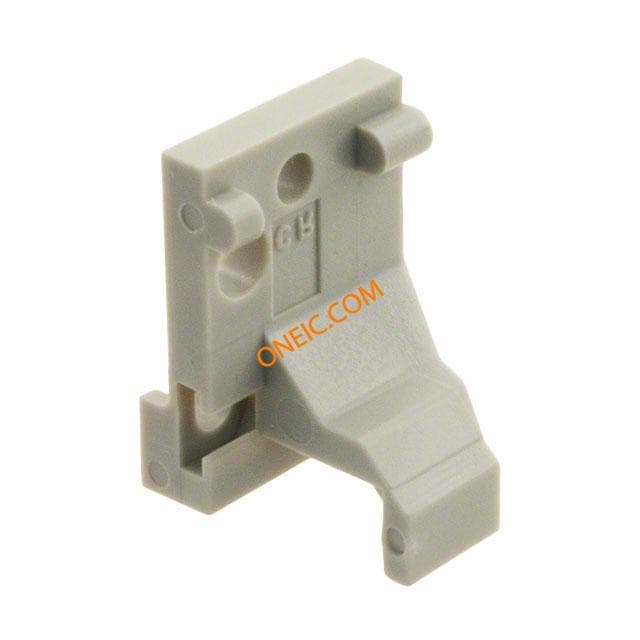

09020009922
