09031646921
| Manufacturer | |
| Description | Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE R/A SLDR DIN-SIGNAL C064MS-3,0C1-2 64 way 3 row DIN41612 plug,r/a terminals BackPlaneConnector;64;2A(Max.);2.54mm(Row);Male;AngledSolderPin Socket; DIN 41612,type C; male; PIN:64; a+c; THT; angled 90°; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-164-6921 164 6921 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 17.72 | Pitch | 0.100" (2.54mm) |
| Height | 11 | Length | 3mm |
| Weight | 0.01 kg | Packaging | Bulk |
| Shell Size | C | Orientation | angled 90° |
| Termination | Solder | Weight (g): | 13.44901 |
| Lead Spacing | len. 3mm | Length - Pin | 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Angle of Throw | Right | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94mm | Package Quantity | 8 |
| Primary Material | Industrial | Termination Rows | 焊接 |
| Connector - Cable | socket | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | a+c | ||
Product Info
| Spg | 8 | Type | Shrouded Header |
| Style | C | Gender | M |
| Features | Backplane | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Distance | 1.2mm(Min.) |
| Level, Class | 2 | Mechanical Life | 400cycles |
| Operating Temperature | -55...125°C | ||
Similar Parts

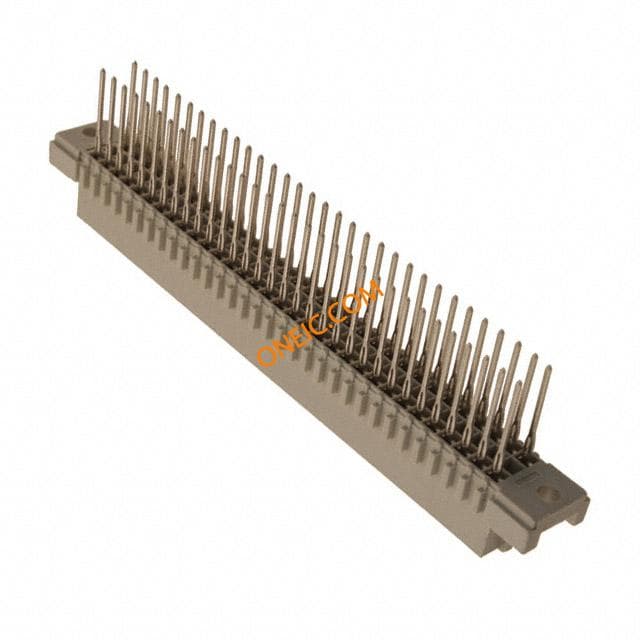

09032646851
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FPW-13,2C1-2 DIN-SIGNAL C064FPW-13,2C1-2 Connector DIN-Signal press-in 64-way f ConnectorDIN-Signalpress-in64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 按式端接

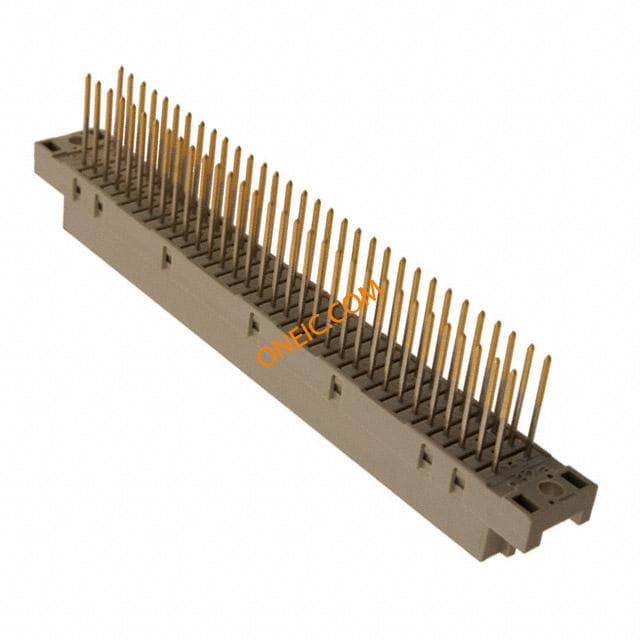

09032646878
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FW-13,0C1-2 DIN-SIGNAL C064FW-13,0C1-2 Connector DIN-Signal wrap-post 64-way f Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole ConnectorDIN-Signalwrap-post64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 绕线端接

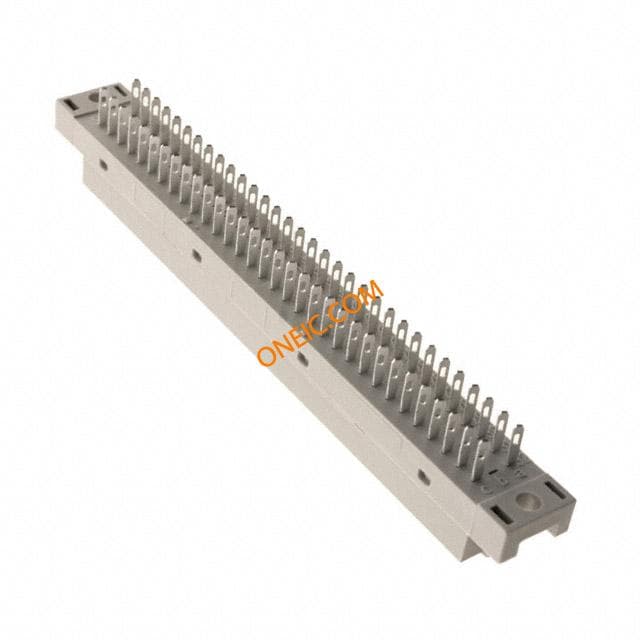

09032646823
HARTING
DIN 41612 Connectors DIN-SIGNAL C064FL-5,2C1-2 Conn DIN 41612 F 64 POS 2.54mm Solder Lug ST Thru-Hole DIN-SIGNAL C064FL-5,2C1-2 Connector DIN-Signal solder 64-way f DIN-SignalC064FL-5,2C1-2 Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接

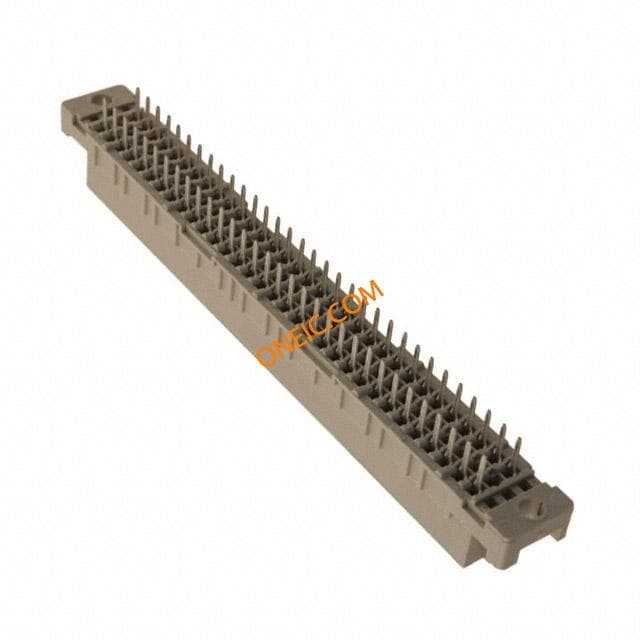

09032646825
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-4,5C1-2 64 way 3 row DIN41612 socket,4mm GdsA-CSeries,StrghtSolderPins-.125PCB(.275Long),Female,64Contacts Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接

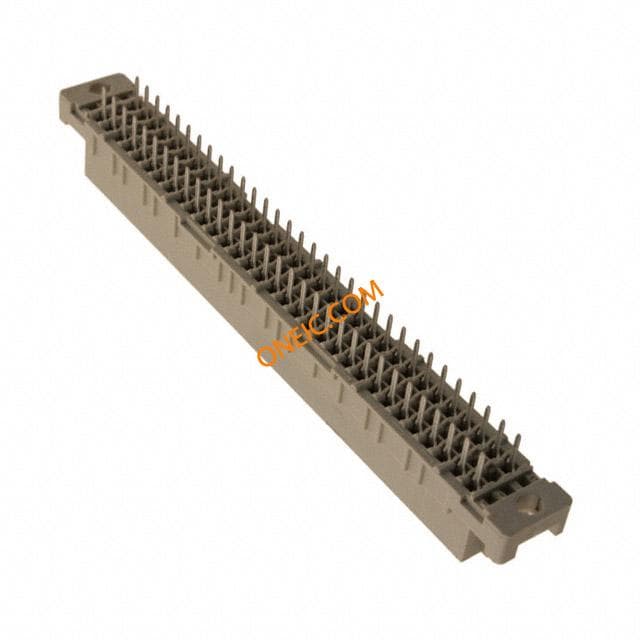

09032647825
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P FEMALE TYPE C STRT WRAP POSTS DIN-SIGNAL C064FS-4,5C1-3 64 way 3 row DIN41612 socket,4mm Harting 64 路 2.54mm 节距, C型 C3等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
09032646861
Harting Technology Group
Conn Backplane F 64 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors C064FPW-13,2C1-2 DIN SIG DIN-SIGNAL C064FPW-13,2C1-2 Connector DIN-Signal press-in 64-way f TYPE C FEMALE CONNECTOR PRESS-IN 132 64 POL . TERMINATION GOLD PLATED ConnectorDIN-Signalpress-in64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 按式端接

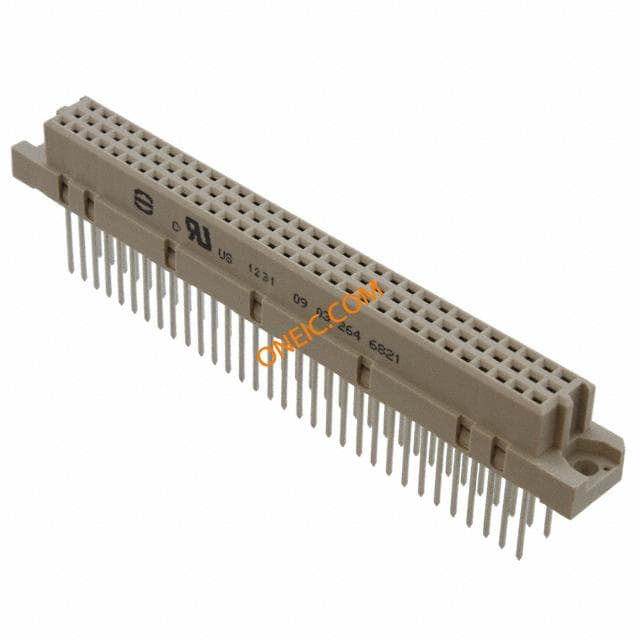

09032646821
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole DIN 41612 Connectors 64P TYPE C FEMALE STRT WRAP POST DIN-SIGNAL C064FW-13,0C1-2 64 way 3 row DIN41612 socket,13mm Plug; DIN 41612,type C; female; PIN:64; a+c; wrapped connections Harting 64 路 2.54mm 节距, C型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 绕线端接

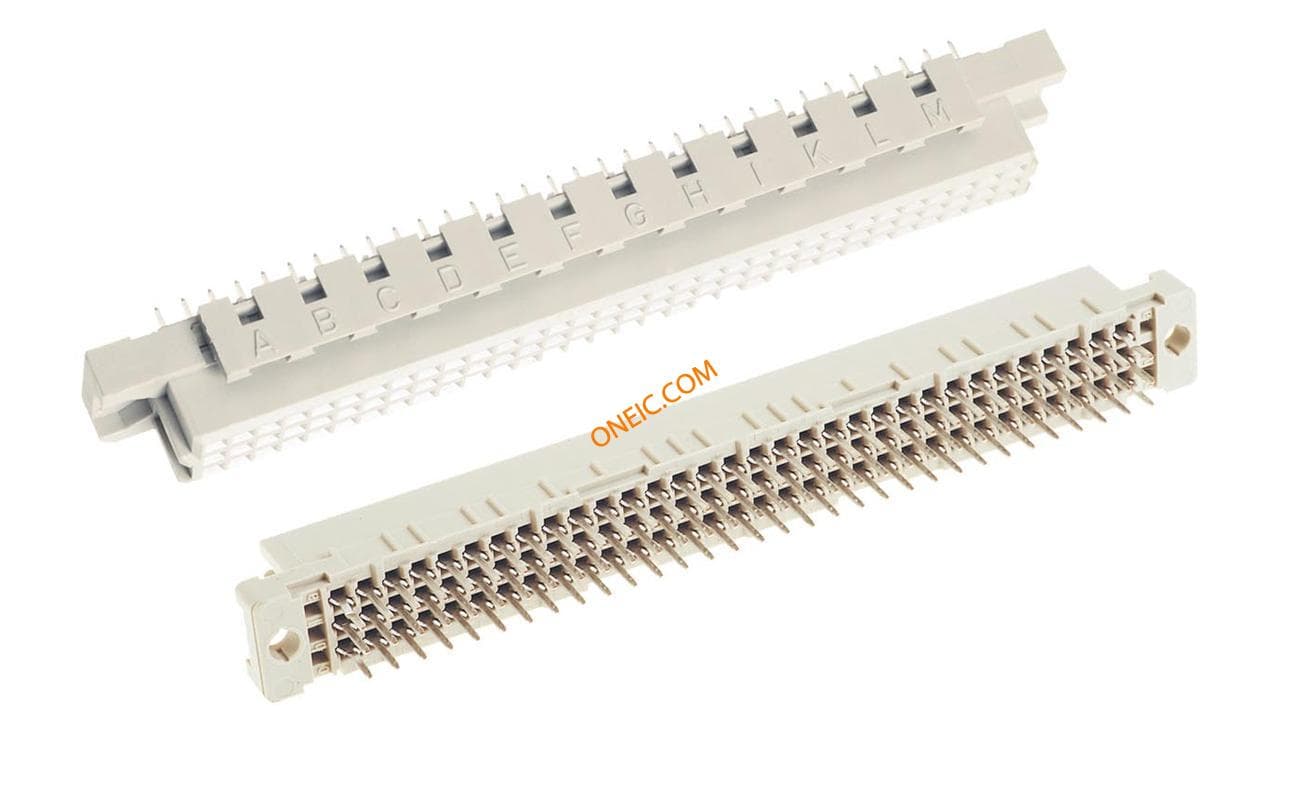

09032646855
Harting Technology Group
Conn Backplane F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors DIN-SIGNAL C064FS-2,9C1-2-KP DIN-SIGNAL C064FS-2,9C1-2-KP Connector DIN-Signal solder 64-way f ConnectorDIN-Signalsolder64-wayf Harting 09 03 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接

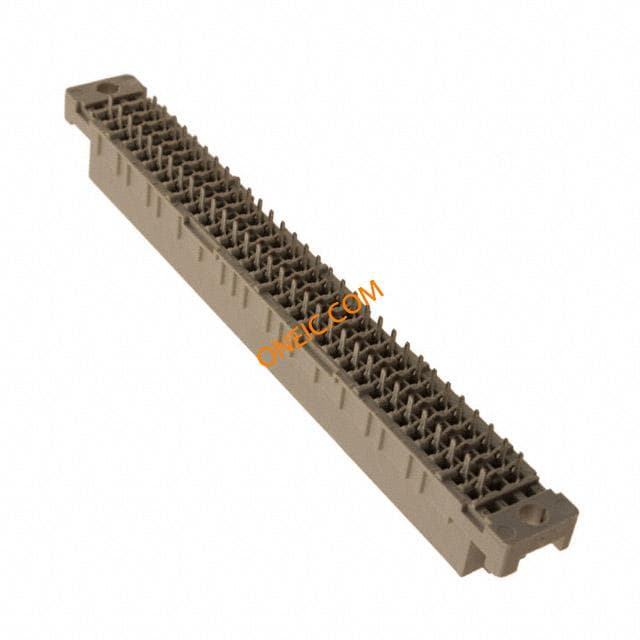

09032646824
Harting Technology Group
Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL C064FS-2,9C1-2 Connector DIN-Signal solder 64-way f Connector; Backplane; 2 A; Female; 64; Straight Solder Pin; 94.9 mm Connector;Backplane;2A;Female;64;StraightSolderPin;94.9mm Plug; DIN 41612,type C; female; PIN:64; a+c; THT; straight; 2A Harting 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c 直向 DIN 41612 插座, 焊接端接

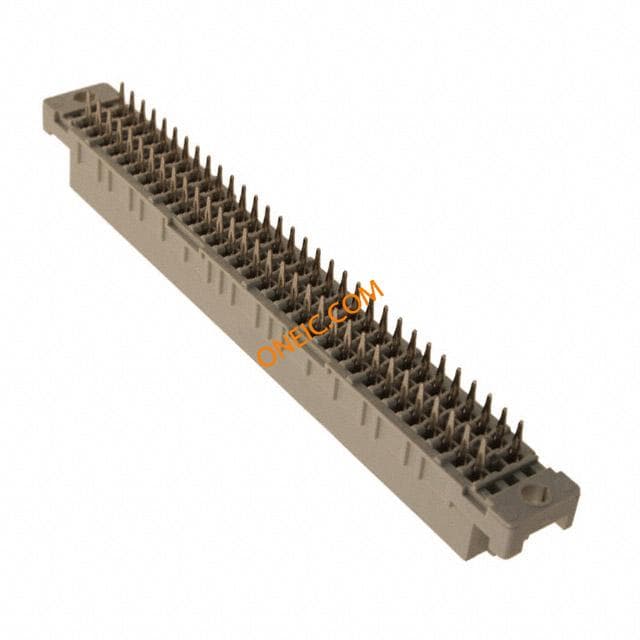

09032646850
