C016 30C006 200 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black |
| Category |
Business
| Part # Aliases | 81K1486 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250V | Contact Resistance | :5mohm |
| Current Rating (Max) | 12A | Insulation Resistance | :10Mohm |
Mechanical
| Color | Black | Weight | 0.021 |
| Packaging | Bulk | Wire Gauge | :20AWG |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 19.00000 |
| Contact Type | Pin | Mounting Type | Panel Mount |
| Release Force | :30N | Shell Plating | Polyamide |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Package / Case | :Panel Plug | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Number of Contacts | 6 |
| Contact Termination | :Solder | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Mounting Hole Diameter | 0.866 " | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | Mounting Panel Thickness | :31mm |
| Exterior Housing Material | :Polyamide 6.6/PA6 | Wire Gauge or Range - mm2 | :0.75mm² |
| 1st Connector Mounting Type | :Panel | Diameter - Outside, Non-Expanded | :12.5mm |
Product Info
| Type | Cable Socket | Gender | :Socket |
| Series | :ECOMATE | Features | Screw Locking |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
C016 30F006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座
C016 30D006 100 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

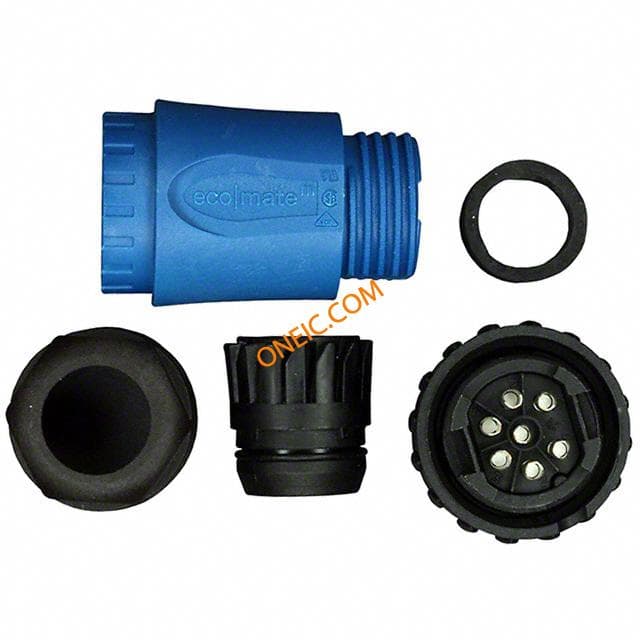

C016 30D006 200 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue

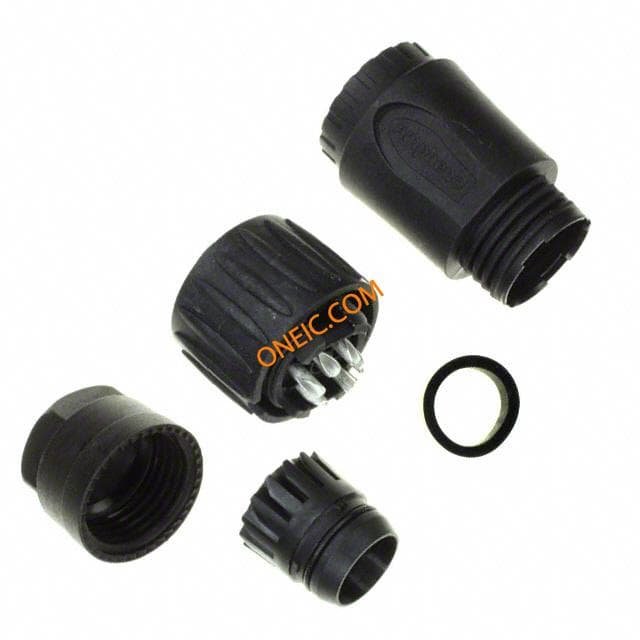

C016 30D006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点

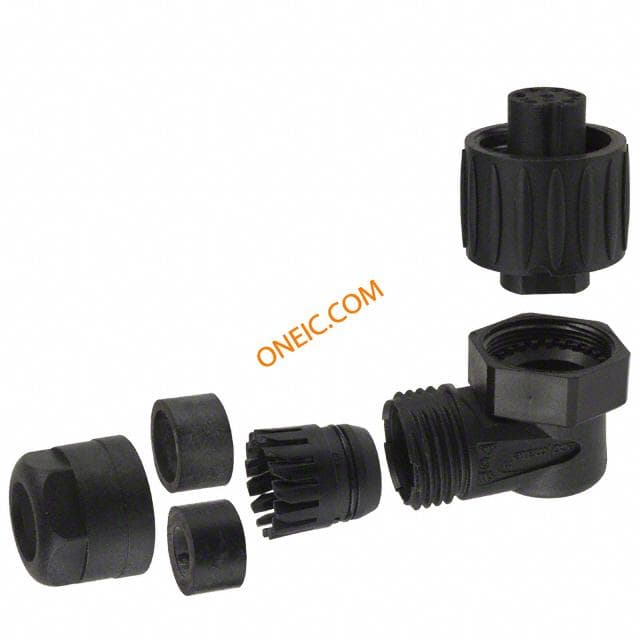

C016 10F006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLACK CRIMP CONN FMLE PLUG 6+PE R/A BLACK 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RCPT, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, black Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座

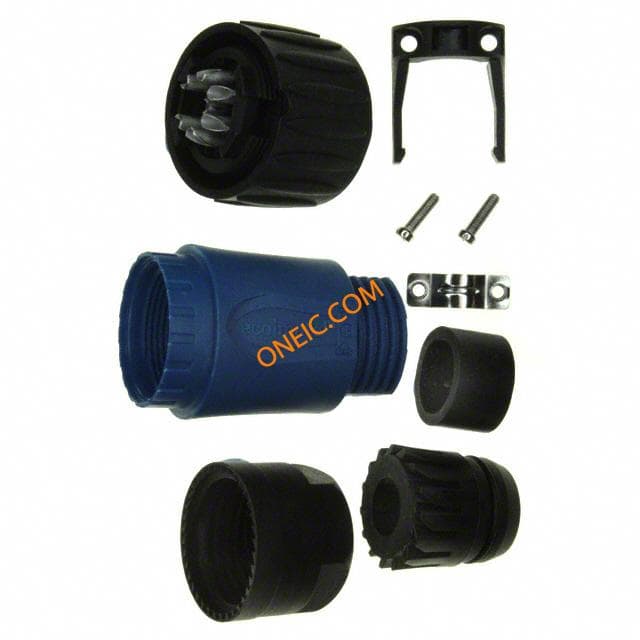

C016 30D006 210 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD IN ST RELF CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue
C016 30C006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black

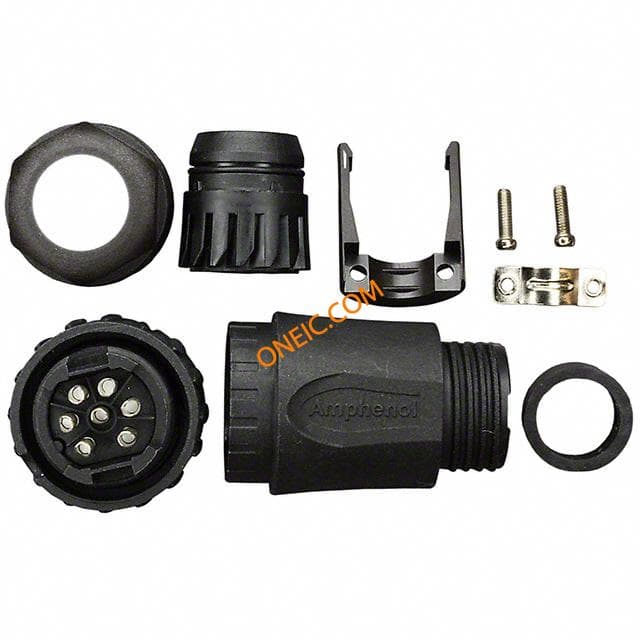

C016 30D006 210 12
