C016 20G003 200 12

Manufacturer	Amphenol Corporation
Description	Circular DIN Connectors 3+PE FEM RECEPT BLK SCREW GLD CONTACT CONN FEMALE RCPT 3+PE GOLD BLACK connector;plastic circ;female panel recept;3+gnd gold plt cont;screw term;black SOCKET, PANEL, SCREW, AU, 3P+E WAY CIRCULAR CONNECTOR RECEPTACLE 3POS PANEL connector, plastic circ, female panel recept, 3+gnd gold plt cont, screw term, black
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases	81K1474	Product Category	Circular DIN Connectors
Standard Package	50	Factory Pack Quantity	50

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85389099	Approval Agency	:CSA, GERMANISCHER LLOYDS, SEV, UL, VDE
Approval Agency Marking	UL Recognized/CSA/VDE	Material Flammability Rating	:UL94V-0

Electrical

Voltage Rating	400V	Contact Resistance	:5mohm
Current Rating (Max)	16A	Insulation Resistance	:10Mohm

Mechanical

Color	Black	Weight	0.021
Packaging	Bulk	Wire Gauge	:14AWG
Orientation	Keyed	Shell Style	Receptacle
Termination	Screw	Weight (g):	23.40000
Contact Type	Socket	Mounting Type	Panel Mount
Release Force	:30N	Angle of Throw	Straight
Connector Type	Receptacle, Female Sockets	Contact Finish	Gold
Fastening Type	Threaded	Package / Case	:Panel Plug
Connector Usage	Threaded	Insertion Angle	:-
Insertion Force	:15N	Material - Body	:Nylon (Polyamide)
Contact Material	:-	Housing Material	Polyamide
Primary Material	DIN	1st Contact Gender	:Socket
Color - Connectors	:Black	Number of Contacts	:3
Contact Termination	:Screw	Dielectric Material	Polyamide
Number of Positions	4	Shell Size - Insert	:-
Mounting Hole Diameter	0.866 "	Shell Material, Finish	Polyamide
Contact Layout, Typical	3 + 1 Ground (PE)	Mounting Panel Thickness	:31mm
Exterior Housing Material	:Polyamide 6.6/PA6	Wire Gauge or Range - mm2	:2.5mm²
1st Connector Mounting Type	:Panel	Diameter - Outside, Non-Expanded	:12.5mm

Product Info

Type	Cable Socket	Gender	:Socket
Series	:ECOMATE	Features	Screw Locking
Manufacturer	C016 Series	Product Type	Connectors
Application Specifics	Commercial

Environmental

Seal Rating	IP 67	Mating Cycles	:500
NEMA Frame Size	:IP67	Ingress Protection	IP65/67 - Dust Tight, Water Resistant, Waterproof
Operating Temperature	-40°C ~ 100°C

Documents & Media

PDF Document

Ecomate Circular Connectors

PDF Document

1719176.pdf

PDF Document

28_ecomate_052009_e.pdf

Similar Parts

C016 20H003 210 10

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE STRT BLUE SCW GLD INT ST RELF CONN MALE PLUG 3+PE GOLD BLUE 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, SCREW, AU, 3P+E WAY connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, blue Amphenol Eco-Mate 系列 3 + PE路电缆安装直向连接器插头

$105.7373

Details

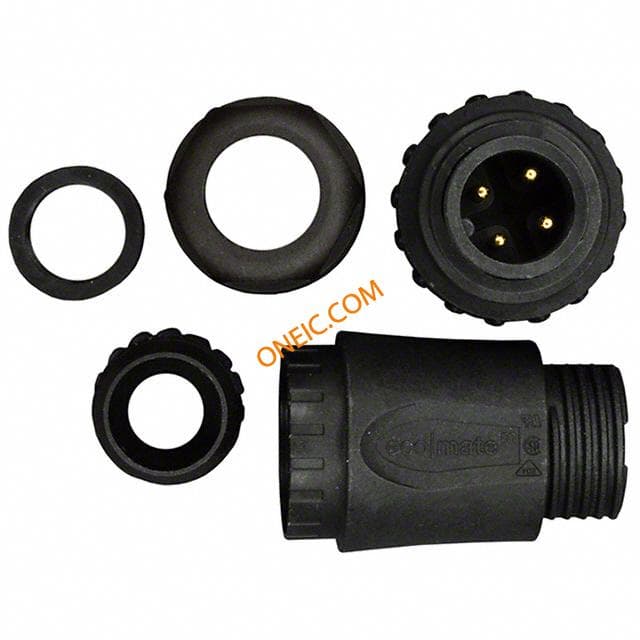

C016 20H003 200 12

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE STRT BLK SCREW GLD CONTACT CONN MALE PLUG 3+PE GOLD BLACK CONNECTOR, CIRCULAR, PLUG, 3+PE, CABLE connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, black

$94.1572

Details

C016 20H003 200 10

Amphenol Tuchel

Circular DIN Connectors 3+PE MALE STRT BLUE SCREW GLD CONTACT CONN MALE PLUG 3+PE GOLD BLUE C016 20H003 200 10 PLUG, FREE, SCREW, AU, 3P+E WAY connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, blue

$91.3920

Details

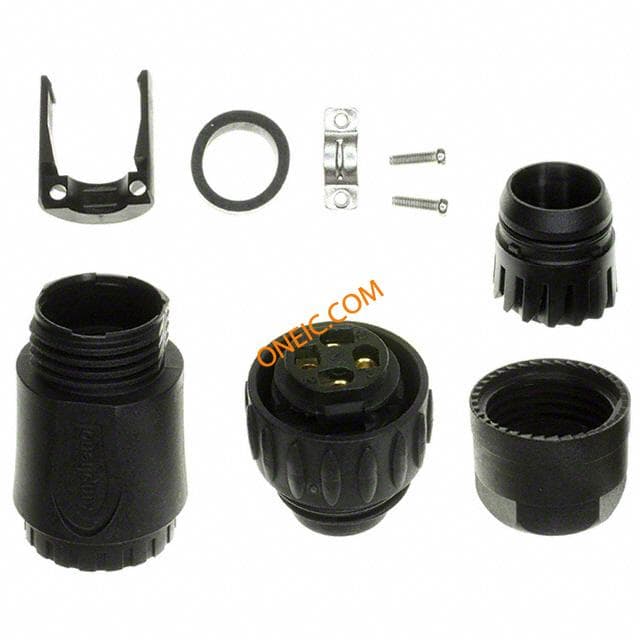

C016 20H003 210 12
